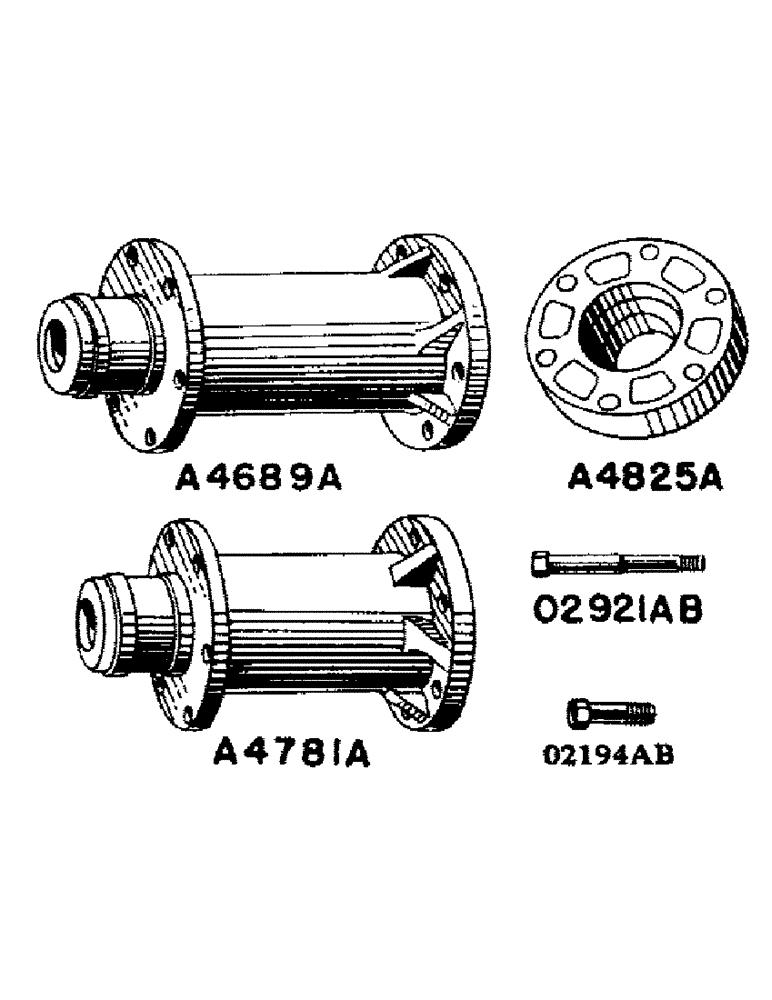

Запчасти Case IH DC-SERIES (079) - REAR WHEEL EXTENSION HUBS, MODEL "DC" TRACTOR (06) - POWER TRAIN

a4689a

A4689A

HUB, extension, 12" (Regular - for 72" or 84" centers) See 2374AA

2шт.

a4781a

A4781A

HUB, extension, 10" (Special for 68" or 80" centers) See C615AA

2шт.

a4825a

A4825A

HUB, extension, 2" (Special for flanged type axle) See A622AA

2шт.

5316a

5316A

HUB, extension (Special for England, to provide 56" tread) See 1741AA

2шт.

o2194ab

O2194AB

BOLT, extension hub (For A4689A, A4781A and 5316A hubs)

12шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/4" hexagon, light, N.F. thread

12шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" standard lock

12шт.

o2921ab

O2921AB

BOLT, extension hub (For A4825A hub)

12шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/4" hexagon, light, N.F. thread

12шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" standard lock

12шт.

o4561ab

O4561AB

BOLT, extension hub (For 5316A hub)

12шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" standard lock

12шт.

c615aa

C615AA

HUB, extension, 10" (Special - for 68" or 80" centers) Consists of 2 - A4781A hubs, 12 - O2194AB bolts, 12-3/4" hex. nuts and 12 - 3/4" lockwashers. (Machine account)

1шт.

a622aa

A622AA

HUB, extension, 2" (Special for flanged type axle) Consists of 2 - A4825A hubs, 12 - O2921AB bolts, 12 - 3/4" hex nuts and 12 - 3/4" lockwashers. (Machine account)

1шт.

1741aa

1741AA

HUB, extension (Special for England, to provide 56" tread) Consists of 2 - 5316A hubs, 12 - O2194AB bolts, 12 - O4561AB bolts, 12 - 3/4" hex nuts and 24 - 3/4" lockwashers. (Machine account)

1шт.

2374aa

2374AA

HUB, extension, 12" (Regular - for 72" or 84" centers) Consists of 2 - A4689A hubs, 12 - O2194AB bolts, 12 - 3/4" hex nuts and 12 - 3/4" lockwashers. (Machine account)

1шт.
