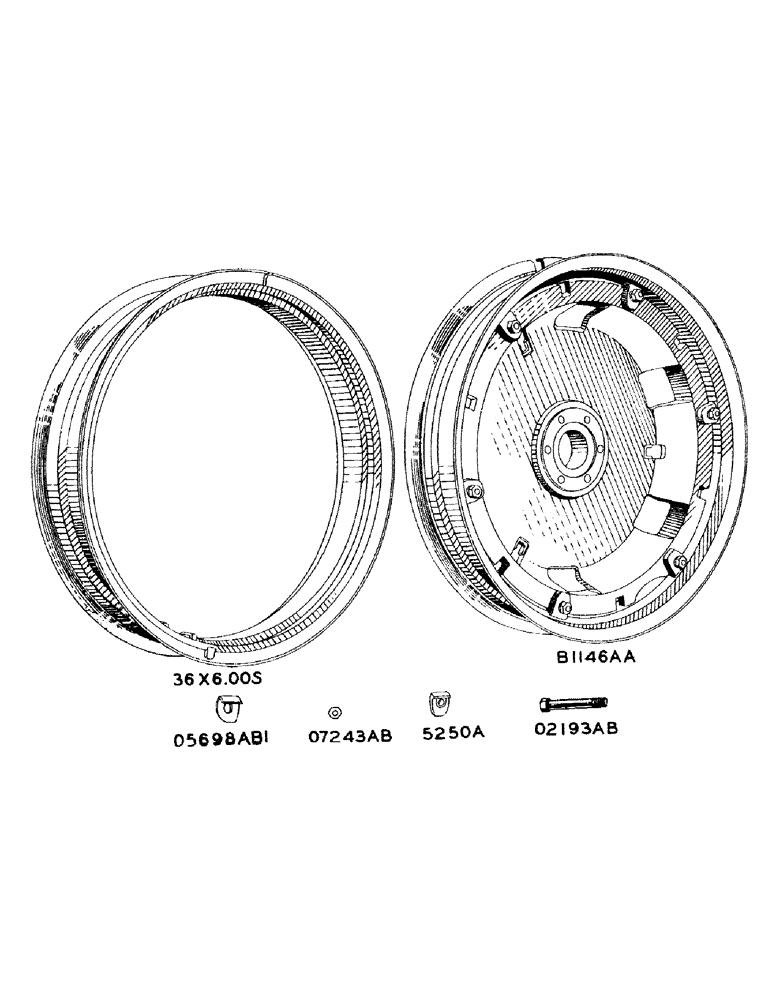

Запчасти Case IH DC-SERIES (073) - REAR WHEELS FOR PNEUMATIC FARM TIRES, FOR "DC" - "DH" (06) - POWER TRAIN

b4950a

B4950A

WHEEL, rear, for demountable rim, See B1146AA, 1634AA, 2214AA, 2216AA or 2328AA

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 5/8" x 3" machine, square head, less nut

24шт.

5250a

5250A

LUG, rear wheel locating

12шт.

o2193ab

O2193AB

BOLT, rear wheel

12шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/4" hexagon, light, N.F. thread

12шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" standard lock

12шт.

o5698ab1

O5698AB1

X

CLAMP, rear wheel rim (Goodyear no. 55)

12шт.

o7243ab

O7243AB

X

NUT, rear wheel rim stud (Goodyear no. 65)

24шт.

o7958ab

O7958AB

RIM, rear wheel, DW8-38 wide base deep well, with drivers for 2328AA (DC)

2шт.

o7959ab

O7959AB

RIM, rear wheel, DW9-38 wide base, with drivers, for 2214AA

2шт.

o7960ab

O7960AB

RIM, rear wheel, DW10-38 wide base, with drivers, for 2216AA

2шт.

nss

NSS

NOT SOLD SEPARAT

RIM, 36 x 6.00 semi-drop center, type L.T., with drive lugs. See B1146AA

2шт.

nss

NSS

NOT SOLD SEPARAT

RIM, 36 x 8.00T semi-drop center, for oversize tire, See 1634AA

2шт.

b1146aa

B1146AA

WHEEL, rear, with 36 x 6.00S semi-drop center rim, type L.T., with drive lugs

2шт.

1634aa

1634AA

WHEEL, rear, with 36 x 8.00T semi-drop center rim

2шт.

2214aa

2214AA

WHEEL, rear, with DW9-38 wide base rim

2шт.

2216aa

2216AA

WHEEL, rear, with DW10-38 wide base rim

2шт.

2328aa

2328AA

WHEEL, rear, with DW8-38 wide base deep well rim (DC)

2шт.
