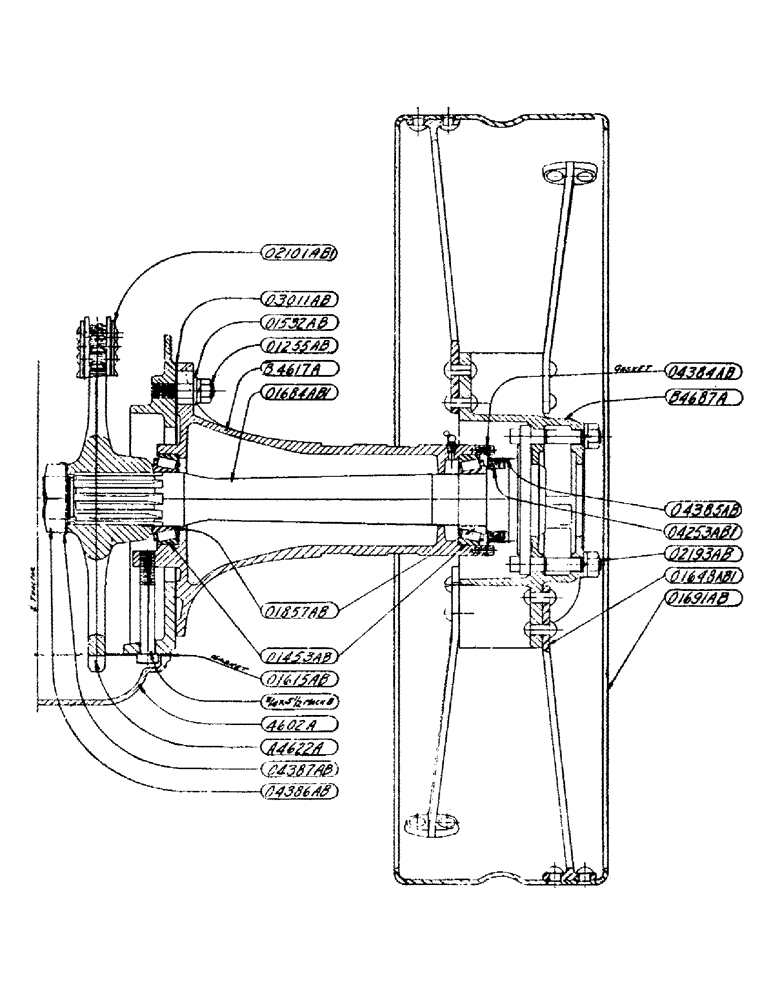

Запчасти Case IH DC-SERIES (070) - REAR AXLE ASSEMBLY, FOR "D" - "DO" TRACTORS, D, DC, DH, DO (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
b4617a
B4617A
HOUSING, rear axle, see 5331A (D, DC, DH, DO)
2шт.
nss
NSS
NOT SOLD SEPARAT
FITTING, 1/8" - 45 degrees Lincoln no. 5200 (D, DC, DH, DO)
2шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 3/4" x 5-1/2" machine, less nut (D, D, DH, DO)
2шт.
a4622a
A4622A
SPROCKET, rear axle, 38 teeth
2шт.
o4685a
O4685A
SPROCKET, rear axle, 31 teeth (Special low speed attachment) (DO, DV)
2шт.
5291a
5291A
SPROCKET, rear axle, 25 teeth (Special low speed attachment) (DO, DV)
2шт.
5331a
5331A
HOUSING, rear axle, See B4617A (DV)
2шт.
nss
NSS
NOT SOLD SEPARAT
FITTING, 1/8" - 45 degrees Lincoln no. 5200 (DV)
2шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 3/4" x 5-1/2" machine, less nut (DV)
2шт.
5366a
5366A
WRENCH, rear axle shaft lock nut, See 1929AA
1шт.
o4090a
O4090A
DOWEL, rear axle key, for O4630AB shaft (D)
2шт.
o1246ab
O1246AB
NUT, for O4630AB shaft (D)
2шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 1/4" x 2-3/4" cotter (D)
2шт.
o1255ab
O1255AB
STUD, rear axle housing
11шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/4" hexagon, light, N.F. thread
11шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 3/4" standard lock
11шт.
o1453ab
O1453AB
BEARING, CUP
CUP, rear axle bearing, Timken no. 563
4шт.
o1532ab
O1532AB
WASHER, rear axle housing stud
12шт.
o1684ab1
O1684AB1
SHAFT, rear axle, See O4591AB (D, DC, DH, DO)
2шт.
o1857ab
O1857AB
X
CONE, rear axle bearing, Timken no. 567
4шт.
o1877ab
O1877AB
STUD, clutch throwout lever
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 3/16" x 1-1/4" cotter
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 3/4" standard lock
1шт.
o2101ab1
O2101AB1
CHAIN, roller, for rear axle drive, 44 links
2шт.
o2102ab1
O2102AB1
LINK, roller, complete, for chain
1шт.
o2103ab1
O2103AB1
LINK, connecting, with plate
1шт.
o2740ab2
O2740AB2
CHAIN, roller, for 31 tooth sprocket, 40 links, (Special low speed attachment), See O4487AB1 (DO, DV)
2шт.
o3011ab
O3011AB
GASKET
between rear axle housing and transmission case
2шт.
o3827ab
O3827AB
X
KEY, for O4630AB shaft (D)
2шт.
o4253ab1
O4253AB1
SEAL
oil, rear axle
2шт.
o4384ab
O4384AB
GASKET, rear axle housing, outer end
2шт.
o4385ab
O4385AB
GUARD
dust, rear axle
2шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 5/16" x 3/4" hexagon cap, N.C. thread
12шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 5/16" standard lock
12шт.
o4386ab
O4386AB
NUT, lock, rear axle shaft
2шт.
o4387ab
O4387AB
WASHER, lock, rear axle shaft
2шт.
o4487ab1
O4487AB1
CHAIN, roller, for 25 tooth sprocket, 36 links, (Special low speed attachment), See O2740AB2 (DO, DV)
2шт.
o4630ab
O4630AB
SHAFT, rear axle, (Special for England) (D)
2шт.
o4691ab
O4691AB
SHAFT, rear axle. See O1684AB1 (DV)
2шт.
o4809ab
O4809AB
PIN, for 5366A wrench
1шт.
1929aa
1929AA
WRENCH, with pin for rear axle shaft locknut
1шт.
Выбрано товаров: 41
