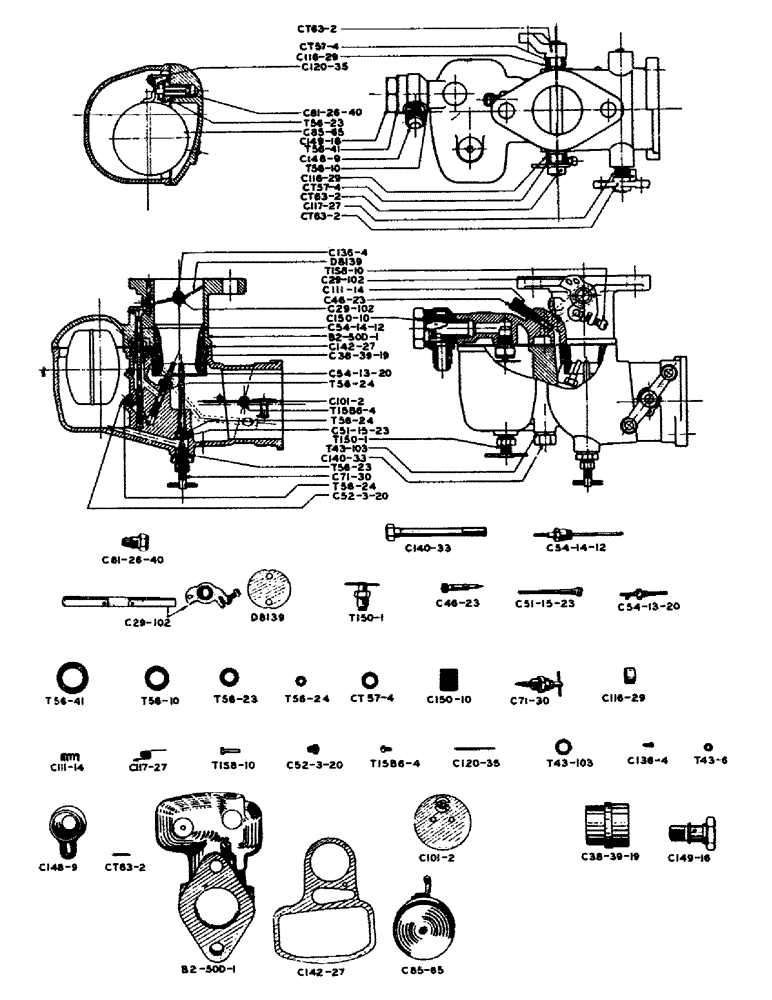

Запчасти Case IH DC-SERIES (022) - O1690AB3 ZENITH CARBURETOR, MODEL 124-1/2 TOXP - OUTLINE NO. (03) - FUEL SYSTEM

b2-50d-1

B2-50D-1

BODY, throttle upper

1шт.

b3-20b-1

B3-20B-1

BOWL, fuel

1шт.

c29-102

C29-102

SHAFT AND LEVER, throttle

1шт.

c38-39-19

C38-39-19

VENTURI

1шт.

c46-23

C46-23

SCREW, idle adjusting

1шт.

c51-15-23

C51-15-23

JET, main

1шт.

c52-3-20

C52-3-20

JET, compensator

1шт.

c54-13-20

C54-13-20

JET, cap

1шт.

c54-14-12

C54-14-12

JET, idling

1шт.

c71-30

C71-30

ADJUSTMENT, main jet passage

1шт.

c81-26-40

C81-26-40

VALVE AND SEAT ASSEMBLY, fuel

1шт.

c85-65

C85-65

FLOAT ASSEMBLY

1шт.

c101-2

C101-2

PLATE, air shutter, complete

1шт.

c108-37

C108-37

SHAFT, air shutter, assembly

1шт.

c111-14

C111-14

SPRING, idle adjusting screw

1шт.

c116-29

C116-29

RETAINER, throttle shaft packing

1шт.

c117-27

C117-27

SPRING, air shutter return

1шт.

c120-35

C120-35

AXLE, float

1шт.

c136-4

C136-4

SCREW, throttle plate

2шт.

c140-33

C140-33

BOLT, bowl to body assembly

1шт.

c142-27

C142-27

GASKET, Serial Range: bowl-body

1шт.

c148-9

C148-9

BODY, fuel union

1шт.

c149-16

C149-16

PLUG, filter

1шт.

c150-10

C150-10

SCREEN, fuel filter

1шт.

c182-810

C182-810

KIT, small parts, Includes parts as indicated

1шт.

ct57-4

CT57-4

WASHER, throttle shaft packing

2шт.

ct63-2

CT63-2

PIN, taper, air shutter and throttle shaft

2шт.

d8139

D8139

PLATE, throttle

1шт.

k543

K543

KIT, service parts

1шт.

t1s8-10

T1S8-10

SCREW, lever stop

1шт.

t15b6-4

T15B6-4

SCREW, air shutter retaining

2шт.

t43-6

T43-6

WASHER, lock, air shutter screw

2шт.

t43-103

T43-103

WASHER, lock, bowl to body bolt

1шт.

t56-10

T56-10

WASHER, fibre, union body

1шт.

t56-23

T56-23

WASHER, lower plug

1шт.

t56-23

T56-23

WASHER, fibre, fuel valve seat

1шт.

t56-24

T56-24

WASHER, fibre, compensating jet

1шт.

t56-24

T56-24

WASHER, fibre, main jet

1шт.

t56-24

T56-24

WASHER, fibre, cap jet

1шт.

t56-41

T56-41

WASHER, fibre, filter plug

1шт.

t150-1

T150-1

COCK, drain

1шт.

o889ab

O889AB

GASKET, carburetor

1шт.

01062ab1

01062AB1

ROD, choke, Serial Range: carburetor-radiator

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 3/16" x 3/4" cotter

1шт.

o1690ab3

O1690AB3

CARBURETOR, Zenith model 124 1/2 TOXP. Prior to tractor no. 4301201. Use 3391AA

1шт.

o4590ab

O4590AB

STOP, flexible choke rod

1шт.

o5077ab

O5077AB

CHOKE

flexible control. Prior to tractor no. 4400143

1шт.

o5078ab

O5078AB

CLIP, choke control and tube (On steering column) Prior to tractor no. 4400143

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" - 18 x 3/4" round head machine

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock

1шт.

o5079ab

O5079AB

CUSHION, choke control and tube. Prior to tractor no. 4400143

1шт.

3391aa

3391AA

CARBURETOR, with adapter. Consists of 1-O4990AB carburetor and 1-5392A adapter

1шт.
