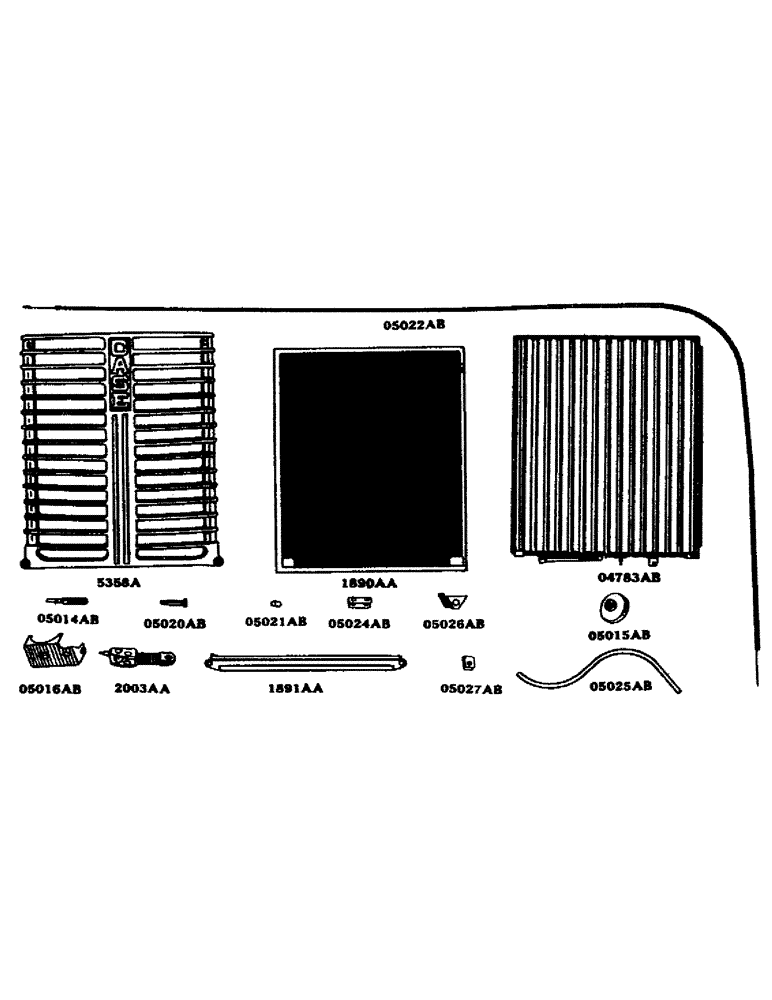

Запчасти Case IH DC-SERIES (044) - RADIATOR SHUTTER, SCREEN AND GRILLE, D, DC, DH, DO, DV (02) - ENGINE

5358a

5358A

GRILLE, radiator

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 1" hexagon head cap, N.C. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 1" round head machine, N.C. thread

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" Shakeproof lock, type 40 - no. 4018-24

2шт.

5442a

5442A

KNOB, radiator shutter adjusting screw. Tractor no. 4304668 to 4400143. See O5015AB (D, DC, DH)

1шт.

o4783ab

O4783AB

SHUTTER, radiator

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 1/2" round head machine, N.C. thread

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock

4шт.

o5014ab

O5014AB

SCREW, adjusting, radiator shutter. Prior to tractor no. 4400143 (D, DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" plain (D, DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 3/4" type 1, full length tapered groove (D, DC, DH)

1шт.

o5015ab

O5015AB

KNOB, radiator shutter adjusting screw. Prior to tractor no. 4304668. See 5442A (D, DC, DH)

1шт.

o5016ab

O5016AB

SUPPORT, radiator shutter adjusting screw. Prior to tractor no. 4400143 (D, DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 5/8" flat head machine (D, DC, DH)

1шт.

o5020ab

O5020AB

BOLT, pivot, radiator shutter arm. Prior to tractor no. 4400143. (D, DC, DH)

1шт.

o5021ab

O5021AB

PIN, radiator shutter arm. Prior to tractor no. 4400143 (D, DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/16" x 1/2" round head machine (D, DC, DH)

1шт.

o5022ab

O5022AB

CONTROL, flexible shutter. Prior to tractor no. 4400143. (D, DC, DH)

1шт.

o5024ab

O5024AB

CLIP, radiator shutter control tube (On fuel tank). Prior to tractor no. 4400143 (D, DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 3/4" round head stove (D, DC, DH)

2шт.

o5025ab

O5025AB

CONDUIT, radiator shutter control. Prior to tractor no. 4400143. (D, DC, DH)

1шт.

o5026ab

O5026AB

CLIP, radiator shutter control (At fuel tank). Prior to tractor no. 4400143 (D, DC, DH)

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 5/8" round head stove (D, DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock (D, DC, DH)

1шт.

o5025ab

O5027AB

CLIP, radiator shutter control (On side member)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 1" round head stove

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock

1шт.

o5320ab

O5320AB

SCREW, radiator shutter clamp. Tractor no. 4400143 and after

1шт.

o5321ab

O5321AB

BODY, radiator shutter clamp screw. Tractor no. 4400143 and after

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/8" hexagon jam, light, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

1шт.

o5346ab

O5346AB

RING, snap, radiator shutter shank.Tractor no. 4400143 and after

1шт.

o5347ab

O5347AB

ROD, radiator shutter control. Tractor no. 4400143 and after

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, no. 10-24 machine screw hexagon

2шт.

o5348ab

O5348AB

CONTROL, flexible shutter. Tractor no. 4400143 and after

1шт.

1890aa

1890AA

SCREEN, radiator

1шт.

1891aa

1891AA

SUPPORT, radiator screen bottom

1шт.

2003aa

2003AA

ARMS, radiator shutter. Prior to tractor no. 4400143 (D, DC, DH)

1шт.

2213aa

2213AA

SHANK AND HANDLE, with snap ring, for radiator shutter. Tractor no. 4400143 and after

1шт.
