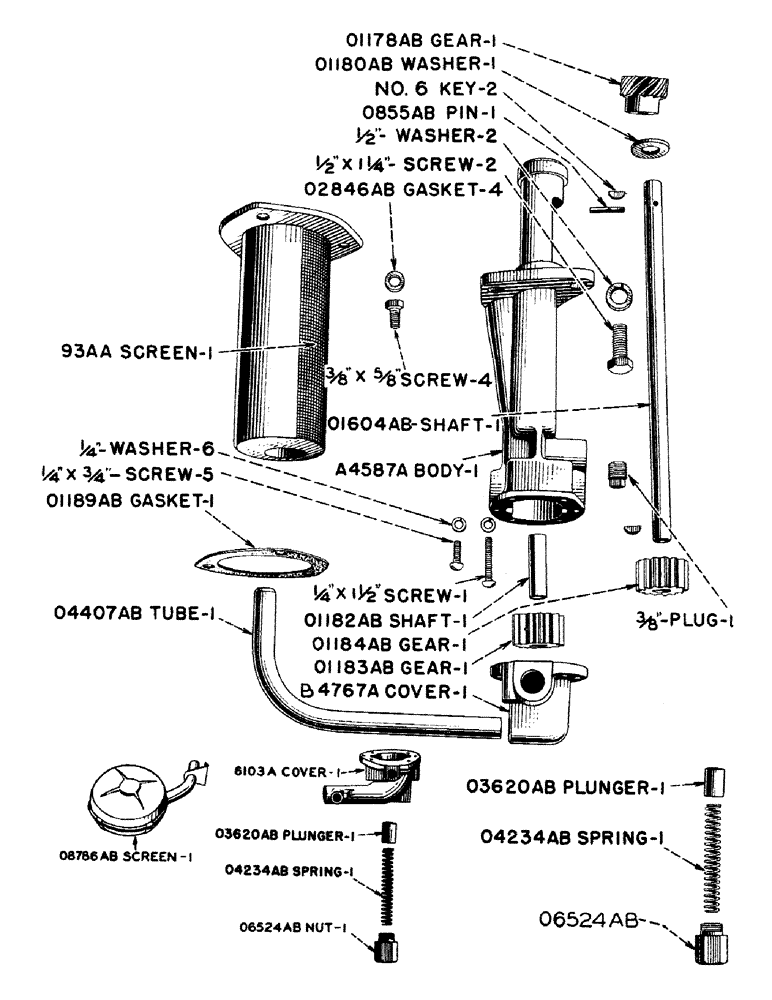

Запчасти Case IH DC-SERIES (012) - OIL PUMP (02) - ENGINE

4475a

4475A

X

HEAD - oil pump screen (Use 93AA)(Stationary type)

1шт.

a4587a

A4587A

BODY - oil pump

1шт.

nss

NSS

NOT SOLD SEPARAT

1/2" X 1-1/4" N.C. HEX HD. BOLT W/LOCKWASHER

2шт.

nss

NSS

NOT SOLD SEPARAT

3/8" SQ. HD. PIPE PLUG

1шт.

a4767a

A4767A

COVER - oil pump body (Use B4767A)

1шт.

b4767a

B4767A

COVER - oil pump body (For stationary type screen)

1шт.

nss

NSS

NOT SOLD SEPARAT

1/4" X 3/4" RHD. MACH. SCREW W/LOCKWASHER

5шт.

nss

NSS

NOT SOLD SEPARAT

1/4" X 1-3/4" RHD. MACH. SCREW W/LOCKWASHER

1шт.

6103a

6103A

COVER - oil pump body (For float-O-type screen)

1шт.

nss

NSS

NOT SOLD SEPARAT

1/4" X 3/4" N.C. HEX HD. BOLT W/LOCKWASHER

4шт.

nss

NSS

NOT SOLD SEPARAT

1/4" X 1-1/2" N.C. HEX HD. BOLT W/LOCKWASHER

2шт.

nss

NSS

NOT SOLD SEPARAT

3/8" SQ. HD. PIPE PLUG

1шт.

o855ab

O855AB

PIN - oil pump drive gear

1шт.

o1178ab

O1178AB

GEAR - oil pump drive

1шт.

nss

NSS

NOT SOLD SEPARAT

NO. 6 WOODRUFF KEY

1шт.

o1180ab

O1180AB

WASHER - thrust, oil pump drive gear

1шт.

o1182ab

O1182AB

SHAFT - stub, oil pump

1шт.

o1183ab

O1183AB

X

GEAR - oil pump, without keyway

1шт.

o1184ab

O1184AB

GEAR - oil pump, with keyway

1шт.

nss

NSS

NOT SOLD SEPARAT

NO. 6 WOODRUFF KEY

1шт.

o1189ab

O1189AB

X

GASKET - oil pump screen flange (Stationary type screen)

1шт.

o1604ab

O1604AB

SHAFT - oil pump

1шт.

nss

NSS

NOT SOLD SEPARAT

NO. 6 WOODRUFF KEY

2шт.

o2846ab

O2846AB

X

GASKET - oil pump screen cap screw (For stationary type screen)

3шт.

o3620ab

O3620AB

PLUNGER - oil pump relief

1шт.

o4234ab

O4234AB

X

SPRING - relief plunger

1шт.

o4407ab

O4407AB

TUBE - oil pump inlet (For stationary type screen)

1шт.

06524ab

06524AB

NUT - oil pump relief

1шт.

o8786ab

O8786AB

X

SCREEN - oil pump, float-O-type

1шт.

nss

NSS

NOT SOLD SEPARAT

3/32" X 1-1/2" COTTER PIN

1шт.

93aa

93AA

X

SCREEN - oil pump, stationary type

1шт.

a637aa

A637AA

PUMP - oil, assembly, less screen (For stationary type screen)

1шт.

4036aa

4036AA

PUMP - oil, less screen (For float-O-type screen)

1шт.
