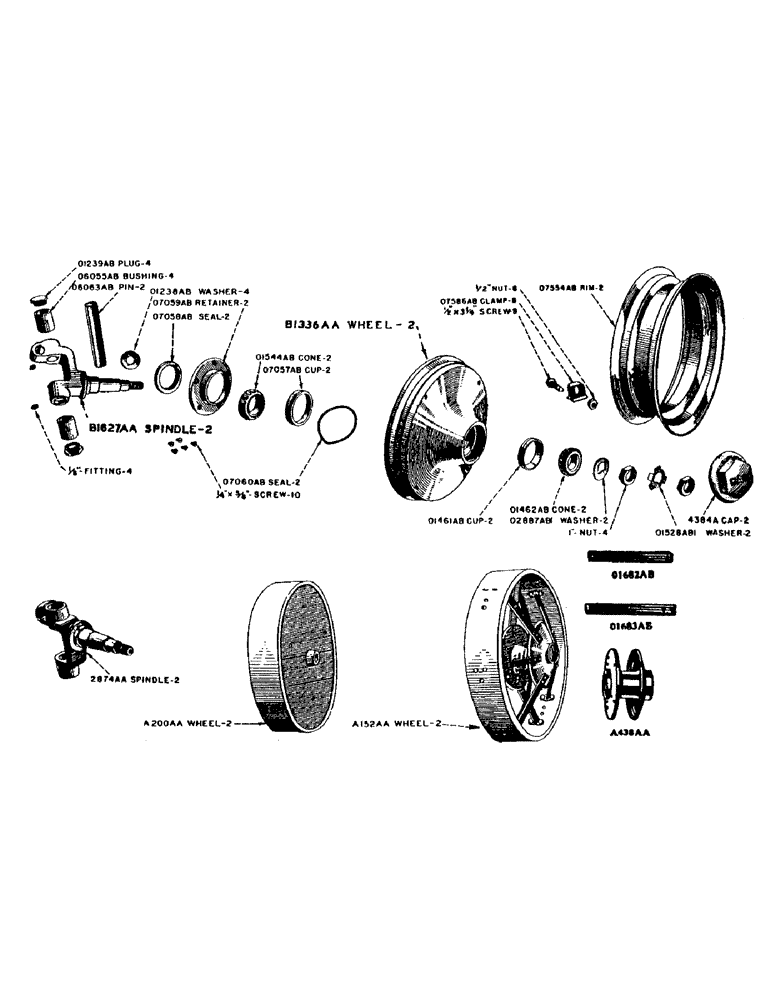

Запчасти Case IH DC-SERIES (124) - FRONT WHEELS AND SPINDLE, FOR D, DC-4, DO, DV TRACTORS (06) - POWER TRAIN

4384A

X

CAP - front hub (D, DO, DV)

2шт.

4384A

X

CAP - for 5819A hub, and steel wheels (See O4554AB) (DC-4)

2шт.

O1238AB

WASHER - thrust, front wheel spindle

4шт.

O1239AB

X

PLUG - steering spindle

4шт.

O1426AB

CONE - front wheel outer bearing (Timken no. 14125)

2шт.

O1528AB1

X

LOCKWASHER - front wheel spindle nut

2шт.

O1544AB

X

CONE - front wheel inner bearing (Timken no. 358)

2шт.

O2887AB1

X

WASHER - front wheel spindle

2шт.

O4554AB

CAP - for A5819A hub (See 4384A) (DC-4)

2шт.

O4554AB

CAP - for A5819A hub (For tractors with Eagle hitch) (D)

2шт.

O6055AB

BUSHING - front wheel spindle

4шт.

O6063AB

X

PIN - king, front axle

2шт.

O7058AB

X

SEAL - front wheel

2шт.

O7059AB

X

RETAINER - front wheel seal

2шт.

1/4" x 5/8" N.C. flat hd. mach. screw

10шт.

O7060AB

X

SEAL - front wheel retainer

2шт.

B1627AA

SPINDLE - steering, with bushings, nuts and washers (Rubber tires)

2шт.

1" hex jam nut, light, N.F. thrd.

4шт.

1/8" str. Lincoln fitting no. 5000

4шт.

B1627AA

SPINDLE - steering, with bushings, nuts and washers (Steel wheels) (DC-4, DV)

2шт.

2874AA

SPINDLE - steering, with bushings, nuts and washers (Steel wheels) (D, DO)

2шт.

1" hex jam nut, light, N.F. thrd. (D, DO)

4шт.

1/8" str. Lincoln fitting no. 5000 (D, DO)

4шт.

D4933A

WHEEL - front, for 4.50 E-16 rim (Use B1336AA) pneumatic farm tires, D, DC-4, DO, and DV tractors

1шт.

5818A

WHEEL - reversible front (See O4055TS)pneumatic farm tires, for D, DC-4, DO, DV tractors

2шт.

5/8" x 2-1/4" N.C. hex hd. cap screw with lockwasher, front wheel for pneumatic farm tires, D, DC-4, DO, DV tractors

6шт.

5818A

WHEEL - front, for 6.00 - 16 4-ply tire (For tractors with Eagle hitch) (See B1336AA) (D)pneumatic farm tires, DC-4, DO, DV tractors

2шт.

5/8" x 2-1/4" N.C. hex hd. cap screw with lockwasher (D), front wheel for pneumatic farm tires, D, DC-4, DV, DO tractors

6шт.

5819A

HUB - (Use A2989AA and O4554AB hub cap), front wheel for pneumatic farm tires, D, DC-4, DV, DO tractors

1шт.

A5819A

HUB - (Use A2989AA), front wheel for pneumatic farm tires, D, DC-4, DV, DO tractors

1шт.

O1461AB

X

CUP - front wheel hub outer bearing (Timken no. 14274), pneumatic farm tires, D, DC-4, DV, DO tractors

2шт.

O4557AB

BOLT - for O4055TS wheel (DC-4), front, for pneumatic farm tires, D, DC-4, DV, DO tractors

10шт.

O7057AB

X

CUP - front wheel hub inner bearing (Timken no. 354A), pneumatic farm tires, D, DC-4, DV, DO tractors

2шт.

O7554AB

RIM - for D4933A front wheel (4.50 E-16 full drop center rim without drive lugs) (D, DO, DV), pneumatic farm tires, DC-4 tractors

2шт.

O7586AB

X

CLAMP - for O7554AB rim (D, DO, DV), front wheel, pneumatic farm tires, DC-4 tractors

8шт.

O4055TS

WHEEL - front, steel disc type, for 6.00 - 16 4-ply tires (Special) (See 5818A) (DC-4), pneumatic farm, D, DV, DO tractors

2шт.

C1046AA

WHEEL - front, complete, for 6.00 - 16 4-ply tire (Consists of 1 - B1336AA, 4 - O7586AB, 1 - O7554AB and 4 - 1/2" x 3-1/4" N.F. hex hd. cap screws with hex nuts) (Machy. item) (D, DO, DV), DC-4 tractors

2шт.

B1336AA

WHEEL - front, with bearing cups, less rim (Consists of 1-D4933A, 1 - O1461AB and 1 - O7057AB) (See C1046AA) (D, DO, DV), pneumatic farm tires, DC-4 tractors

2шт.

1/2" x 3-1/4" N.F. hex hd. cap screw with hex nut (D, DO, DV), front wheel for pneumatic farm tires

8шт.

2989AA

HUB - (Use A2989AA and O4554AB hub cap), front wheel for pneumatic farm tires, model D, DC-4, DO, and DV tractors

1шт.

A2989AA

HUB - for 5818A front wheel, with O1461AB and O7057AB bearing cups (D, DC-4), pneumatic farm tires, D, DC-4, DO, DV tractors

2шт.

A4623A

HUB - front wheel (Use A438AA), steel, for DC-4, D, DO tractors

1шт.

A4683A

WHEEL - front (Use A200AA), steel, for D, DC-4 and DO tractors

1шт.

O1461AB

X

CUP - front wheel outer bearing (Timken no. 14274) (D, DC-4, DO), steel

4шт.

O1682AB

SPOKE - front wheel inner (D, DC-4), steel

10шт.

RIVET - 3/8" x 1" round head (D, DC-4), steel front wheel, for D, DC -4 and DO tractors

20шт.

RIVET - 3/8" x 1-1/2" round head (D, DC-4), steel front wheel, for D, DC-4 and DO tractors

20шт.

O1683AB

SPOKE - front wheel outer (D, DC-4) and DO tractors

10шт.

RIVET - 3/8" x 1" round head (D, DC-4), steel front wheels, D, DC-4, DO tractors

20шт.

RIVET - 3/8" x 1-1/2" round head (D, DC-4), steel front wheel, for D, DC-4, and DO tractors

20шт.

O7057AB

X

CUP - front wheel inner bearing (Timken no. 354A) (D, DC-4, DO), steel

4шт.

A152AA

WHEEL - front, complete with hub and cups (D, DC-4)steel, DO tractor

2шт.

A200AA

WHEEL - front, complete with disc and cups (DO), steel, for D, DC-4 tractors

2шт.

A438AA

HUB - front wheel, with bearing cups, for A152AA wheel. Consists of: 1-A4623A, 1-O1461AB and 1-O7057AB (D, DC-4), steel, DO tractors

2шт.
