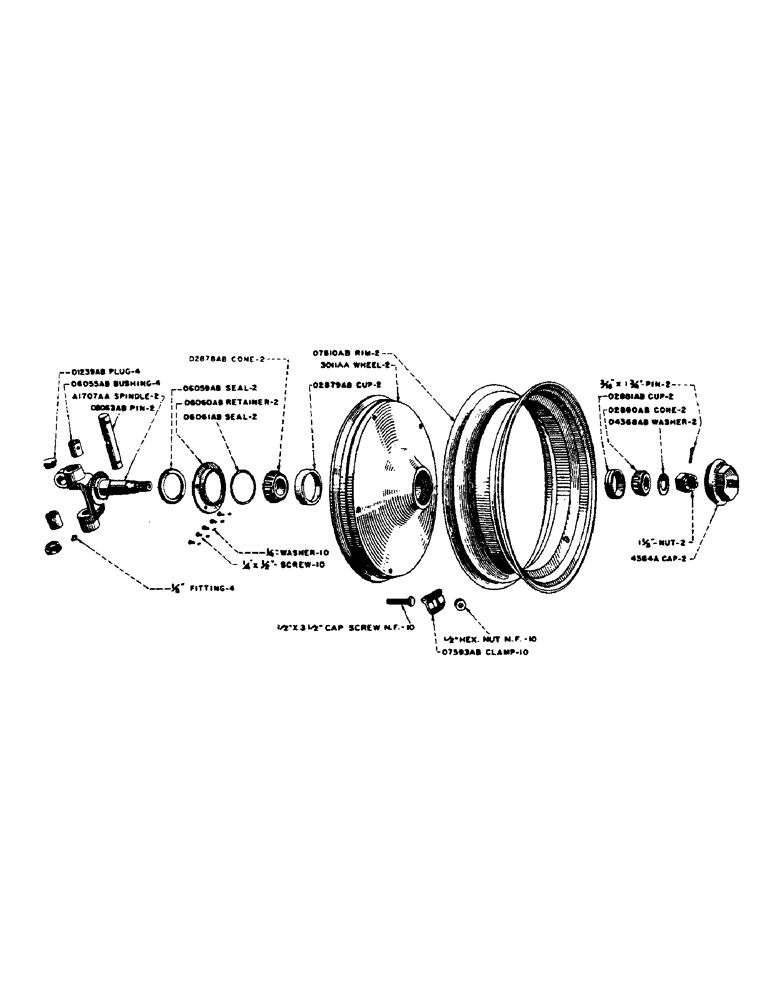

Запчасти Case IH DC-SERIES (108) - FRONT WHEEL AND SPINDLE, FOR "DC-4" RICE SPECIAL TRACTOR (06) - POWER TRAIN

O2878AB

CONE - front wheel inner bearing (Timken no. 3776)

2шт.

O2879AB

X

CUP - front wheel inner bearing (Timken no. 3720)

2шт.

O2880AB

X

CONE - front wheel outer bearing (Timken no. 2580)

2шт.

O2881AB

X

CUP - front wheel outer bearing (Timken no. 2523)

2шт.

O4368AB

X

WASHER - steering spindle

2шт.

O6055AB

BUSHING - steering spindle

4шт.

A1707AA

SPINDLE - steering, with 1 - O4368AB washer, 2 - O6055AB bushings, 2 - 1/8" Lincoln fitting #5000, 1 - 3/16" x 1-3/4" cotter pin and 1 - 1-1/8" SAE thick slotted nut

2шт.

5825A

WHEEL - (Use 3011AA), pneumatic tires, for DC-4 rice special tractor

1шт.

O2879AB

X

CUP - front wheel inner bearing (Timken no. 3720), pneumatic tires, for DC-4 rice special tires

2шт.

O2881AB

X

CUP - front wheel outer bearing (Timken no. 2523), pneumatic tires, for DC-4 rice special tires

2шт.

O6059AB

X

SEAL - front wheel, pneumatic tires, for DC-4 rice special tractors

2шт.

O6060AB

X

RETAINER - front wheel seal, pneumatic tires, for DC-4 rice special tractors

2шт.

1/4" x 1/2" N.C. rhd. mach. screw w/lockwasher, pneumatic tires, for DC-4 rice special tractors

10шт.

O6061AB

X

"O" RING - front wheel retainer seal, pneumatic tires, for DC-4 rice special tractors

2шт.

O7593AB

X

CLAMP - for O7810AB rim (5 per wheel), front, pneumatic tires, for DC-4 rice special tractors

10шт.

1/2" x 3-1/2" N.F. hex hd. cap screw w/hex nut, front wheel for pneumatis tires, for DC-4 rice special tractors

10шт.

O7810AB

X

RIM - 5.50 F - 18 full drop center, without drive lugs, for 7.50-18 tire, front wheel for pneumatic tires, DC-4 rice special tractors

2шт.

3007AA

WHEEL - front, for 7.50 - 18-4 ply tire (Consists of 1-3011AA, 5-O7593AB, 1-O7810AB and 5-1/2" x 3-1/2" N.F. hex hd. cap screw w/hex nut) (Machy. item), pneumatic tires, DC-4 rice special tractors

2шт.

3011AA

WHEEL - front, with O2879AB and O2881AB bearing cups, for 7.50 x 18-4 ply tire (See 3007AA), pneumatic tires, for DC-4 tractors

2шт.
