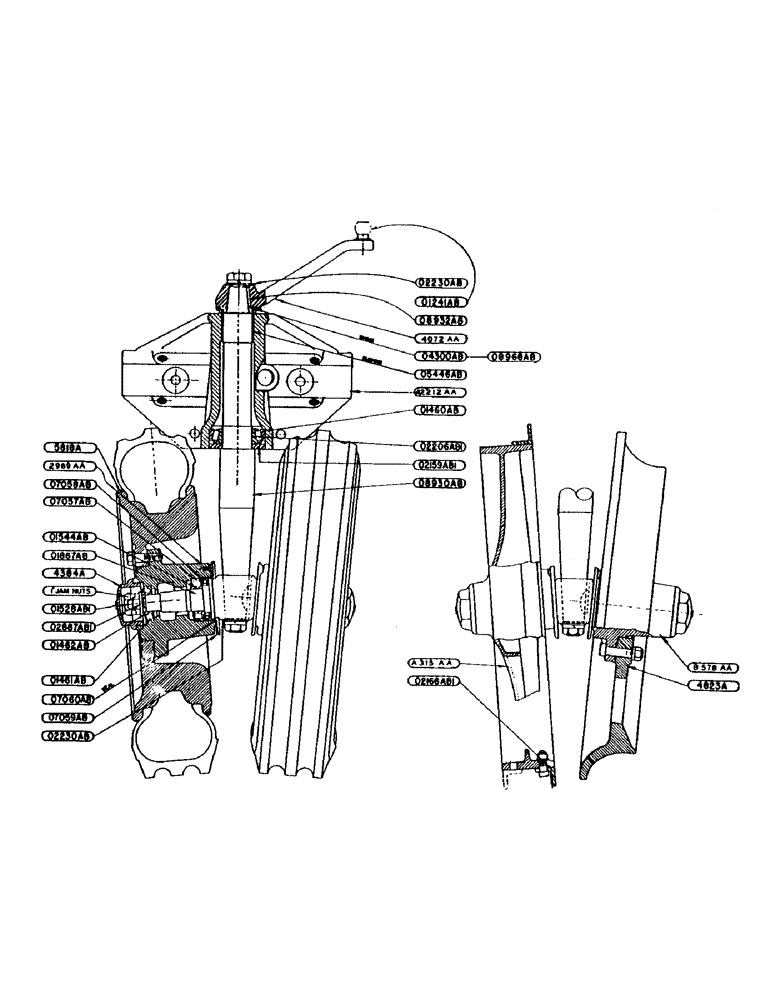

Запчасти Case IH DC-SERIES (105) - DUAL FRONT WHEEL AND SPINDLE ASSEMBLY, FOR "DC-3" AND "DC-4" TRACTORS (06) - POWER TRAIN

5818A

WHEEL - reversible front (See O4055TS)

2шт.

5/8" x 2-1/4" N.C. hex hd. cap screw with lockwasher

6шт.

5819A

HUB - (Use A2989AA and O4554AB hub cap)

1шт.

A5819A

HUB - (Use A2989AA)

1шт.

O1461AB

X

CUP - front wheel hub outer bearing (Timken no. 14274)

2шт.

O4557AB

BOLT - for O4055TS wheel

10шт.

O7057AB

X

CUP - front wheel hub inner bearing (Timken no. 354A)

2шт.

O4055TS

WHEEL - front, steel disc type, for 6.00 - 16 4 ply tires (Special for "DC-4") (See 5818A)

2шт.

2989AA

HUB - (Use A2989AA and O4554AB hub cap)

1шт.

A2989AA

HUB - front wheel, with O1461AB and O7057AB bearing cups

2шт.

5364A

WEIGHT - front wheel (Machinery item) (See 4440AA)

2шт.

3/8" x 3" N.C. hex hd. cap screw w/lockwasher

8шт.

4440AA

WEIGHTS - set of 2, for 5818A front wheel (Consists of 2 - 5364A weights with 8 - 3/8" x 3" N.C. hex hd. cap screws and lockwashers) (Machinery item)

1шт.

4384A

X

CAP - for 5819A hub and for steel wheels (See O4554AB)front spindle, gooseneck, DC tractors

2шт.

C4691A

GOOSENECK - (Use A2212AA), front spindle, DC tractors

1шт.

D4691A

GOOSENECK - (Use A2212AA), front spindle, DC tractors

1шт.

5031A

CLAMP - for C4691A gooseneck, using 3/4" studs (See 6224A), front spindle, DC tractors

2шт.

6224A

CLAMP - for D4691A gooseneck, using 7/8" studs (See 5031A), front spindle, DC tractors

2шт.

O1241AB

BALL - steering arm, front spindle, gooseneck, DC tractors

1шт.

O1460AB

BEARING, CUP

CUP - gooseneck bearing (Timken no. 453A), front spindle, DC tractors

1шт.

O1462AB

X

CONE - front wheel outer bearing (Timken no. 14125), spindle and gooseneck, DC tractors

2шт.

O1528AB1

X

LOCKWASHER - front wheel spindle nut, gooseneck, DC tractors

2шт.

O1544AB

X

CONE - front wheel inner bearing (Timken no. 358), spindle, DC tractors

2шт.

O1867AB

SPINDLE - front wheel, gooseneck, DC tractor

1шт.

1" hex light jam nut, N.F. thread (1-7/16" across flats), front spindle, gooseneck, DC tractors

4шт.

O2159AB1

COLLAR - steering spindle, gooseneck, DC tractors

1шт.

O2206AB1

CONE

- gooseneck bearing (Timken no. 462), front spindle, DC tractors

1шт.

O2230AB

WASHER - steering spindle, gooseneck, DC tractors

2шт.

O2887AB1

X

WASHER - front wheel spindle, gooseneck, DC tractors

2шт.

O4300AB

SHIM - between steering arm and gooseneck, front spindle, DC tractors

10шт.

O4554AB

CAP - for A5819A hub (See 4384A), front spindle and gooseneck, DC tractors

2шт.

O5446AB

X

BUSHING - gooseneck, front spindle, DC tractors

1шт.

O5818AB

X

STUD - for 5031A clamp (See O9490AB), front spindle and gooseneck, DC tractors

4шт.

3/4" hex nut, light, N.F. thrd., front spindle and gooseneck, for DC tractors

4шт.

3/4" std. lockwasher, front spindle and gooseneck, for DC tractors

4шт.

O7058AB

X

SEAL - front wheel, spindle and gooseneck, for DC tractors

2шт.

O7059AB

X

RETAINER - front wheel seal, spindle and goosenecks, DC tractors

2шт.

1/4" - 20 x 5/8" flat ctsk. hd. machine screw, spindle and goosenecks, DC tractors

10шт.

O7060AB

X

SEAL - front wheel retainer, spindle and gooseneck, DC tractors

2шт.

O8930AB

SPINDLE - front wheel steering, gooseneck, DC tractors

1шт.

TX Woodruff key, front spindle and gooseneck, DC tractor

1шт.

1" hex jam nut, light, N.F. thrd., front spindle and gooseneck, for DC tractors

2шт.

1" std. lockwasher, front spindle and gooseneck, DC tractor

2шт.

O8932AB

KEY - no. 25 Woodruff, for front steering arm, spindle and gooseneck, DC tractors

1шт.

O8968AB

SHIM - between steering arm and gooseneck (.005"), spindle, DC tractors

4шт.

O9490AB

STUD - for 6224A clamp (See O5818AB), front spindle and gooseneck, DC tractors

4шт.

7/8" hex nut, light, N.F. thrd., front spindle and gooseneck, DC tractors

4шт.

7/8" std. lockwasher, front spindle and gooseneck, DC tractors

4шт.

2212AA

GOOSENECK - (Use A2212AA), front spindle, for DC tractors

1шт.

A2212AA

GOOSENECK - front axle, with 2 - 6224A clamps, 1 - O5446AB bushing and 4 - O9490AB studs with nuts and lockwashers, spindle. DC tractor

1шт.

1/8" str. Lincoln fitting no. 5000, front spindle and gooseneck, DC tractors

2шт.

5/8" x 3/4" hex hd. cap screw, N.C. thread, front sindle and gooseneck, DC tractors

1шт.

5/8" x 1-3/4" hex hd. cap screw, N.C. thrd. with lockwasher, front spindle and gooseneck, DC tractors

2шт.

3/4" x 2" hex hd. cap screw, N.C. thrd. with lockwasher, front spindle and gooseneck, Dc tractors

2шт.

4072AA

ARM - steering, with ball, front spindle and gooseneck, DC tractors

1шт.
