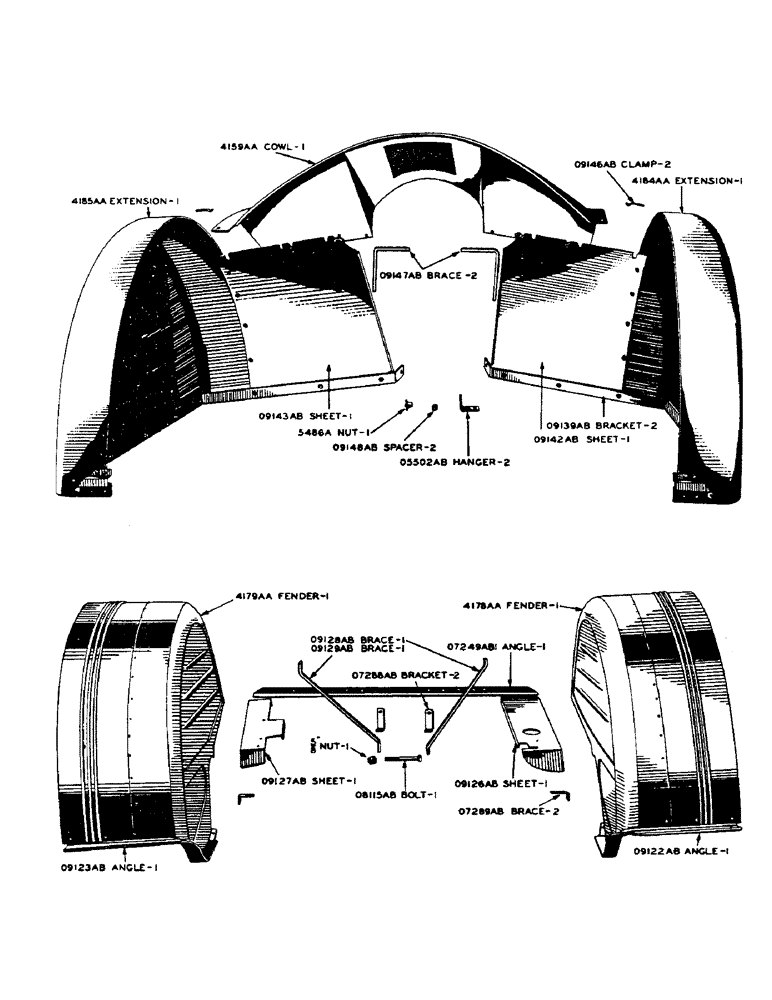

Запчасти Case IH DC-SERIES (100) - REAR WHEEL FENDERS AND EXTENSIONS, FOR "DO" TRACTORS (06) - POWER TRAIN

5486A

NUT - L.H. fender extension front bolt

1шт.

SCREW - 1/2" x 3-1/4" hex hd. cap, N.F. thread

1шт.

O5502AB

HANGER - fender extension, front

2шт.

SCREW - 3/8" x 1-1/4" hex hd. cap, N.C. thread

4шт.

O7249AB1

ANGLE - fender front support

1шт.

SCREW - 3/8" x 1" N.F. hex hd. cap, with nut and lockwasher

4шт.

SCREW - 1/2" x 1-1/4" N.F. hex hd. cap, w/nut and lockwasher

2шт.

O7286AB

SUPPORT - fender front, R.H.

1шт.

RIVET - 1/4" x 3/4" W.B. hd.

3шт.

SCREW - 3/8" x 1" N.F. hex hd. cap, with nut and lockwasher

2шт.

O7287AB

SUPPORT - fender front, L.H.

3шт.

RIVET - 1/4" x 3/4" W.B. hd.

3шт.

SCREW - 3/8" x 1" N.F. hex hd. cap, with nut and lockwasher

2шт.

O7288AB

BRACKET - fender front support angle

2шт.

SCREW - 1/2" x 1-1/4" N.C. hex hd. cap, with lockwasher

2шт.

O7289AB

BRACE - fender dust sheet

2шт.

SCREW - 1/4" x 1/2" N.F. hex hd. cap, w/nut and lockwasher

2шт.

O8115AB

BOLT - seat support and fender center brace

1шт.

NUT - 5/8" castellated, light, N.F. thread

1шт.

PIN - 1/8" x 1" cotter

1шт.

O9122AB

ANGLE - fender rear support, R.H.

1шт.

RIVET - 1/4" x 7/8" W.B. hd.

4шт.

O9123AB

ANGLE - fender rear support, L.H.

1шт.

RIVET - 1/4" x 7/8" W.B. hd.

4шт.

O9126AB

SHEET - fender dust, R.H.

1шт.

SCREW - 1/4" x 1/2" N.F. hex hd. cap, with nut

4шт.

SCREW - 1/4" x 3/4" N.F. hex hd. cap, with nut and lockwasher

2шт.

LOCKWASHER - 1/4" type 40, #4014-20 Shakeproof

4шт.

O9127AB

SHEET - fender dust, L.H.

1шт.

SCREW - 1/4" x 1/2" N.F. hex hd. cap, with nut

4шт.

SCREW - 1/4" x 3/4" N.F. hex hd. cap, with nut and lockwasher

2шт.

LOCKWASHER - 1/4" type 40, #4014-20 Shakeproof

4шт.

O9128AB

BRACE - fender, center, R.H.

1шт.

BOLT - 1/2" x 1-1/4" carr., with hex nut and lockwasher

1шт.

O9129AB

BRACE - fender, center, L.H.

1шт.

BOLT - 1/2" x 1-1/4" carr., with hex nut and lockwasher

1шт.

O9139AB

BRACKET - fender extension

2шт.

SCREW - 5/16" x 3/4" truss hd. mach., w/nut and lockwasher

16шт.

SCREW - 5/16" x 1" truss hd. mach., with nut and lockwasher

2шт.

O9142AB

SHEET - fender extension front, R.H.

1шт.

SCREW - 1/4" x 1/2" truss hd. mach., with nut and lockwasher

4шт.

O9143AB

SHEET - fender extension front, L.H.

1шт.

SCREW - 1/4" x 1/2" truss hd. mach., with nut and lockwasher

4шт.

O9146AB

CLAMP - fender, Serial Range: extension-fender

2шт.

SCREW - 5/16" x 3/4" truss hd. mach.

4шт.

O9147AB

BRACE - to fender, for fender extension and cowl (See O9259AB)

2шт.

SCREW - 3/8" x 1-1/4" N.F. hex hd. cap, with nut and lockwasher

4шт.

O9148AB

SPACER - fender extension support

2шт.

O9259AB

BRACE - to fender, for fender extension and cowl (LP-gas) (See O9147AB)

2шт.

4159AA

COWL - orchard (See 4228AA)

1шт.

SCREW - 5/16" x 5/8" truss hd. mach., with lockwasher

10шт.

4178AA

FENDER - R.H.

1шт.

4179AA

FENDER - L.H.

1шт.

4184AA

EXTENSION - fender, R.H.

1шт.

SCREW - 3/8" x 5" N.C. hex hd. cap, with nut and lockwasher

1шт.

LOCKWASHER - 5/16" Shakeproof, #4018-32 (1-1/4" O.D.)

3шт.

4185AA

EXTENSION - fender, L.H.

1шт.

SCREW - 3/8" x 5" N.C. hex hd. cap, with nut and lockwasher

1шт.

LOCKWASHER - 5/16" Shakeproof, #4018-32 (1-1/4" O.D.)

3шт.

4228AA

COWL - orchard (LP-gas) (See 4159AA)

1шт.
