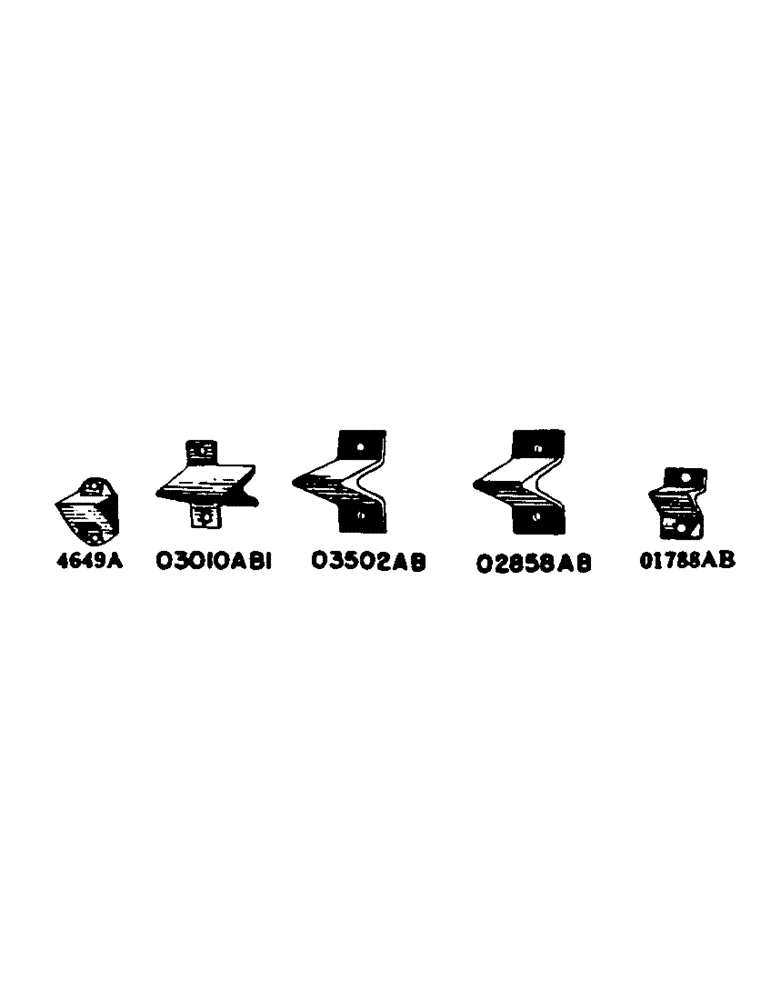

Запчасти Case IH DC-SERIES (095) - LUGS FOR STEEL REAR WHEELS, D, DC, DO (06) - POWER TRAIN

4649A

LUG - cast iron spade, 5-3/4" (See 66AA, 74AA, 737AA)

48шт.

BOLT - 5/8" x 1-3/4" mach., with hex nuts

96шт.

WASHER - 5/8" std. lock

96шт.

4955A

LUG - 4-1/4" cast iron spade, R.H. (Open wheel) (See 1109AA) (DC)

24шт.

BOLT - 3/4" x 4-1/4" mach., with hex nut (DC)

24шт.

WASHER - 3/4" std. lock (DC)

24шт.

4956A

LUG - 4-1/4" cast iron spade, L.H. (Open wheel) (See 1109AA) (DC)

24шт.

BOLT - 3/4" x 4-1/4" mach., with hex nut (DC)

24шт.

WASHER - 3/4" std. lock (DC)

24шт.

O1788AB

LUG - steel spade, 4" x 3-1/2" (Reg. for "D") (See 73AA, 131AA, 670AA)

48шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

96шт.

WASHER - 5/8" std. lock

96шт.

O2858AB

LUG - 6" steel spade (Special) (See 558AA, 559AA or 738AA)

48шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

96шт.

WASHER - 5/8" std. lock

96шт.

O3010AB

LUG - 4" x 5" steel spade, offset (Reg. for DC) (See 739AA) (DC)

36шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut (DC)

72шт.

WASHER - 5/8" std. lock (DC)

72шт.

O3376AB

CLIP - lug (Used with 4955A and 4956A lugs) (DC)

48шт.

O3502AB

LUG - 5" steel spade (See 1230AA, 1231AA or 3006AA)

48шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

96шт.

WASHER - 5/8" std. lock

96шт.

O7977AB

SPUD - square shoulder tractor wheel, for golf course or hay field (See 458AA, 640AA, 641AA or 642AA)

1шт.

66AA

LUGS - set of 5-3/4" cast iron spade. (Reg. for "DO" and special for "D" - "DC"). Consists of: 48-4649A lugs with 96-5/8" x 1-3/4" mach. bolts with nuts and lockwashers. (Machy. acct.)

1шт.

73AA

LUGS - set of 4" steel spade, for extension rims (Special) Consists of: 24-O1788AB lugs with 36-5/8" x 1-1/2" mach. bolts with nuts, 12-5/8" x 2" mach. bolts with nuts and 48-5/8" lockwashers. (Machy. acct.)

1шт.

74AA

LUGS - set of 5-3/4" cast iron spade, for extension rims (Special) Consists of: 24-4649A lugs with 36-5/8" x 1-3/4" mach. bolts with hex nuts, 12-5/8" x 2-1/4" mach. bolts with hex nuts and 48-5/8" lockwashers. (Machy. acct.)

1шт.

131AA

LUGS - set of 4" steel spade (Reg. for "D") Consists of 48-O1788AB lugs with 96-5/8" x 1-1/2" mach. bolts with nuts and lockwashers (Machy. acct.)

1шт.

458AA

SPUDS - set of, for solid type rear wheels (Special) Consists of 120-O7977AB spuds with 120-5/8" hex nuts and lockwashers (Machy. acct.) (DC)

1шт.

558AA

LUGS - set of 6" steel spade (Special) Consists of: 48-O2858AB lugs with 96-5/8" x 1-1/2" mach. bolts with hex nuts and lockwashers (Machy. acct.)

1шт.

559AA

LUGS - set of 6" steel spade, for extension rims (Special) Consists of: 24-O2858AB lugs with 36-5/8" x 1-1/2" mach. bolts with hex nuts, 12-5/8" x 2" mach. bolts with hex nuts and 48-5/8" lockwashers (Machy. acct.)

1шт.

640AA

SPUDS - set of golf course (Or steel cone lugs) special for front and rear wheels. Consists of 80-O7977AB spuds with 5/8" hex nuts and lockwashers (machy. acct.) (D, DO)

1шт.

641AA

SPUDS - set of golf course, (Or steel cone lugs) special for rear extension rims. Consists of: 30-O7977AB spuds with 5/8" hex nuts and lockwashers (machy. acct.) (D, DO)

1шт.

642AA

SPUDS - set of golf course, (Or steel cone lugs) special for front extension rims. Consists of: 20-O7977AB spuds with 5/8" hex nuts and lockwashers (Machy. acct.) (D, DO)

1шт.

670AA

LUGS - set of 4" x3-1/2" steel spade (Special for narrow rim rear wheels) Consists of: 36-O1788AB lugs with 72-5/8" x 1-1/2" mach. bolts with hex nuts and lockwashers (Machy. acct.) (DC)

1шт.

737AA

LUGS - set of 5-3/4" cast iron spade (Special for narrow rim rear wheels) Consists of: 36-4649A lugs with 72-5/8" x 1-3/4" mach. bolts with hex nuts and lockwashers (Machy. acct.) (DC)

1шт.

738AA

LUGS - set of 6" x 3-1/2" steel spade (Special for narrow rim rear wheels) Consists of: 36-O2858AB lugs with 72-5/8" x 1-1/2" mach. bolts with hex nuts and lockwashers (Machy acct.) (DC)

1шт.

739AA

LUGS - set of 4" x 5" steel spade offset (Regular) Consists of 36-O3010AB1 lugs with 72-5/8" x 1-1/2" mach. bolts with hex nuts and lockwashers (Machy. acct.) (DC)

1шт.

1109AA

LUGS - set of 4-1/4" cast iron spade (Special for open type rear wheel) Consists of: 24-4955A lugs, 24-4956A lugs, 48-O3376AB clips, 48-3/4" x 4-1/4" mach. bolts with hex nuts and lockwashers (Machy. acct.) (DC)

1шт.

1230AA

LUGS - set of 5" steel spade (Special) Consists of: 48-O3502AB lugs with 96-5/8" x 1-1/2" mach. bolts with hex nuts and lockwashers (Machy. acct.)

1шт.

1231AA

LUGS - set of 5" steel spade (Special for extension rims) Consists of: 24-O3502AB lugs with 36-5/8" x 1-1/2" mach. bolts with hex nuts, 12-5/8" x 2" mach. bolts with hex nuts and 48-5/8" lockwashers (Machy. acct.)

1шт.

3006AA

LUGS - set of 5" steel spade (Special) Consists of: 36-O3502AB lugs, and 72-5/8" x 1-1/2" mach. bolts with hex nuts and lockwashers (Machy. acct.) (DC)

1шт.

O2239AB

BAND - road, for solid type rear wheel, model DC tractor

2шт.

O2240AB

BRACKET - road band, for solid type rear wheel, model DC tractor

12шт.

BOLT - 5/8" x 1-3/4" mach., with hex nut, road bands for solid type rear wheel, model DC tractor

36шт.

WASHER - 5/8" std. lock, road bands for solid type rear wheel, model DC tractor

36шт.

341AA

BANDS - road, complete set of, for solid type rear wheel. Consists of: 2-O2239AB, 12-O2240AB, 36-5/8" x 1-3/4" mach. bolts with hex nuts, 36-5/8" lockwashers (Machy. acct.), model DC tractor

1шт.

O2309AB

BAND - road, for rear wheels model "D" and "DO" tractor

2шт.

O2310AB

SUPPORT - road bands, for rear wheels, model "D" and "DO" tractors

12шт.

BOLT - 5/8" x 1-3/4" mach., with hex nut, road bands for rear wheels, model "D" and "DO" tractors

12шт.

BOLT - 5/8" x 2" mach., with hex nut, road bands for rear wheels, model "D" and "DO" tractors

12шт.

WASHER - 5/8" std. lock,road bands for rear wheels, model "D" and "DO" tractors

24шт.

WASHER - 5/8" plain, road bands for rear wheels, model "D" and "DO" tractors

12шт.

285AA

BANDS - road, complete set of. Consists of: 2-O2309AB, 12 - O2310AB, 12-5/8" x 1-3/4" mach. bolts, with hex nuts, 12-5/8" x 2" mach. bolts with hex nuts, 24-5/8" lockwashers and 12-5/8" plain washers (Machy. acct.), rear wheels, model "D" and "DO" trract

1шт.
