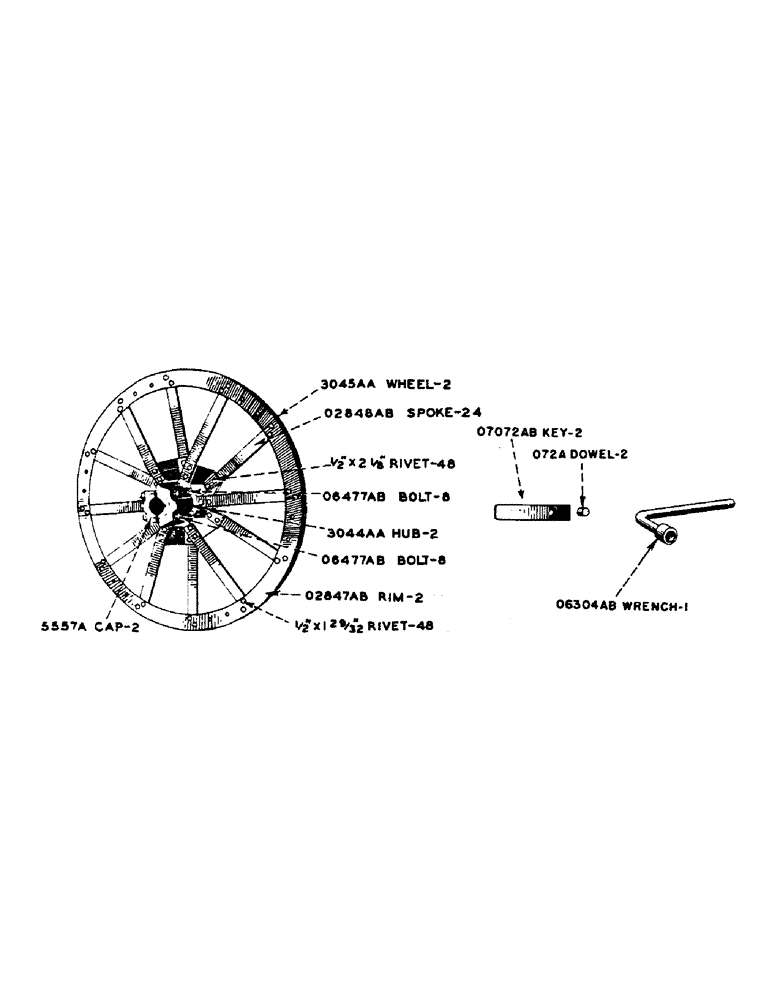

Запчасти Case IH DC-SERIES (091) - STEEL REAR WHEELS, FOR "DC" TRACTORS (06) - POWER TRAIN

5557A

CAP - rear wheel hub

2шт.

5835A

HUB - rear wheel (Use 3044AA)

1шт.

O72A

DOWEL - rear axle hub key

2шт.

O2191AB

TIRE - rear wheel (8" x 48" wheel)

2шт.

O2192AB1

SPOKE - rear wheel (8" x 48" wheel)

24шт.

RIVET - 1/2" x 1-1/8" rd. hd.

48шт.

RIVET - 1/2" x 2-1/8" rd. hd.

48шт.

O2847AB

RIM - rear wheel (Narrow rim wheel)

2шт.

O2848AB

SPOKE - rear wheel (Narrow rim wheel)

24шт.

RIVET - 1/2" x 1-29/32" rd. hd. pointed

48шт.

RIVET - 1/2" x 2-1/8" rd. hd.

48шт.

O6304AB

WRENCH - rear wheel hub socket

1шт.

O6477AB

BOLT - fastens 5557A cap to 5835A hub

8шт.

NUT - 3/4" hex, light, N.F. thread

8шт.

WASHER - 3/4" std. lock

8шт.

O7072AB

KEY - rear wheel hub

2шт.

O7158AB

X

SNAP RING - for wheel on rear axle shaft

2шт.

3044AA

HUB - rear wheel, with cap and bolts

2шт.

3045AA

PLATE

WHEEL COMPLETE - narrow rim type, rear

2шт.

3052AA

WHEEL - sliding type, 8" x 48" steel rear

2шт.
