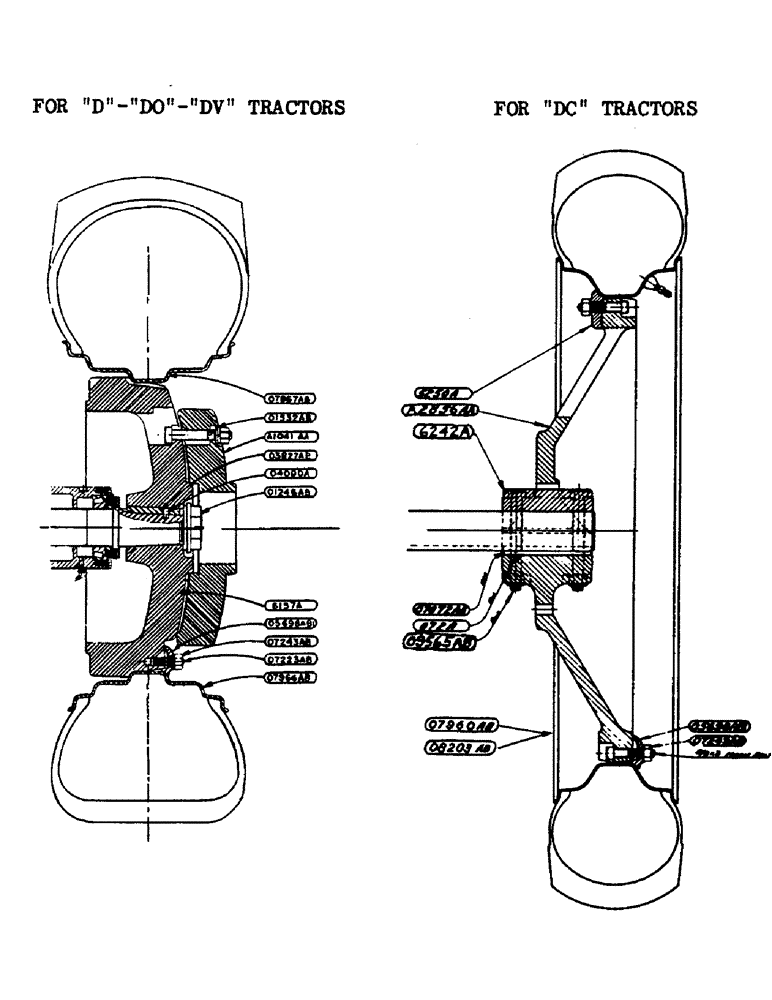

Запчасти Case IH DC-SERIES (088) - REAR WHEELS FOR PNEUMATIC FARM TIRES, FOR DC-3 AND DC-4 TRACTORS (06) - POWER TRAIN

A7299

WRENCH - socket, rear wheel hub (1-1/4" hex fits 7/8" nut) (See O6304AB)

1шт.

5250A

LUG - locating, for rear wheel

12шт.

5/8" x 3" sq. hd. mach. bolt, less nut

12шт.

5555A

WHEEL - rear (Use A2856AA)

1шт.

A5555A

WHEEL - rear (Use A2856AA)

1шт.

5557A

CAP - hub, for 5555A rear wheel (See 6242A)

2шт.

6242A

CAP - hub, for A5555A rear wheel (See 5557A)

2шт.

O5698AB1

X

CLAMP - rear wheel rim

12шт.

5/8" x 3" sq. hd. mach. bolt, less nut

12шт.

O6304AB

WRENCH - socket, rear wheel hub (Fits 3/4" nut) (See A7299)

1шт.

O6477AB

BOLT - rear wheel hub, for 5555A wheel (See O9565AB)

8шт.

3/4" N.F. light hex nut

8шт.

3/4" std. lockwasher

8шт.

O7243AB

X

NUT - rim clamp and locating lug bolts

24шт.

O7960AB

RIM - rear wheel (DW10 - 38 Goodyear wide base rim, with drivers) (For A2836AA rear wheel)

2шт.

O8203AB

RIM - rear wheel (DW11-38 Goodyear wide base rim, with drivers) (For A3661AA rear wheel)

2шт.

O9565AB

BOLT - rear wheel hub, for A5555A wheel (See O6477AB)

8шт.

7/8" N.F. light hex nut (1-1/4" hex)

8шт.

7/8" std. lockwasher

8шт.

A2836AA

WHEEL - rear, complete with DW10-38 rim for 11-38 tires (Mchy. item)

2шт.

2856AA

WHEEL - rear (Use A2856AA)

1шт.

A2856AA

WHEEL - rear, with 6242A hub cap and 4 - O9565AB bolts with nuts and lockwashers (See A2836AA and A3661AA)

2шт.

A3661AA

WHEEL - rear, complete with DW11-38 rim for 12-38 tires (Mchy. item)

2шт.

6157A

WHEEL - rear (See 4160AA, 4162AA or 4164AA), for pneumatic farm tires, Model D,DO,DV, tractors

2шт.

O5698AB1

X

CLAMP - rear wheel rim, for pneumatic farm tires, Model D, DO, DV tractors

12шт.

O7223AB

X

STUD - rear wheel rim, for pneumatic farm tires, Model D, DO,DV tractors

12шт.

O7243AB

X

NUT - rear wheel rim stud, for pneumatic farm tires, Model D, DO, DV tractors

12шт.

O7966AB

RIM - rear wheel (DW11-26 Goodyear wide base deep well rim, with drivers) (For 4160AA rear wheel) (D, DV), for pneumatic farm tires, DO tractors

2шт.

O7967AB

RIM - rear wheel (DW12-26 Goodyear wide base deep well rim, with drivers) (For 4162AA rear wheel), pneumatic farm tires, D, DO, DV tractor

2шт.

O8166AB

RIM - rear wheel (DW16-26 Goodyear wide base deep well rim, with drivers), (For 4164AA rear wheel) (DO), pneumatic farm tires, D, DV tractor

2шт.

4160AA

WHEEL - rear, with DW11-26 wide base rim, for 12-26 tires (Mchy. acct.) (D, DV), pneumatic farm tires, DO tractors

2шт.

4162AA

WHEEL - rear, with DW12-26 wide base rim, for 13-26 tires (Mchy. acct.), for pneumatic farm tires, D, DV, DO tractors

2шт.

4164AA

WHEEL - rear, with DW16-26 wide base rim, for 14-26 tires (Mchy. acct.) (DO), for pneumatic farm tires, DV, D, tractors

2шт.

5250A

LUG - locating, for rear wheel, DC-4 rice special tractor

12шт.

5/8" x 3" sq. hd. mach. bolt, less nut, rear wheels, for DC-4 rice special tractor

12шт.

6242A

CAP - rear wheel hub, for DC-4 rice special tractor

2шт.

6299A

WHEEL - rear (Use 4656AA), for DC-4 rice special tractors

1шт.

O5698AB1

X

CLAMP - rear wheel rim, for DC-4 rice special tractors

12шт.

5/8" x 3" sq. hd. mach. bolt, less nut, rear wheels, for DC-4 rice special tractors

12шт.

O7243AB

X

NUT - rim clamp and locating lug bolts, rear wheels, for DC-4 rice special tractors

24шт.

O8191AB

RIM - rear wheel, DW14-30 wide base with drivers, for 15-30 6 ply tires, DC-4 rice special tractors

2шт.

O9565AB

BOLT - rear wheel hub, for DC-4 rice special tractors

8шт.

7/8" N.F. hex nut, light, rear wheels, for DC-4 rice special tractors

8шт.

7/8" std. lockwasher, rear wheels, for DC-4 rice special tractors

8шт.

4656AA

WHEEL - rear, with hub cap and bolts, for 15-30 6 ply tires (See 4657AA) DC-4 rice special tractor

2шт.

4657AA

WHEEL - rear, complete, for 15-30 6 ply tires (Consists of 1 - 4656AA, 6 - 5250A, 6 - O5698AB1, 12 - O7243AB, 1 - O8191AB and 12 - 5/8" x 3" sq. hd. mach. bolts less nuts) (Machinery item) DC-4 rice special tractors

2шт.
