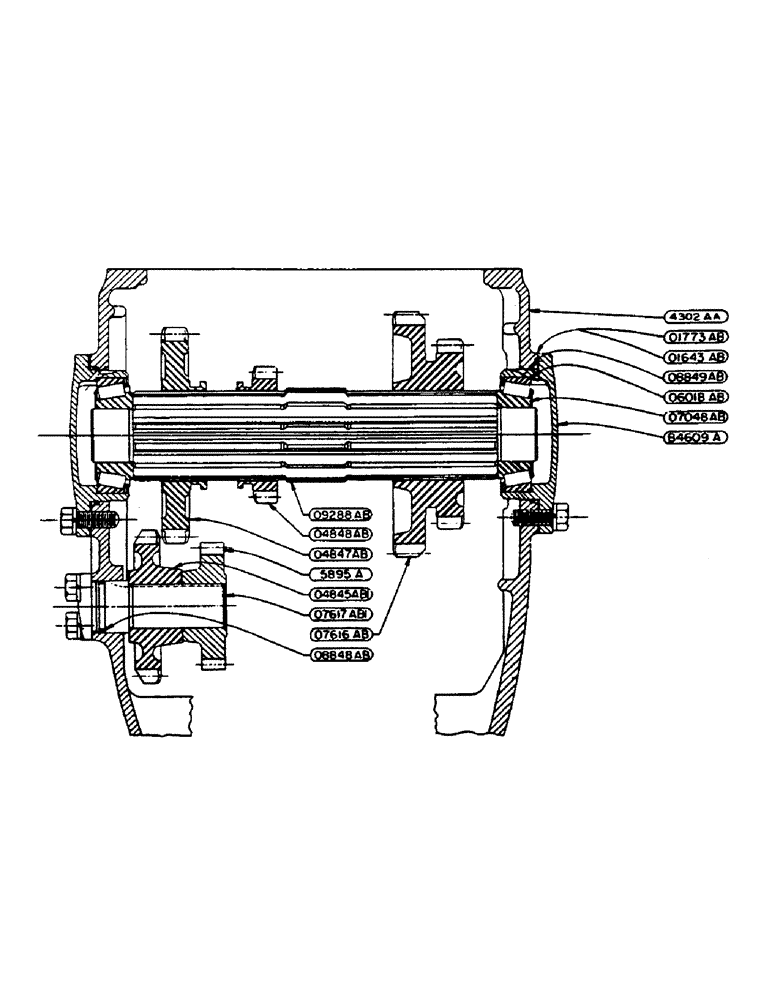

Запчасти Case IH DC-SERIES (074) - SLIDING GEAR SHAFT ASSEMBLY, D, DC, DO, DV (06) - POWER TRAIN

B4609A

CARRIER - sliding gear shaft bearing

2шт.

SCREW - 1/2" x 1-1/2" hex hd. cap, N.C. thread

6шт.

WASHER - 1/2" std. lock

6шт.

5895A

GEAR - transmission oil thrower

1шт.

O1643AB

SHIM - bearing carrier, thick (No. 30 gauge)

5шт.

O1773AB

SHIM - bearing carrier, thin (.005")

5шт.

O4845AB1

GEAR - reverse idler (23 teeth)

1шт.

O4847AB

GEAR - second and reverse sliding (33 teeth)

1шт.

O4848AB

GEAR - fourth speed sliding (20 teeth)

1шт.

O6018AB

CUP

- bearing, sliding gear shaft (Timken no. 33821)

2шт.

O7048AB

CONE - bearing, sliding gear shaft (Timken no. 33885)

2шт.

O7616AB

GEAR - first and third sliding (29-39 teeth) (See O9364AB)

1шт.

O7617AB1

STUD - reverse idler gear

1шт.

SCREW - 1/2" x 1" hex hd. cap, N.C. thread

2шт.

WASHER - 1/2" std. lock

2шт.

O8848AB

X

"O" RING - reverse idler gear stud

1шт.

O8849AB

X

"O" RING - sliding gear shaft bearing carrier

2шт.

O9288AB

SHAFT - sliding gear

1шт.

O9364AB

GEAR - first and third sliding (27-39 teeth) (Special for 6 M.P.H. third speed) (See O7616AB) (See note) (DC)

1шт.
