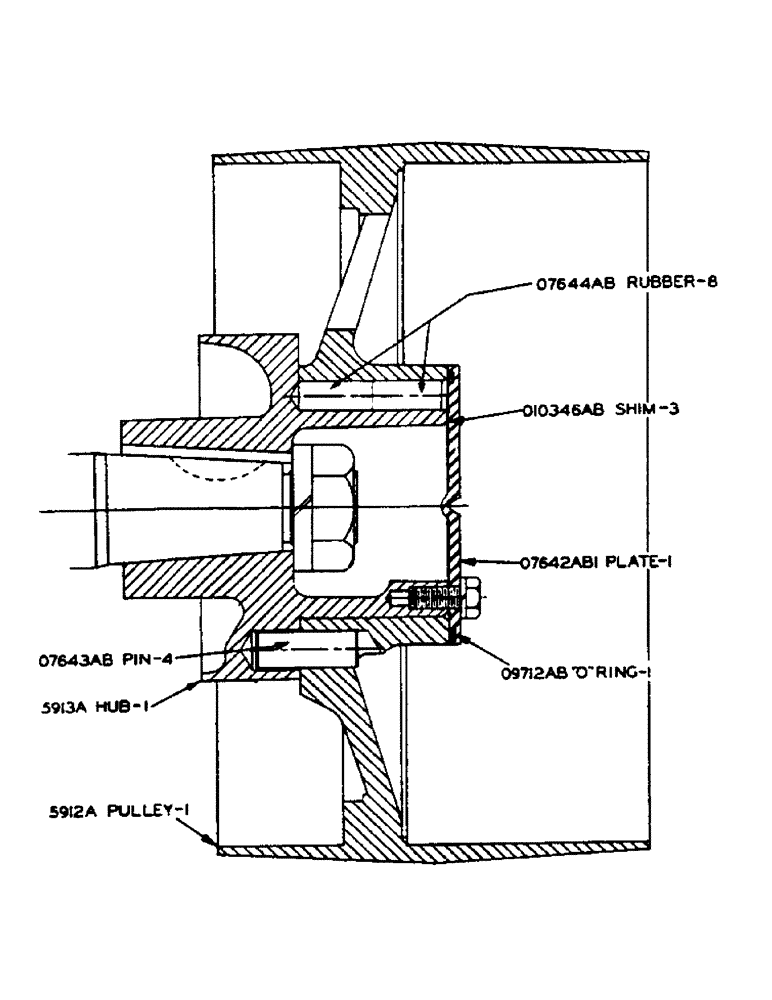

Запчасти Case IH DC-SERIES (073) - RESILIENT BELT PULLEY, DC-3 AND DC-4 (06) - POWER TRAIN

5912A

PULLEY - belt (12-1/4" dia. x 7-1/4" fac) (See 3362AA)

1шт.

5913A

HUB - belt pulley

1шт.

O7642AB

PLATE - (Use O7642AB1)

1шт.

O7642AB1

PLATE - belt pulley

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

3/8" x 7/8" N.c. hex hd. cap screw w/lockwasher

4шт.

O7643AB

PIN - belt pulley driving

4шт.

O7644AB

RUBBER - belt pulley

8шт.

O9712AB

X

"O" RING - for O7642AB1 plate

1шт.

O10346AB

SHIM - belt pulley (.005" thick)

3шт.

3362AA

PULLEY - resilient belt, complete (Consists of 1 - 5912A, 1 - 5913A, 1 - O7642AB1, 4 - O7643AB, 8 - O7644AB, 1 - O9712AB, 3 - O10346AB, 1 - 1/8" #5000 fitting and 4-3/8" x 7/8" N.C. cap screws w/lockwashers)

1шт.
