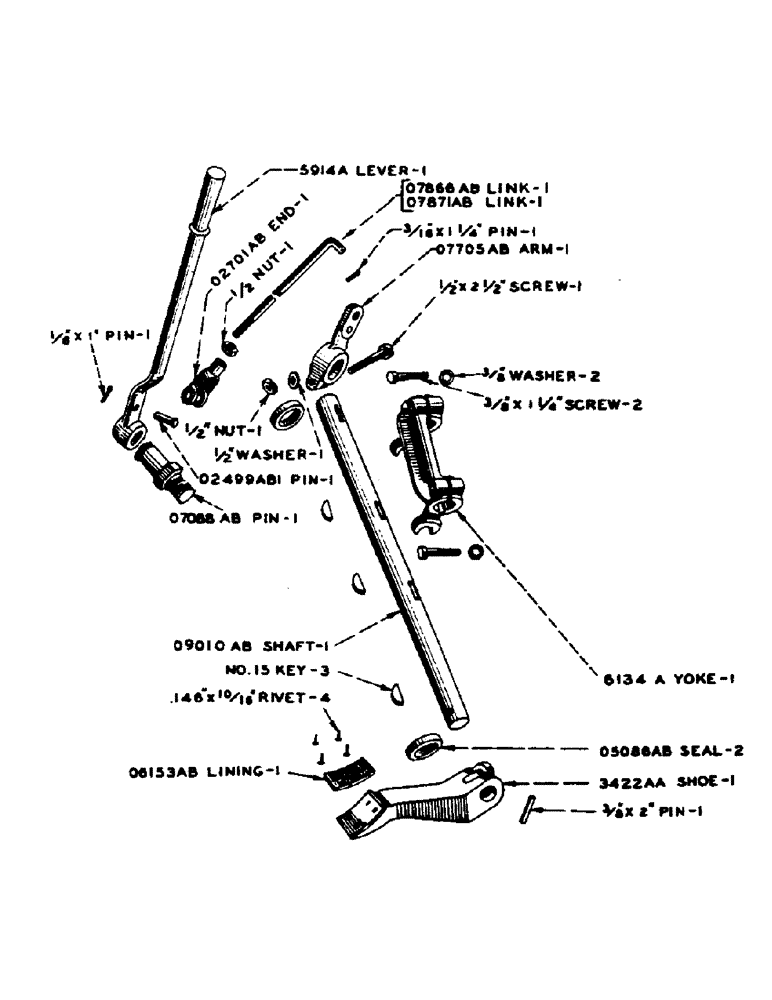

Запчасти Case IH DC-SERIES (064) - CLUTCH THROWOUT PARTS, FOR HAND OPERATED CLUTCH, D, DC, DO, DV (06) - POWER TRAIN

5914A

LEVER - hand, clutch throwout

1шт.

FITTING - 1/8" str., Lincoln no. 5000

1шт.

5916A

SHOE - belt pulley brake (Use 3422AA)

1шт.

6134A

YOKE - clutch throwout

1шт.

SCREW - 3/8" x 1-1/4" hex hd. cap, N.C. thread

2шт.

WASHER - 3/8" std. lock

2шт.

O2499AB1

X

PIN - throwout link yoke end

1шт.

PIN - 1/8" x 1" cotter

1шт.

O2701AB

X

END - throwout link yoke

1шт.

O5086AB

X

OIL SEAL - clutch throwout shaft

2шт.

O6152AB

SNAP RING - clutch hand lever stud

1шт.

O6153AB

X

LINING - belt pulley brake shoe

1шт.

RIVET - .146" x 10/16" brass tubular countersunk, no. 2561

4шт.

O7088AB

X

STUD - clutch throwout hand lever

1шт.

WASHER - 3/4" std. lock

1шт.

O7705AB

ARM - clutch throwout

1шт.

SCREW - 1/2" x 2-1/2" hex hd. cap, N.F. thread

1шт.

NUT - 1/2" hex, light, N.F. thread

1шт.

WASHER - 1/2" std. lock

1шт.

O7866AB

LINK - clutch throwout (DO, DV)

1шт.

NUT - 1/2" hex jam, light, N.F. thread (DO, DV)

1шт.

PIN - 3/16" x 1-1/4" cotter (DO, DV)

1шт.

O7871AB

LINK - clutch throwout (D, DC)

1шт.

NUT - 1/2" hex jam, light, N.F. thread (D, DC)

1шт.

PIN - 3/16" x 1-1/4" cotter (D, DC)

1шт.

O9010AB

SHAFT - clutch throwout

1шт.

KEY - no. 15 Woodruff

3шт.

PIN - 3/8" x 2" type 5 groove

1шт.

3422AA

SHOE - belt pulley brake, with lining and 2-3/8" x 1-1/2" flat point set screws and jam nuts

1шт.
