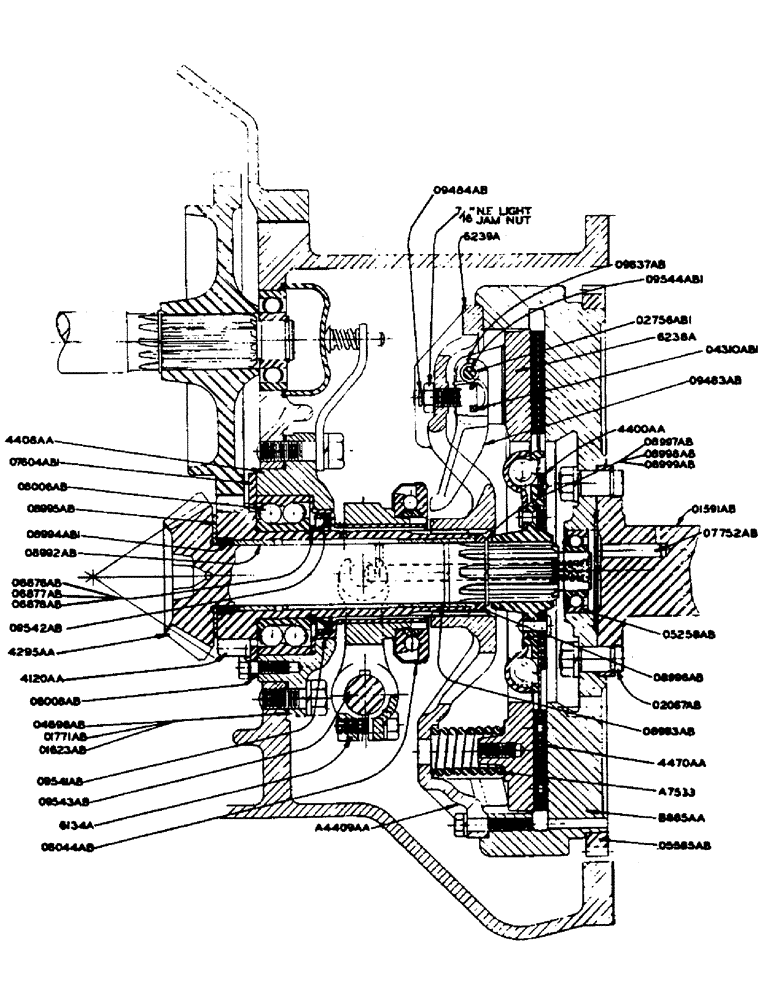

Запчасти Case IH DC-SERIES (061) - ENGINE CLUTCH ASSEMBLY, FOOT OPERATED (06) - POWER TRAIN

A7533

SPRING, clutch pressure (Heavy - painted red)

15шт.

6238A

PLATE - clutch pressure

1шт.

6239A

PLATE - clutch cover

1шт.

O2064AB

PIN - to spread engine and transmission (See 139AA)

2шт.

3/16" X 1-1/4" COTTER PIN

8шт.

O2756AB1

SPRING - lock, clutch lever adjusting screw

3шт.

O4310AB1

X

BLOCK - clutch release lever

3шт.

O9342AB

BAR - clutch adjusting

1шт.

O9483AB

LEVER - clutch release

3шт.

O9484AB

X

SCREW - adjusting, clutch release lever

3шт.

7/16" N.F. hex. jam nut

3шт.

O9540AB

SPRING - clutch pressure, regular (Use A7533 heavy springs in sets of 15 which are painted red)

1шт.

O9544AB1

PIN - clutch release lever

3шт.

O9637AB

X

"E" RING - retaining, for O9544AB1 release lever pin

6шт.

O10321AB

RIVET

- clutch facing (9/64" x 3/8" flat hd.)

24шт.

139AA

PINS - set of spreader, to spread engine and transmission (Consists of 2 - O2064AB pins and 8 - 3/16" x 1-1/4" cotter pins)

1шт.

4400AA

PLATE - clutch driving, with facings

1шт.

4409AA

CLUTCH COMPLETE (Use A4409AA)

1шт.

A4409AA

CLUTCH COMPLETE - less driving plate

1шт.

5/16" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

9шт.

4470AA

FACING

S - set of clutch, with rivets, for 4400AA driving plate (Consists of 2 facings and 24 - O10321AB rivets)

1шт.
