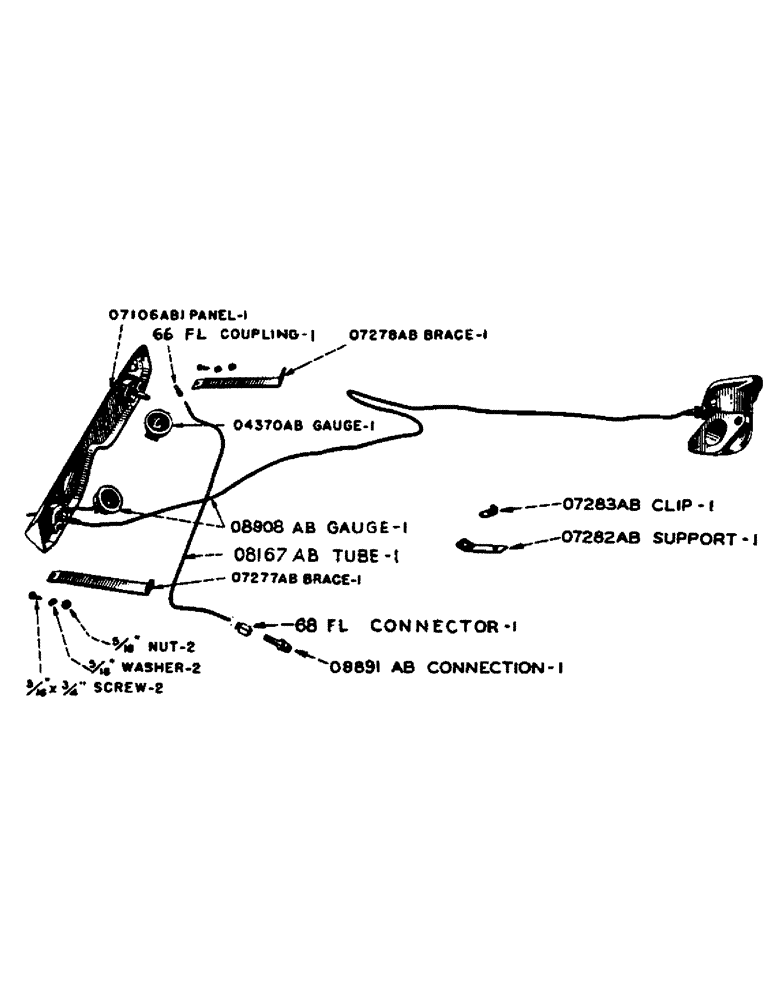

Запчасти Case IH DC-SERIES (039) - INSTRUMENT PANEL, D, DC, DO, DV (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
O4370AB
X
GAUGE - oil pressure (Regular) (See O7732AB)
1шт.
COUPLING - Imperial Flex female, #66FL, 3/16" tube size x 1/8" P.T.
1шт.
SLEEVE - rubber, #60FL - 3/16" for #66FL
1шт.
NUT - #61FL - 3/16" for #66FL
1шт.
O7106AB1
PANEL - instrument (See O8941AB or O8962AB)
1шт.
SCREW - 5/16" x 3/4" rd. hd. mach., N.C. thread
2шт.
NUT - 5/16" hex, N.C. thread
2шт.
WASHER - 5/16" std. lock
2шт.
O7277AB
BRACE - instrument panel, R.H.
1шт.
SCREW - 5/16" x 3/4" rd. hd. mach., N.C. thread
1шт.
NUT - 5/16" hex, N.C. thread
1шт.
WASHER - 5/16" std. lock
1шт.
O7278AB
BRACE - instrument panel, L.H.
1шт.
SCREW - 5/16" x 3/4" rd. hd. mach., N.C. thread
1шт.
NUT - 5/16" hex, N.C. thread
1шт.
WASHER - 5/16" std. lock
1шт.
O7281AB
CLIP - oil gauge tube
1шт.
SCREW - 1/2" x 3/4" hex hd. cap, N.C. thread
1шт.
O7282AB
SUPPORT - oil gauge tube
1шт.
O7283AB
CLIP - oil gauge tube support
1шт.
BOLT - 1/4" x 3/4" rd. hd. stove
1шт.
WASHER - 1/4" std. lock
1шт.
NUT - 1/4" hex, N.C. thread
1шт.
O7732AB
GAUGE - oil pressure (Metric - for export only) (See O4370AB)
1шт.
O7735AB
GAUGE - temperature (Centigrade - for export only) (See O8908AB)
1шт.
O8167AB
TUBE - oil pressure gauge
1шт.
O8891AB
CONNECTION - oil gauge tube
1шт.
CONNECTOR - 3/16" tube size x 1/8" P.T. Imperial Flex #68FL
1шт.
O8895AB
CLIP - conduit
2шт.
SCREW - 1/4" x 1/2" rd. hd. mach., N.C. thread
2шт.
WASHER - 1/4" std. lock
2шт.
O8908AB
ELECTRICAL GAUGE
GAUGE - temperature, complete with tube (Fahrenheit) (See O7735AB)
1шт.
O8941AB
PANEL - instrument (LP-gas) (See O7106AB1) (D, DC)
1шт.
O8962AB
PANEL - instrument (LP-gas) (See O7106AB1) (DO)
1шт.
SCREW - 1/2" x 1" hex hd. cap, N.F. thread (DO)
2шт.
NUT - 1/2" hex, light, N.F. thread (DO)
2шт.
WASHER - 1/2" std. lock (DO)
2шт.
O9249AB
PLATE - support, instrument panel (LP-gas) (DO)
1шт.
SCREW - 1/2" x 1" hex hd. cap, N.C. thread (DO)
2шт.
WASHER - 1/2" std. lock (DO)
2шт.
4042AA
CONDUIT ASSEMBLY
1шт.
Выбрано товаров: 41
