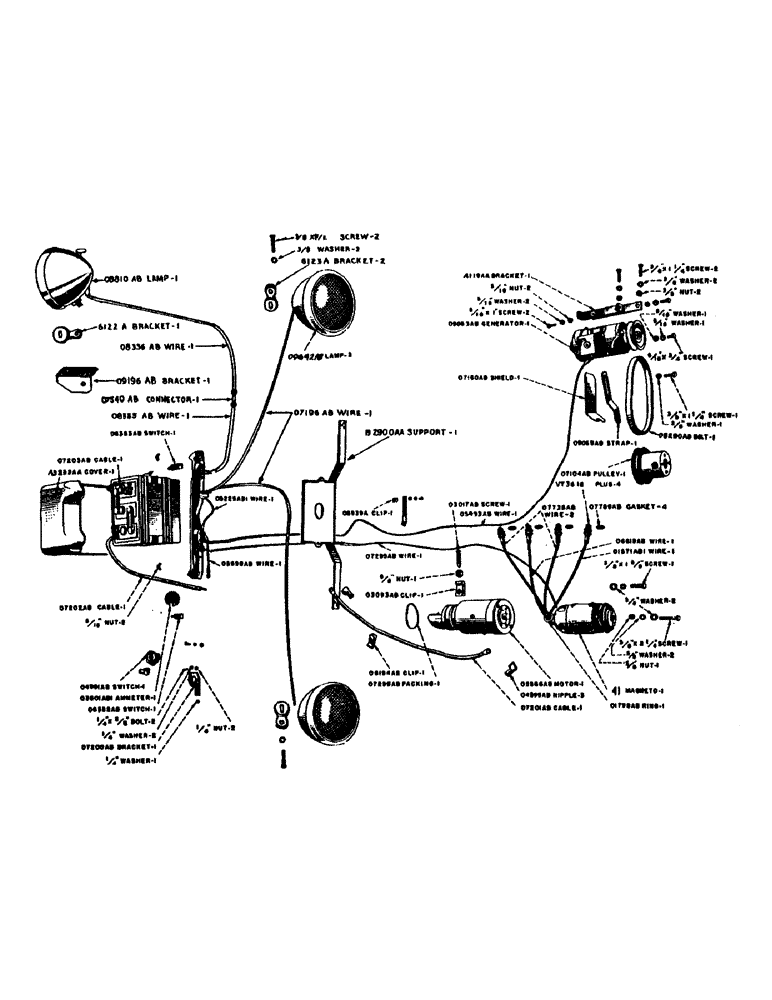

Запчасти Case IH DC-SERIES (034) - ELECTRIC LIGHTING AND STARTING PARTS, GENERATOR, D, DC, DO, DV (04) - ELECTRICAL SYSTEMS

O1798AB

RING - ignition cable (Rubber)

1шт.

O3601AB1

X

AMMETER

1шт.

O5225AB1

WIRE - ammeter to light switch (See O6359AB)

1шт.

O5493AB

WIRE -, Serial Range: generator-ammeter

1шт.

O5598AB

WIRE - ammeter to starter switch

1шт.

O6359AB

WIRE - ammeter to light switch (LP-gas) (See O5225AB1) (D, DC, DO)

1шт.

O7104AB

X

PULLEY - generator drive

1шт.

O7160AB

SHIELD - generator

1шт.

O8280AB

BELT

Generator

1шт.

O9063AB

GENERATOR - (Auto-Lite no. GHD6001C) (See note)

1шт.

O9069AB

STRAP - generator belt adjusting

1шт.

SCREW - 5/16" x 3/4" hex hd. cap, N.C. thread

1шт.

SCREW - 3/8" x 1-1/4" hex hd. cap, N.C. thread

1шт.

WASHER - 5/16" std. lock

1шт.

WASHER - 5/16" plain

1шт.

4119AA

BRACKET - generator, with strap

1шт.

SCREW - 5/16" x 1" hex hd. cap, N.F. thread

2шт.

SCREW - 3/8" x 1-1/4" hex hd. cap, N.F. thread

2шт.

NUT - 5/16" hex, light, N.F. thread

2шт.

NUT - 3/8" hex, light, N.F. thread

2шт.

WASHER - 5/16" std. lock

2шт.

WASHER - 3/8" std. lock

2шт.

O3017AB

SCREW - starting motor

1шт.

NUT - 5/8" hex jam, N.C. thread, starting motor

1шт.

O3093AB

CLIP - starting cable to cylinder block, motor

1шт.

A21753

CAP

NIPPLE - starting terminal, motor

3шт.

O4981AB

SWITCH

- starting motor

1шт.

BOLT - 1/4" x 5/8" rd. hd. stove, with nut, starting motor

2шт.

WASHER - 1/4" std. lock, starting motor

2шт.

O5566AB

MOTOR - starting. (Auto-Lite no. MAB4105)

1шт.

O5598AB

WIRE - starter switch to ammeter, motor

1шт.

O6194AB

CLIP - starting switch to starting motor cable

1шт.

O6352AB

SWITCH

- magneto ground, starting motor

1шт.

O7200AB

BRACKET - starting switch, motor

1шт.

O7201AB

CABLE - starter switch to starting motor

1шт.

O7202AB

CABLE - battery to starter switch (See O8948AB), motor

1шт.

O7299AB

PACKING

- starting motor, rubber

1шт.

O8948AB

CABLE - battery to starting switch (LP-gas) (See O7202AB) (D, DC), motor

1шт.

BATTERY - storage (17 plate, 6 volt) (Not furnished by J.I. Case Co.)

1шт.

O7202AB

CABLE - battery to starter switch (See O8948AB)

1шт.

O7203AB

CABLE - battery ground

1шт.

SCREW - 3/8" x 3/4" hex hd. cap, N.F. thread, battery

1шт.

WASHER - 3/8" std. lock, battery

1шт.

NUT - 3/8" hex, light, N.F. thread, battery

1шт.

O7420AB

X

PAD - rubber, for battery

4шт.

O7532AB

CLIP - battery ground cable (LP-gas) (DO)

1шт.

O8333AB

GROMMET - rubber, in instrument panel, for starter cable (LP-gas) (D, DC), battery

1шт.

O8948AB

CABLE - battery to starting switch (LP-gas) (See O7202AB) (D, DC)

1шт.

B2900AA

SUPPORT - battery, and lamp bracket (See 4075AA) (DC)

2шт.

SCREW - 1/2" x 3/4" hex hd. cap, N.C. thread (DC), battery

2шт.

WASHER - 1/2" std. lock (DC), battery

2шт.

B3012AA

SUPPORT - battery (DO)

1шт.

SCREW - 1/2" x 1-3/4" hex hd. cap, N.C. thread (DO), battery

1шт.

A3233AA

COVER - battery

1шт.

NUT - 5/16" wing, N.C. thread (Cadmium plated), battery

2шт.

4024AA

SUPPORT - battery (See 4075AA) (D, DV)

1шт.

SCREW - 1/2" x 3/4" hex hd. cap, N.C. thread (D, DV), battery

2шт.

WASHER - 1/2" std. lock (D, DV), battery

2шт.

4075AA

PLATE - battery support, and bracket (LP-gas) (See B2900AA or 4024AA) (D, DC)

1шт.

6122A

X

BRACKET - front and rear lamps (D)

3шт.

SCREW - 3/8" x 1-1/2" hex hd. cap, N.F. thread (D)

3шт.

NUT - 3/8" hex, light, N.F. thread (D)

3шт.

WASHER - 3/8" std. lock (D)

3шт.

6122A

X

BRACKET - rear lamp (DC), tractor

1шт.

6122A

X

BRACKET - had lamp (DO, DV), tractor

2шт.

6122A

X

BRACKET - head lamp (LP-gas) (DC), tractor

2шт.

6123A

X

BRACKET - head lamp (DC), tractor

2шт.

SCREW - 3/8" x 1-1/2" hex hd. cap, N.F. thread (DC), tractor lamps

2шт.

NUT - 3/8" hex, light, N.F. thread (DC), tractor lamps

2шт.

WASHER - 3/8" std. lock (DC), tractor lamps

2шт.

6123A

X

BRACKET - rear lamp (DO, DV), tractor

1шт.

O2457AB

CLIP - rear lamp wire (D, DC), tractor

1шт.

O2457AB

CLIP - switch to lamp lead wire, tractor

1шт.

O2825AB

X

CLIP - front lamp wire (DC), tractor

5шт.

BOLT - 1/4" x 5/8" rd. hd. stove (DC), tractor lamps

5шт.

WASHER - 1/4" std. lock (DC), tractor lamps

5шт.

O2825AB

X

CLIP - rear lamp wire, on seat support channel (D), tractor

1шт.

BOLT - 1/4" x 5/8" rd. hd. stove (D), tractor lamps

1шт.

WASHER - 1/4" std. lock (D), tractor lamps

1шт.

O5225AB

WIRE - front junction to head lamp (Prior to tractor no. 5615029) (D), tractor

2шт.

O5225AB1

WIRE - light switch to ammeter (See O6359AB), tractor lamps

1шт.

O5493AB

WIRE - tractor lamp, light switch to front junction (DO, DV)

1шт.

O5493AB

WIRE - head lamp, light switch to front junction (Prior to tractor no. 5615029) (D), tractor

1шт.

O5495AB

BLOCK - terminal, head lamp wires (Prior to tractor no. 5615029) (D)

1шт.

O5495AB

BLOCK - terminal, head lamp wire (DO, DV), tractor

1шт.

SCREW - 3/16" x 1/2" rd. hd. mach., N.F. thread (DO, DV), tractor lamps

1шт.

NUT - 3/16" mach. screw, light, N.F. thread (DO, DV), tractor lamps

1шт.

WASHER - 3/16" std. lock (DO, DV), tractor lamps

1шт.

WASHER - 1/2" std. plain (DO, DV), tractor lamps

1шт.

O6168AB

CLIP - rear lamp wire (D, DC), tractor

1шт.

O6330AB

LAMP - head (Use O9642AB or O9668AB), tractor

1шт.

O6353AB

SWITCH

- light, tractor lamps

1шт.

O6359AB

WIRE - ammeter to light switch (LP-gas) (See O5225AB1) (D, DC, and DO), tractor lamps

1шт.

O7196AB

WIRE - front lamp (See O8936AB) (DC), tractor

1шт.

O7198AB

CLIP - rear lamp wire (D, DC), tractor

1шт.

O7199AB

GUIDE - rear lamp wire (D, DC), tractor

1шт.

O7224AB

WIRE - front lamp (DO, DV), tractor

2шт.

O7549AB

CONNECTOR - two wire line, tractor lamp

1шт.

O8332AB

X

GROMMET - rubber (3/8" hole) (D - 1) (DC - 3), tractor lamp

1шт.

O8335AB

X

WIRE - rear lamp, dash to connector, tractor

1шт.

O8336AB

WIRE - rear lamp, connector to lamp (D, DC), tractor

1шт.

O8810AB

LAMP

- combination flood and tail, tractor

1шт.

O8815AB

WIRE - rear lamp (DO, DV), tractor

1шт.

O8816AB

LOOM - rear lamp wire (66" long) (DO, DV), tractor

1шт.

O8817AB

CLIP - rear lamp wire (DO, DV), tractor

4шт.

SCREW - 3/8" x 1" hex hd. cap, N.F. thread (DO, DV), tractor lamps

4шт.

WASHER - 3/8" std. lock (DO, DV), tractor lamps

4шт.

NUT - 3/8" hex, light, N.F. thread (DO, DV), tractor lamps

4шт.

O8895AB

CLIP - conduit, tractor lamps

2шт.

SCREW - 1/4" x 1/2" rd. hd. mach., N.C. thread, tractor lamps

2шт.

WASHER - 1/4" std. lock, tractor lamps

2шт.

O8896AB

PLATE - rear lamp bracket mounting (DO, DV), tractor

1шт.

SCREW - 3/8" x 1" hex hd. cap, N.F. thread (DO, DV), tractor lamps

1шт.

WASHER - 3/8" std. lock (DO, DV), tractor lamps

1шт.

NUT - 3/8" hex light, N.F. thread (DO, DV), tractor lamps

1шт.

O8936AB

WIRE - head lamp (LP-gas) (See O7196AB) (DC), tractor

1шт.

O8964AB

BRACKET - head lamp mounting (LP-gas) (DC), tractors

1шт.

SCREW - 3/8" x 1" hex hd. cap, N.F. thread (DC), tractor lamps

2шт.

NUT - 3/8" hex, light, N.F. thread (DC), tractor lamps

2шт.

WASHER - 3/8" std. lock (DC), tractor lamps

2шт.

O9196AB

BRACKET - tail lamp (D, DC), tractor

1шт.

SCREW - 1/4" x 5/8" rd. hd. mach., N.C. thread (D, DC), tractor lamps

2шт.

WASHER - 1/4" std. lock (D, DC), tractor lamps

2шт.

NUT - 1/4" hex, N.C. thread (D, DC), tractor lamps

2шт.

O9475AB

WIRE - switch to head lamp (Tractor no. 5615029 and after) (See O5225AB and O5493AB) (D), tractor

1шт.

O9642AB

LAMP - head, sealed beam (Vertical mounting) (DC), tractor

2шт.

O9668AB

LAMP - head, sealed beam (Horizontal mounting) (D, DO, DV), tractor

2шт.

4042AA

CONDUIT ASSEMBLY, tractor lamps

1шт.
