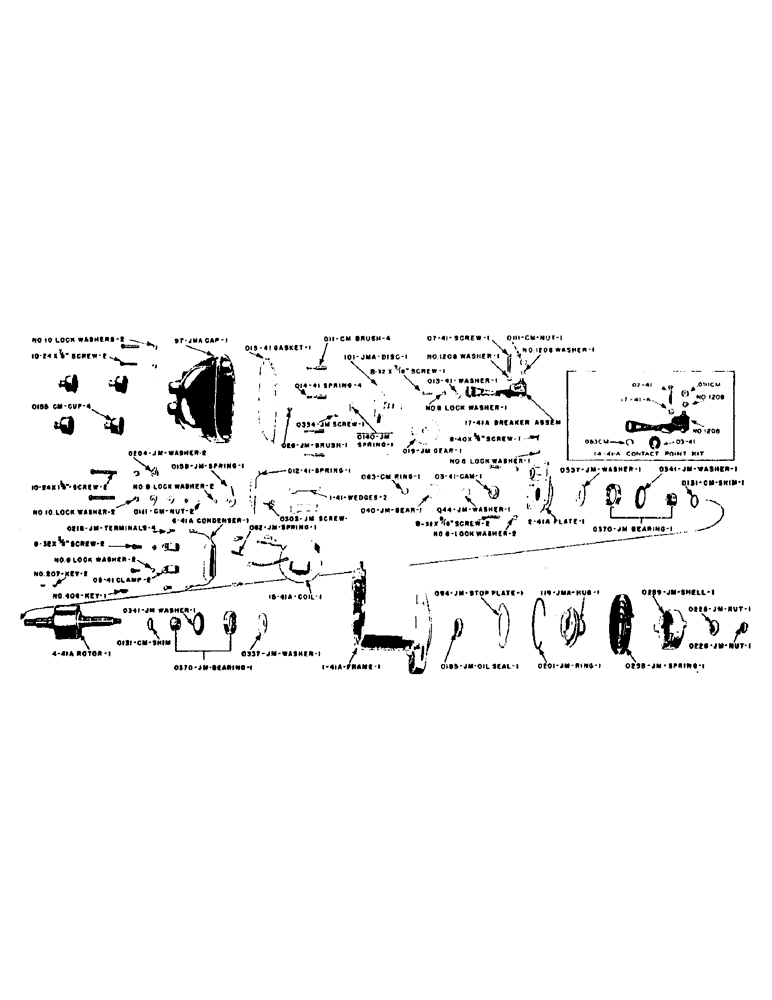

Запчасти Case IH DC-SERIES (032) - 41 MAGNETO (04) - ELECTRICAL SYSTEMS

O3-41

CAM

1шт.

No. 207 Woodruff key

1шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

O7-41

SCREW - brass, for 17-41A

2шт.

O8-41

CLAMP - condenser

2шт.

No. 8 - 32 x 3/8" fill. hd. screw

2шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

No. 8 - lockwashers

2шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

O12-41

SPRING - grounding (Inside magneto)

1шт.

O13-41

WASHER - adjusting screw

1шт.

O14-41

SPRING - distributor brush

4шт.

O15-41

GASKET - distributor cap

1шт.

O11CM

BRUSH - distributor

4шт.

O19JM

GEAR - distributor

1шт.

O26JM

BRUSH - secondary circuit

1шт.

O40JM

GEAR - rotor

1шт.

O44JM

WASHER - between cam and gear

1шт.

O63CM

SNAP RING

1шт.

O82JM

SPRING - secondary coil lead

1шт.

O94JM

PLATE - stop pin

1шт.

O111CM

NUT - breaker arm and ground screw

4шт.

O131CM

SHIM - (.010" thick)

1шт.

O132CM

SHIM - (.005" thick)

1шт.

O140JM

SPRING - distributor disc

1шт.

O155CM

CABLE CUPS - same as O4449AB1

4шт.

O159JM

SPRING - primary ground (Outside magneto)

1шт.

O185JM

OIL SEAL

1шт.

O201JM

SNAP RING - stop pin plate

1шт.

O204JM

WASHER - distributor cap screw

2шт.

O218JM

TERMINALS - coil and condenser

4шт.

O225JM

NUT - impulse coupling

1шт.

O226JM

PAL NUT - impulse coupling

1шт.

O258JM

SPRING - impulse coupling

1шт.

O259JM

SHELL - impulse (Standard)

1шт.

O303JM

SCREW - grounding spring

1шт.

O334JM

SCREW - distributor disc spring

1шт.

O337JM

WASHER - rotor shaft bearing

2шт.

O341JM

WASHER - expanding

2шт.

O348JM

SHELL - impulse (Use impulse coupling selector to determine correct shell)

1шт.

Used to adopt Case magnetos for use on engines other than Case.

1шт.

O349JM

SHELL - impulse (Use impulse coupling selector to determine correct shell)

1шт.

Used to adopt Case magnetos for use on engines other than Case.

1шт.

O350JM

SHELL - impulse (Use impulse coupling selector to determine correct shell)

1шт.

Used to adopt Case magnetos for use on engines other than Case.

1шт.

O370JM

BEARING - rotor shaft ball (New Departure #20202-E)

2шт.

1-41

WEDGE - coil

2шт.

1-41-A

FRAME

1шт.

2-41-A

PLATE - bearing, with distributor bearing

1шт.

No. 8 - 32 x 9/16" screws

3шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

No. 6 - 40 x 3/8" screws

1шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

No. 7 - 41 screw

1шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

No. 8 lockwasher

3шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

No. 6 lockwasher

1шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

No. 1208 lockwasher

1шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

4-41-A

ROTOR

1шт.

No. 207 Woodruff key

2шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

No. 404 Woodruff key

1шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

6-41-A

CONDENSER

1шт.

14-41-A

CONTACT POINT KIT - (Consists of: (1) 17-41-A breaker assembly, (1) O3-41 cam, (2) 1208 lockwashers, (1) O111CM nut, and (1) O63CM snap ring)

1шт.

15-41-A

COIL

1шт.

17-41-A

BREAKER ASSEMBLY

1шт.

97JMA

DISTRIBUTOR CAP - (Includes 1-O26JM secondary circuit brush only)

1шт.

10 - 24 x 1-3/8" screw

2шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

10 - 24 x 7/8" screw

2шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

10 lockwashers

4шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

O204JM

WASHERS

2шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.

101JMA

DISC - distributor (Includes 1 - no. O140JM spring and 1-9334JM screw)

1шт.

109JMA

COUPLING - impulse (Consists of 119JMA hub and O258JM spring)

1шт.

119JMA

HUB - impulse

1шт.

No. 404 Woodruff key

1шт.

Part number does not include screws or washers.They are listed only to show correct size and location.

1шт.
