Запчасти Case IH DC-SERIES (054) - CARBURETOR -- LP-GAS, D, DC, DO (03) - FUEL SYSTEM

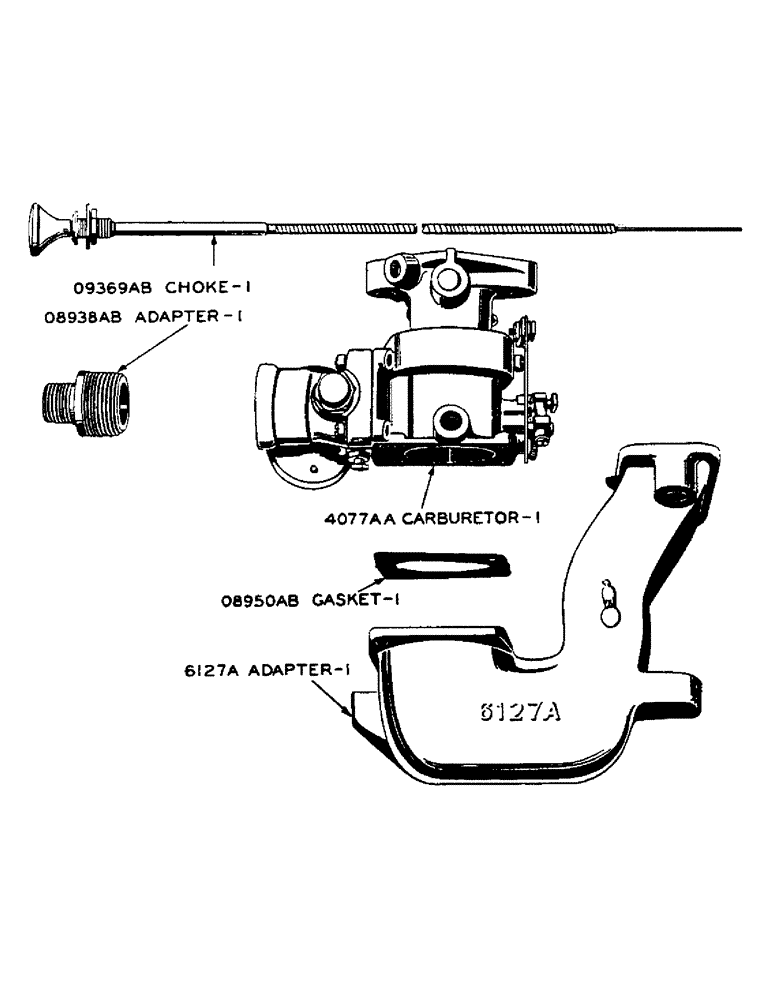

Схема запчастей Case IH DC-SERIES - (054) - CARBURETOR -- LP-GAS, D, DC, DO (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

6127A

ADAPTER - carburetor

1шт.

SCREW - no. 12 - 24 x 5/8" rd. hd. mach.

4шт.

WASHER - no. 12 std. lock

4шт.

O1579AB

STUD - carburetor

1шт.

NUT - 3/8" hex jam, light, N.F. thread

2шт.

WASHER - 3/8" type 12, no. 1220 Shakeproof lock

2шт.

O8938AB

ADAPTER - regulator

1шт.

O8950AB

X

GASKET - carburetor adapter

1шт.

O8959AB

TUBE - regulator idle, Serial Range: connection-carburetor

1шт.

O9253AB

TUBE -, Serial Range: economizer-carburetor

1шт.

O9254AB

TUBE - regulator balance, Serial Range: connection-carburetor

1шт.

O9369AB

CONTROL - flexible choke

1шт.

4077AA

CARBURETOR - with economizer (Ensign 1-1/4" XG no. 8833)

1шт.

ELBOW - Imperial no. 889L, 3/16" tube size x 1/8" P.T.

1шт.

ELBOW - Imperial no. 889L, 5/16" tube size x 1/8" P.T.

1шт.

TEE - Imperial no. 891L, 3/16" tube size x 1/8" P.T.

1шт.

Выбрано товаров: 16
