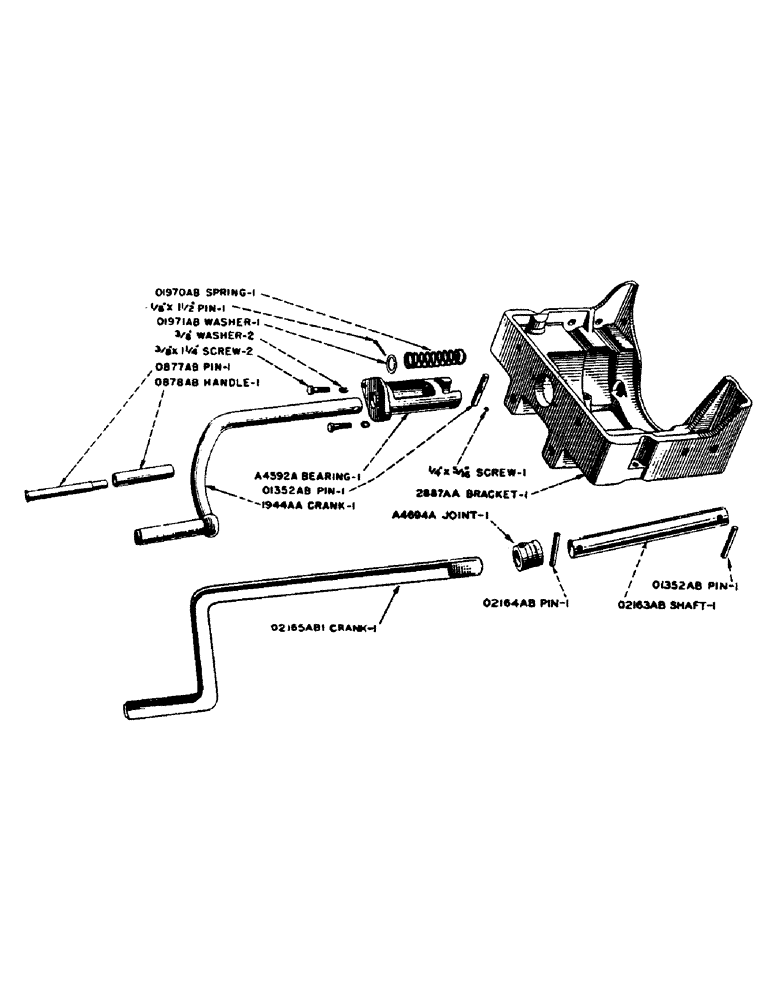

Запчасти Case IH DC-SERIES (046) - STARTING CRANK AND RADIATOR BRACKET, D, DC-3, DC-4, DO, DV (02) - ENGINE

D4591A

BRACKET - radiator (Use 2887AA)

1шт.

A4592A

BEARING - starting crank

1шт.

3/8" x 1-1/4" N.C. hex hd. cap screw, w/lockwasher

2шт.

A4694A

JOINT - starting crank (DC-3)

1шт.

O877AB

PIN - starting crank handle (D, DC-4, DO, DV)

1шт.

O878AB

HANDLE - starting crank (D, DC-4, DO, DV)

1шт.

O1352AB

PIN - starting crank

1шт.

1/4" x 5/16" cup pt. headless set screw

1шт.

O1970AB

SPRING - starting crank

1шт.

O1971AB

WASHER - starting crank spring

1шт.

1/8" x 1-1/2" cotter pin

1шт.

O2163AB

SHAFT - starting crank (DC-3)

1шт.

O2164AB

PIN - starting crank joint (DC-3)

1шт.

O2165AB1

CRANK - starting (DC-3)

1шт.

O5945AB

SPRING - starting crank holder (DC-3)

1шт.

O7148AB

BRACKET - starting crank holder (Prior to tractor no. 8025740) (See O9590AB) (DC-3)

1шт.

3/8" x 3-3/4" N.F. hex hd. cap screw, w/nut and lockwasher (DC-3)

1шт.

O9590AB

BRACKET - starting crank holder and seat bumper (Tractor no. 8025740 and after) (See O7148AB) (D, DC-3)

1шт.

3/8" x 3-3/4" N.F. hex hd. cap screw, w/nut and lockwasher (D, DC-3)

1шт.

1346AA

CRANK - starting, with handle and pin (Tractor no. 8025740 and after) (See 1623AA and 1944AA) (DC-4)

1шт.

1623AA

CRANK - starting, complete with bearing (Tractor no. 8025740 and after) (See 1346AA and 1945AA) (DC-4)

1шт.

1944AA

CRANK - starting, with handle and pin (See 1945AA) (D, DO, DV)

1шт.

1944AA

CRANK - starting, with handle and pin (Prior to tractor no. 8025740) (See 1945AA and 1346AA) (DC-4)

1шт.

1945AA

CRANK - starting, complete with bearing (Prior to tractor no. 8025740) (See 1623AA and 1944AA) (DC-4)

1шт.

1945AA

CRANK - starting, complete with bearing (See 1944AA) (D, DO, DV)

1шт.

2887AA

BRACKET - front axle and radiator, with pivot pin

1шт.

7/16" x 3-3/4" N.F. hex hd. cap screw, w/nut and lockwasher (D, DC-4, DO, DV)

1шт.

1/2" x 1-3/4" N.F. hex hd. cap screw, w/nut and lockwasher

7шт.

1/2" x 5" N.C. hex hd. cap screw, w/lockwasher

2шт.

1/2" x 2" N.F. hex hd. cap screw, w/nut and lockwasher

1шт.
