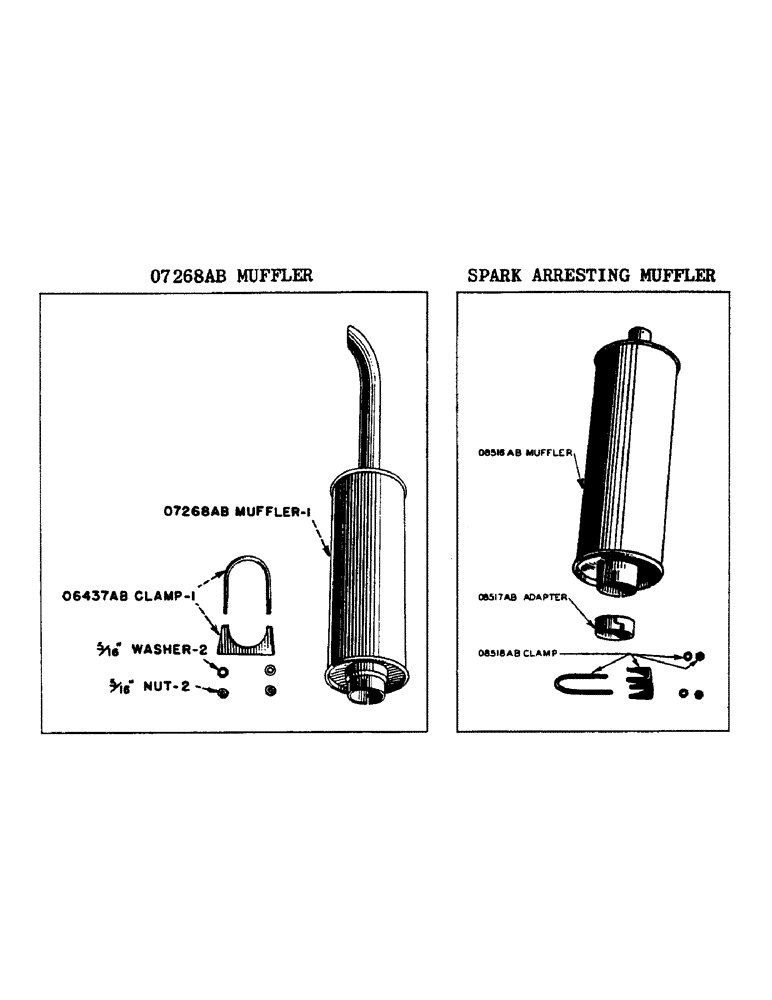

Запчасти Case IH DC-SERIES (024) - O7628AB MUFFLER, D AND DC (02) - ENGINE

5148A

X

ELBOW - exhaust

1шт.

SCREW - 3/8" x 1" hex hd. cap, N.C. thread

2шт.

O3475AB

PIPE - exhaust (When muffler is not used)

1шт.

O6437AB

X

CLAMP - for O7268AB muffler

1шт.

NUT - 5/16" hex, N.C. thread

2шт.

WASHER - 5/16" std. lock

2шт.

O7268AB

X

MUFFLER

1шт.

O8516AB

MUFFLER, spark arresting

1шт.

O8517AB

ADAPTER - muffler (No. 16 gauge thickness), spark arresting

1шт.

O8518AB

CLAMP

- muffler, spark arresting

1шт.

3803AA

MUFFLER - spark arresting, complete. (For tractors using 5148A exhaust elbow). (Consists of 1-O8516AB, 1-O8517AB and 1-O8518AB)

1шт.
