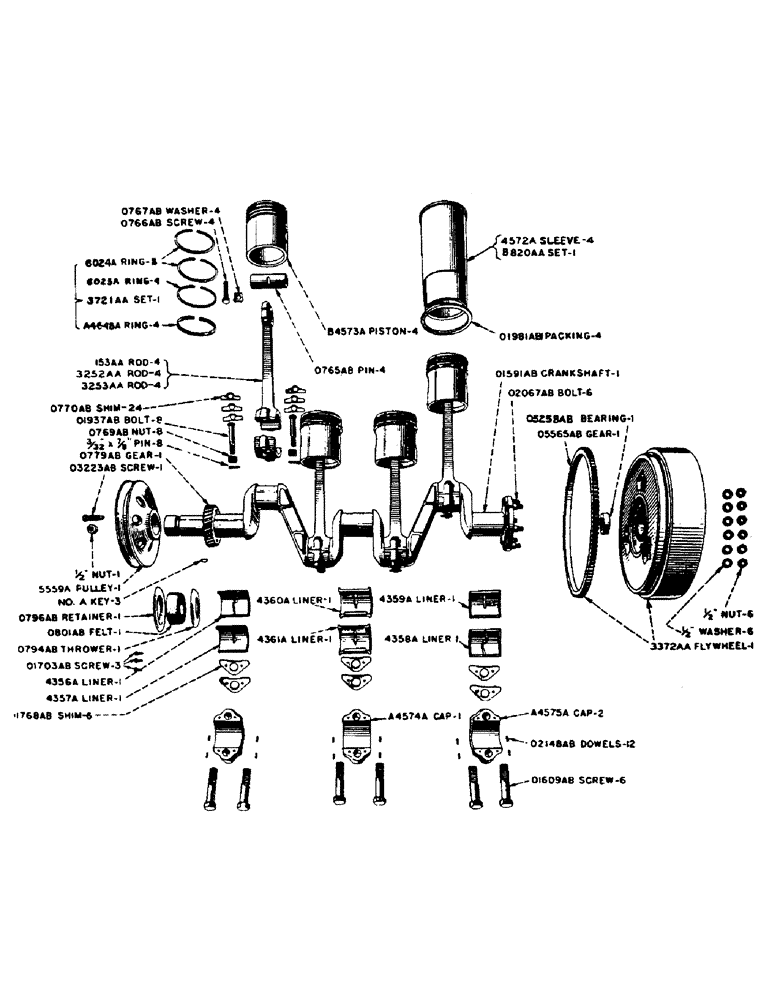

Запчасти Case IH DC-SERIES (010) - PISTONS AND CONNECTING RODS AND CRANKSHAFT, FOR TRACTORS WITH 3-7/8" BORE, D, DC, DO, DV (02) - ENGINE

A4377A

RING - piston compression (See 3721AA) (See note)

4шт.

When new piston rings are required we recommend installing A8086 set of 2-in-1 chrome plated rings.

1шт.

4572A

SLEEVE - cylinder

4шт.

B4573A

X

PISTON - used with A2399AA and A2873AA cylinder heads (See B820AA)

4шт.

A4648A

RING - piston, oil. (See 3721AA) (See note)

4шт.

When new piston rings are required we recommend installing A8086 set of 2-in-1 chrome plated rings.

1шт.

6024A

RING - piston, taper faced compression (See 3721AA) (See note)

8шт.

When new piston rings are required we recommend installing A8086 set of 2-in-1 chrome plated rings.

1шт.

O765AB

X

PIN - piston

4шт.

O766AB

X

SCREW - piston pin clamp

4шт.

O767AB

X

WASHER - lip, piston pin clamp screw

4шт.

O769AB

NUT - connecting rod bolt

8шт.

O770AB

X

SHIM - connecting rod (.003" thick)

24шт.

O1937AB

BOLT - connecting rod

8шт.

3/32" x 7/8" cotter pin

8шт.

O1981AB1

X

PACKING - cylinder sleeve

4шт.

153AA

X

ROD - connecting, with bolts, nuts and shims (See 3252AA and 3253AA) (See note)

4шт.

395AA

PULLER - cylinder sleeve, with O2140AB plate

1шт.

B820AA

SLEEVES - cylinder, set of (4), fitted with pistons, rings, pins and packing (See A7493 and 4865AA)

1шт.

3252AA

ROD - connecting, with bolts, nuts and shims, .010" undersize (See 153AA) (See note)

4шт.

3253AA

ROD - connecting, with bolts, nuts and shims, .020" undersize (See 153AA) (See note)

4шт.

A4648A

RING - piston, oil, replacements for tractors w/ 3-7/8" bore

4шт.

6024A

RING - piston, taper faced compression, replacements for tractors w/ 3-7/8" bore

8шт.

6025A

RING - piston, continuous groove scraper, replacements for tractors w/ 3-7/8" bore

4шт.

3721AA

PISTON RING SET

RINGS - set of (16) replacement piston. Consists of 4-A4648A, 8-6024A and 4-6025A (See A8086 set of 2-in-1 chrome ring sets), for tractors w/ 3-7/8" bore

1шт.

A7493

SLEEVES - cylinder, set of (4), fitted with pistons, rings, pins and packing (For low cost fuel tractors) (See 4865AA)connecting rods(for tractors w/ 4' bore)

1шт.

A7786

OIL SEAL

RING - piston compression (Top) (See note), connecting rods, (for tractors w/ 4" bore)

4шт.

When new piston rings are required we recommend installing A8095 set of 2-in-1 chrome plated rings.

1шт.

6308A

X

RING - piston compression (2nd and 3rd groove) (See note), connecting rods, (for tractors w/ 4" bore)

8шт.

When new piston rings are required we recommend installing A8095 set of 2-in-1 chrome plated rings.

1шт.

6309A

RING - piston oil (See note), connecting rods, (for tractors w/ 4" bore)

4шт.

When new piston rings are required we recommend installing A8095 set of 2-in-1 chrome plated rings.

1шт.

6409A

X

PISTON - for low cost fuel tractors (See 6415A and A7493), connecting rods, ( with 4' bore)

4шт.

6415A

X

PISTON - for gasoline tractors (See 6409A and 4865AA), connecting rods, with 4' bore)

4шт.

6416A

X

SLEEVE - cylinder, pistons and connecting rods, (for tractors w/ 4" bore)

4шт.

O765AB

X

PIN - piston, connecting rods ( for tractors w/ 4' bore)

4шт.

O766AB

X

SCREW - piston pin clamp, connecting rods, (for tractors w/ 4' bore)

4шт.

O767AB

X

WASHER - lip, piston pin clamp screw, connecting rods, (for tractors w/ 4" bore)

4шт.

O769AB

NUT - connecting rod bolt, pistons, (for tractors w/ 4" bore)

8шт.

O770AB

X

SHIM - connecting rod (.003" thick) pistons, (for tractors w/ 4" bore)

24шт.

O1937AB

BOLT - connecting rod, pistons, (for tractors w/ 4" bore)

8шт.

3/32" x 7/8" cotter pin, pistons and connecting rods (for tractors w/ 4" bore)

8шт.

O1981AB1

X

PACKING - cylinder sleeve, pistons and connecting rods, (for tractors w/ 4" bore)

4шт.

153AA

X

ROD - connecting, with bolts, nuts and shims (See 3252AA and 3253AA) (See note), pistons, (for tractors w/ 4" bore)

4шт.

3252AA

ROD - connecting, with bolts, nuts and shims, .010" undersize (See 153AA) (See note), pistons, (for tractors w/ 4" bore)

4шт.

3253AA

ROD - connecting, with bolts, nuts and shims, .020" undersize (See 153AA) (See note), pistons, (for tractors w/ 4" bore)

4шт.

4865AA

SLEEVES - cylinder, set of (4), fitted with pistons, rings, pins and packing (For gasoline tractors) (See A7493) , connecting rods, (w/ 4' bore)

1шт.

A8086

RING

Set of piston rings for tractors having 3-7/8" bore, Perfect Circle 2-in-1, chrome

1шт.

A8095

KIT

Set of piston rings for tractors having 4" bore, Perfect Circle 2-in-1, chrome

1шт.

4356A

X

LINER - crankshaft bearing, front, lower. Standard size. (Not fitted) (See 6015A)

1шт.

4357A

X

LINER - crankshaft bearing, front, upper. Standard size. (Not fitted) (See 6014A)

1шт.

4358A

X

LINER - crankshaft bearing, rear, lower, Standard size. (Not fitted) (See 6019A)

1шт.

4359A

X

LINER - crankshaft bearing, rear, upper. Standard size. (Not fitted) (See 6018A)

1шт.

4360A

X

LINER - crankshaft bearing, center, upper. Standard size. (Not fitted) (See 6016A)

1шт.

4361A

X

LINER - crankshaft bearing, center, lower. Standard size. (Not fitted) (See 6017A)

1шт.

A4574A

CAP - crankshaft bearing, center

1шт.

A4575A

CAP - crankshaft bearing, front and rear

2шт.

5239A

FLYWHEEL - (Use B865AA), crankshaft

1шт.

5559A

PULLEY - fan drive, crankshaft

1шт.

5915A

FLYWHEEL - (Use 3372AA), crankshaft

1шт.

6014A

LINER - crankshaft bearing, front, upper, .090" undersize. (Not fitted) (See 4357A)

1шт.

6015A

LINER - crankshaft bearing, front, lower, .090" undersize. (Not fitted) (See 4356A)

1шт.

6016A

LINER - crankshaft bearing, center, upper, .090" undersize. (Not fitted) (See 4360A)

1шт.

6017A

LINER - crankshaft bearing, center, lower, .090" undersize. (Not fitted) (See 4361A)

1шт.

6018A

LINER - crankshaft bearing, rear, upper, .090" undersize. (Not fitted) (See 4359A)

1шт.

6019A

LINER - crankshaft bearing, rear, lower, .090" undersize. (Not fitted) (See 4358A)

1шт.

O779AB

GEAR - crankshaft

1шт.

O794AB

THROWER - crankshaft oil

1шт.

O796AB

RETAINER - felt, crankshaft, front

1шт.

O801AB

WASHER - felt, crankshaft

1шт.

O1591AB

CRANKSHAFT

1шт.

KEY - No. A Woodruff

3шт.

O1609AB

SCREW - crankshaft bearing cap

6шт.

O1703AB

SCREW - crankshaft felt retainer

3шт.

O1768AB

SHIM - crankshaft bearing

6шт.

O2067AB

BOLT - flywheel, crankshaft

6шт.

NUT - 1/2" hex, light, jam, N.F. thread, crankshaft

6шт.

WASHER - 1/2" std. lock, crankshaft

6шт.

O2148AB

DOWEL - crankshaft bearing cap

12шт.

O3223AB

SCREW - set, fan drive pulley, crankshaft

1шт.

NUT - 1/2" hex, jam, N.C. thread, crankshaft

1шт.

O5258AB

BEARING

- pilot, clutch shaft, flywheel end. (New Departure no. 8505), crank

1шт.

O5565AB

GEAR, RING

GEAR - flywheel ring, (112 teeth), crankshaft

1шт.

O7752AB

PLUG - crankshaft oil

1шт.

B865AA

FLYWHEEL - with ring gear (For tractors with foot clutch) (See 3372AA) (D, DC), crankshaft

1шт.

3372AA

FLYWHEEL - with ring gear (For tractors with hand clutch) (See B865AA), crankshaft

1шт.
