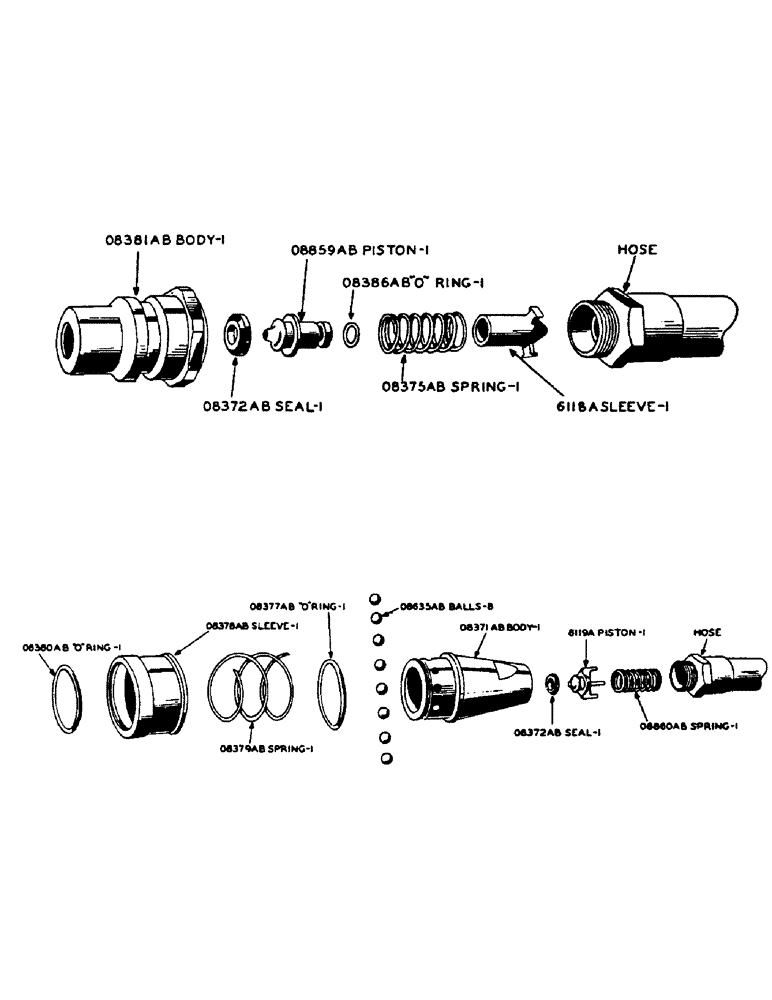

Запчасти Case IH DC-SERIES (168) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, 4025AA BREAK AWAY SELF SEALING COUPLING PLUG (08) - HYDRAULICS

6118A

X

SLEEVE - break-away coupling plug piston

1шт.

O8372AB

X

SEAL - break-away coupling piston

1шт.

O8375AB

X

SPRING - break-away coupling piston

1шт.

O8381AB

X

BODY - male, break-away coupling plug

1шт.

O8386AB

X

"O" RING - break-away coupling plug piston sleeve

1шт.

O8859AB

X

PISTON - break-away coupling plug

1шт.

4025AA

X

PLUG - break-away self sealing coupling. Consists of above items

2шт.

O8387AB

X

PLUG - adapter, connects break-away coupling plug to mounted cylinder

2шт.

6119A

X

PISTON - break-away coupling socket-4026AA self sealing

1шт.

O8371AB

BODY - female break-away coupling socket-4026AA self sealing

1шт.

O8372AB

X

SEAL - break-away coupling piston, 4026AA, self sealing socket

1шт.

O8377AB

X

"O" RING - break-away coupling socket body,4026AA, self sealing

1шт.

O8378AB

X

SLEEVE - break-away coupling socket body ball retaining, 4026AA, self sealing

1шт.

O8379AB

X

SPRING - coupling socket body ball retaining sleeve, 4026AA, self sealing break-away

1шт.

O8380AB

X

SNAP RING - coupling socket rubber, 4026AA, break-away self sealing

1шт.

O8635AB

X

BALL - break-away coupling socket locking, 4026AA, self sealing

8шт.

O8860AB

X

SPRING - break-away coupling socket piston, 4026AA, self sealing

1шт.

4026AA

X

SOCKET - break-away self sealing coupling. Consists of above items, 4026AA

2шт.
