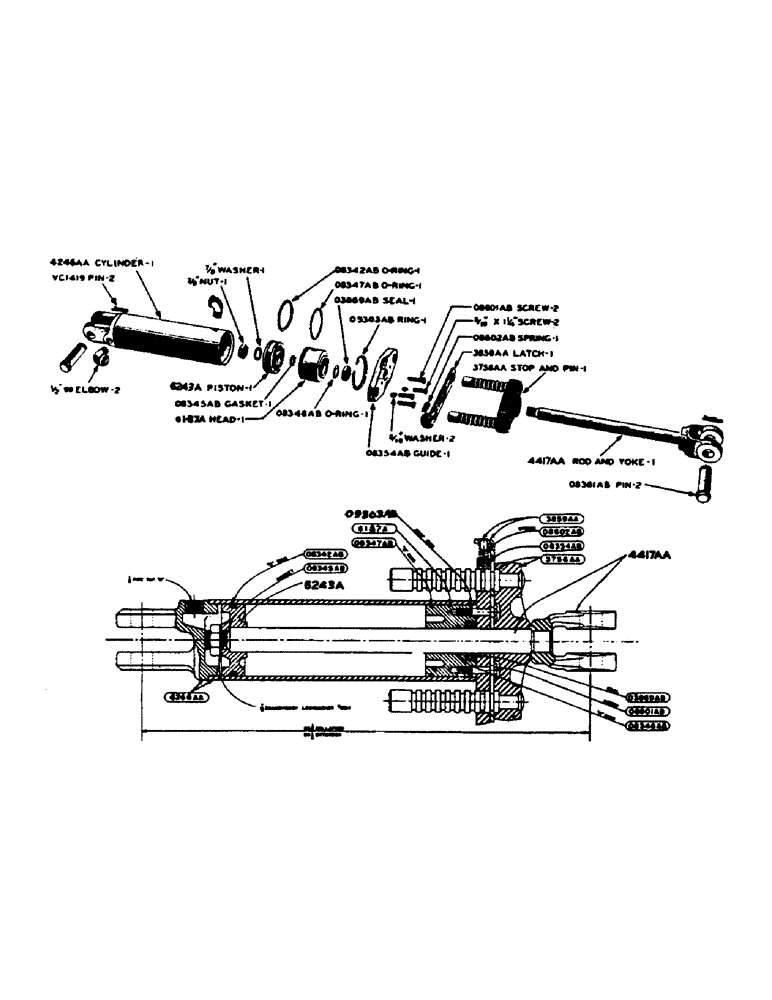

Запчасти Case IH DC-SERIES (166) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, B3785AA PORTABLE CYLINDER, 3-1/4" X 8" (08) - HYDRAULICS

6044AA

HEAD - (Use 4246AA)

1шт.

6187A

HEAD - hydraulic cylinder, inner

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

6243A

PISTON - hydraulic cylinder

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

O3869AB

X

OIL SEAL - piston rod

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

8342AB

"O" RING - piston

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

O8345AB

X

GASKET - piston rod

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

O8346AB

X

"O" RING - piston rod

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

O8347AB

X

"O" RING - hydraulic cylinder

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

O8354AB

GUIDE - limit stop pin

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

5/16" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O8361AB

X

PIN - hydraulic cylinder yoke

2шт.

O8392AB

HOSE to portable cylinder, front (1/2" I.D. x 76" long)

1шт.

O8393AB

HOSE - to portable cylinder, rear (1/2" I.D. x 88" long)

1шт.

O8590AB

HOSE - 4026aa coupling to valve (1/2" I.D. x 18" long)

2шт.

O8601AB

X

SCREW - stop latch

2шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

5/16" Shakeproof lockwasher #1218-4

2шт.

O8602AB

X

SPRING - limit stop latch

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

O8681AB

X

CLAMP - hose

2шт.

5/16" x 3/4" hex hd. cap screw, N.F. thrd., with hex nut and lockwasher

1шт.

O9303AB

X

SNAP RING - cylinder head

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

VC1419

X

PIN - for O8361AB yoke pin

2шт.

3756AA

STOP AND PIN - hydraulic cylinder limit

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

B3785AA

CYLINDER - 3-1/4" x 8" hydraulic portable, Consists of: Ref. P/N 6187A, P/N 6243A, P/N 03869AB, P/N 8342AB, P/N 08345AB, P/N 08346AB, P/N 08347AB, 08354AB, P/N 08601AB, P/N 08602AB, 09303AB, 3756AA, 3859AA, 4246AA AND 4417AA

1шт.

3859AA

X

LATCH - limit stop

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

4246AA

CYLINDER AND HEAD - hydraulic portable

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

1/2" 90 degree street elbow

2шт.

4417AA

ROD AND YOKE - hydraulic cylinder piston

1шт.

Part of 3-1/4" x 8" Hydraulic Portable Cylinder P/N B3785AA

1шт.

7/8" hex, light nut, N.F. thrd.

1шт.

7/8" type 12, Shakeproof lockwasher #1234

1шт.
