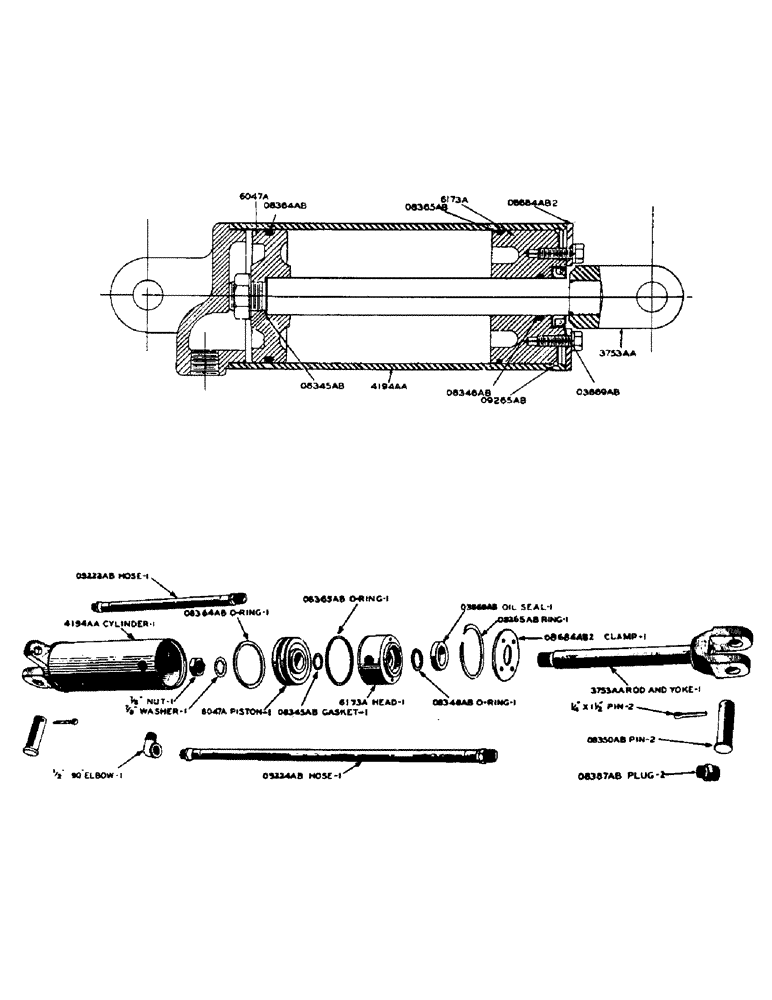

Запчасти Case IH DC-SERIES (165) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, 4195AA MOUNTED CYLINDER, 4" X 6", FOR SINGLE AND DUAL (08) - HYDRAULICS

6047A

PISTON - hydraulic cylinder

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

6159A

CAP - (Use 4194AA)

1шт.

6173A

HEAD - hydraulic cylinder

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

O3869AB

X

OIL SEAL - hydraulic cylinder piston rod

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

O8345AB

X

GASKET - hydraulic cylinder piston rod

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

O8346AB

X

"O" RING - hydraulic cylinder piston rod

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

O8305AB

PIN - hydraulic cylinder yoke

2шт.

PIN - 1/4" x 1-1/2" cotter

2шт.

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - hydraulic cylinder piston

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

O8365AB

X

"O" RING - hydraulic cylinder head

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

O8387AB

X

PLUG - adapter, connect break-away coupling plug to mounted cylinder

2шт.

O8684AB2

CLAMP - hydraulic cylinder head

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

SCREW - 5/16" x 1" hex hd. cap, N.C. thread

4шт.

WASHER - 5/16" std. lock

4шт.

O9223AB

HOSE - hydraulic cylinder to sump (3/8" I.D. x 13" long)

1шт.

O9224AB

HOSE - hydraulic valve to cylinder (3/8" I.D. x 20" long) (For dual valve)

1шт.

O9225AB

ELBOW - 45 degree swivel, hydraulic hose

2шт.

O9265AB

X

SNAP RING - hydraulic cylinder head

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

O9373AB

ELBOW - 90 degree swivel, hydraulic hose

1шт.

3753AA

ROD AND YOKE - piston, hydraulic cylinder

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

NUT - 7/8" hex jam, N.F. thread

1шт.

WASHER - 7/8" type 12, Shakeproof lock #1234

1шт.

4025AA

X

PLUG - break-away self sealing coupling

2шт.

4194AA

CYLINDER AND CAP - hydraulic cylinder

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder P/N 4195AA

1шт.

ELBOW - 1/2" 90 degree swivel

1шт.

4195AA

CYLINDER - 4" x 6" Hydraulic Mounted. consists of: Ref. P/N 6047A, P/N 6173A, P/N O3869AB, P/N O8345AB, P/N O8346AB, P/N O8364AB, P/N O8365AB, P/N O8684AB2, P/N O9265AB, P/N 3753AA and P/N 4194AA. Use A4915AA

1шт.
