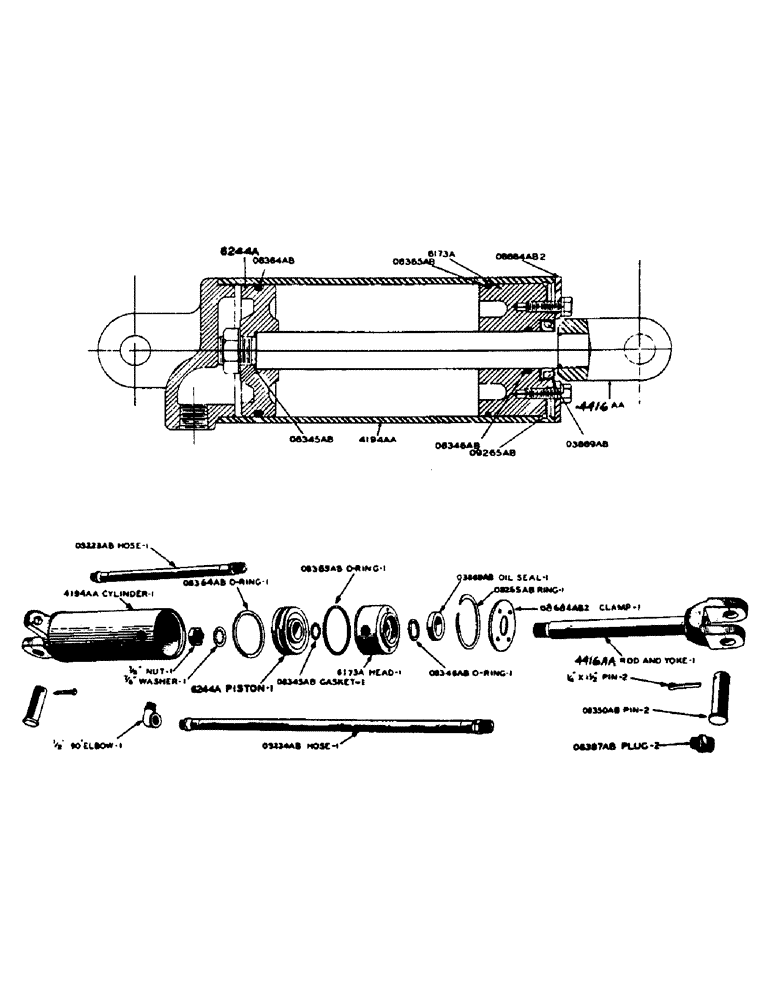

Запчасти Case IH DC-SERIES (164) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, A4195AA MOUNTED CYLINDER, 4" X 6", FOR SINGLE AND DUAL (08) - HYDRAULICS

6159A

CAP - (Use 4194AA)

1шт.

6173A

HEAD - cylinder

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

6244A

X

PISTON - cylinder

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

O3869AB

X

OIL SEAL - piston rod

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

O8345AB

X

GASKET - piston rod

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

O8346AB

X

"O" RING - piston rod

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

O8350AB

PIN - hydraulic cylinder yoke

2шт.

1/4" x 1-1/2" cotter pin

2шт.

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

O8365AB

X

"O" RING - cylinder head

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

O8387AB

X

PLUG - adapter, connects break-away coupling plug to mounted cylinder

2шт.

O8684AB2

CLAMP - cylinder head

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

5/16" x 1" N.C. hex hd. cap screw w/lockwasher

4шт.

O9223AB

HOSE - hydraulic cylinder to sump (3/8" I.D. x 13" long)

1шт.

O9224AB

HOSE - hydraulic valve to cylinder (3/8" I.D. x 20" long) (For dual valve)

1шт.

O9225AB

ELBOW - 45 degree swivel, hydraulic hose

2шт.

O9265AB

X

SNAP RING - cylinder head

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

O9373AB

ELBOW - 90 degree swivel, hydraulic hose

1шт.

4025AA

X

PLUG - break-away self sealing coupling

2шт.

4194AA

CYLINDER - and cap

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

1/2" - 90 degree street elbow

1шт.

A4195AA

CYLINDER - 4" x 6" hydraulic mounted, Consists of items marked

1шт.

4416AA

ROD AND YOKE - piston

1шт.

Part of 4" x 6" Hydraulic Mounted Cylinder

1шт.

7/8" N.F. hex nut

1шт.

7/8" Shakeproof lockwasher, type 12, #1234

1шт.
