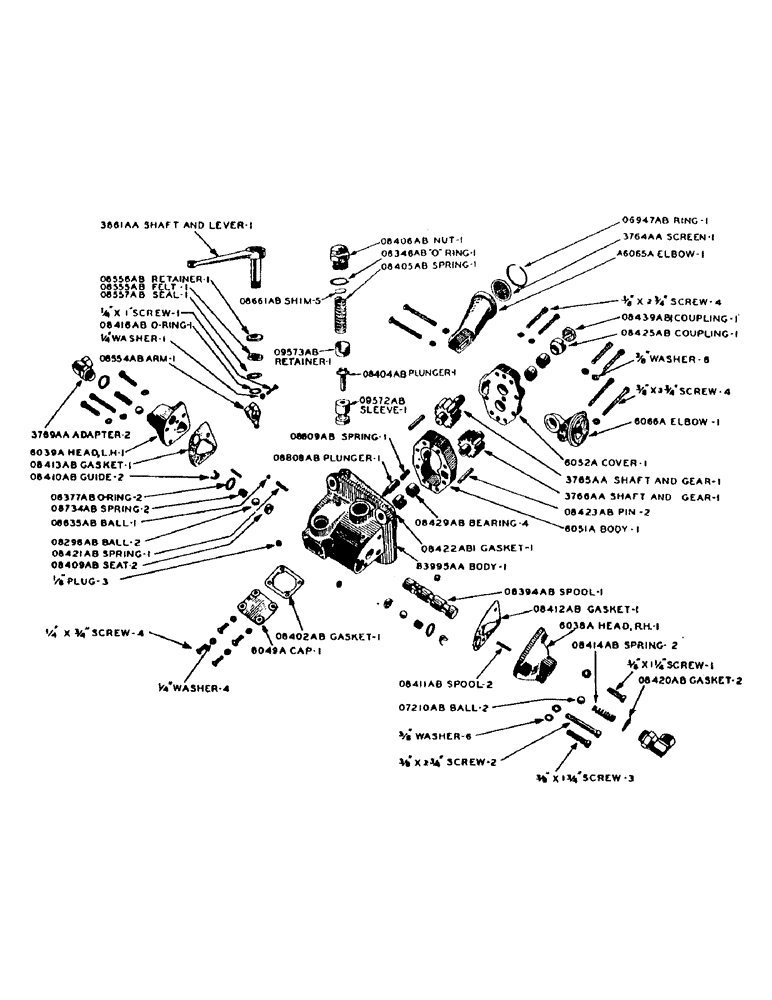

Запчасти Case IH DC-SERIES (160) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, SINGLE VALVE AND PUMP (08) - HYDRAULICS

6038A

HEAD - R.H., hydraulic single valve

1шт.

SCREW - 3/8" x 1-1/4" hex hd. cap, N.C. thread

1шт.

SCREW - 3/8" x 1-3/4" hex hd. cap, N.C. thread

1шт.

SCREW - 3/8" x 2-3/4" hex hd. cap, N.C. thread

1шт.

WASHER - 3/8" std. lock

3шт.

6039A

HEAD - L.H., hydraulic single valve

1шт.

SCREW - 3/8" x 1-3/4" hex hd. cap, N.C. thread

2шт.

SCREW - 3/8" x 2-3/4" hex hd. cap, N.C. thread

1шт.

WASHER - 3/8" std. lock

3шт.

6049A

CAP - hydraulic single valve body

1шт.

SCREW - 1/4" x 3/4" rhd. hd. machine

4шт.

WASHER - 1/4" std. lock

4шт.

B6115A

BODY - hydraulic single valve (Use B3995AA)

1шт.

O7210AB

X

BALL - hydraulic valve return (1/2" dia.)

2шт.

O8296AB

X

BALL - outlet (5/8" dia.)

2шт.

O8377AB

X

"O" RING - outlet ball check

2шт.

O8394AB

X

SPOOL - hydraulic valve

1шт.

O8402AB

GASKET

- body cap

1шт.

O8409AB

X

SEAT - outlet ball check

2шт.

O8410AB

X

GUIDE - outlet ball check spring

2шт.

O8411AB

X

SPOOL - auxiliary

2шт.

O8412AB

GASKET

- valve head, R.H.

1шт.

O8413AB

GASKET

- valve head, L.H.

1шт.

O8414AB

X

SPRING - return ball check

2шт.

O8416AB

X

"O" RING - spool shifter shaft, lower

1шт.

O8420AB

X

GASKET - swivel angle adapter

2шт.

O8421AB

SPRING

- relief valve ball

1шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8554AB

X

ARM - spool shifter, large

1шт.

SCREW - 1/4" x 1" fillister head machine, N.F. thread

1шт.

WASHER - 1/4" std. lock

1шт.

O8555AB

X

WASHER - felt, spool shifter shaft, lower

1шт.

O8556AB

X

RETAINER - spool shifter shaft lower felt washer

1шт.

O8557AB

X

WASHER - spool shifter shaft seal, for O8555AB felt

1шт.

O8635AB

X

BALL - relief valve (1/4" dia.)

1шт.

O8734AB

X

SPRING - outlet ball check

2шт.

O8808AB

PLUNGER - spool

1шт.

O8809AB

X

SPRING - spool plunger

1шт.

3769AA

X

ADAPTER - swivel angle

2шт.

A3841AA

SINGLE VALVE AND PUMP ASSEMBLY

1шт.

3861AA

LEVER AND SHAFT - spool shifter, with plug

1шт.

B3995AA

1шт.

BODY - hydraulic single valve (Used regular on late tractors and as a replacement for 6115A, A6115A and B6115A) (Consists of 1-B6115A, 1-O8346AB, 1-O8404AB, 1-O8405AB, 1-O8406AB, 2-O8409AB, 1-O9572AB, 1-O9573AB, 1-O8808AB, 1-O8809AB and 3-1/8" Allen head pipe plugs)

1шт.

SCREW - 1/2" x 1-1/2" hex hd. cap, N.C. thread

4шт.

WASHER - 1/2" std. lock

4шт.
