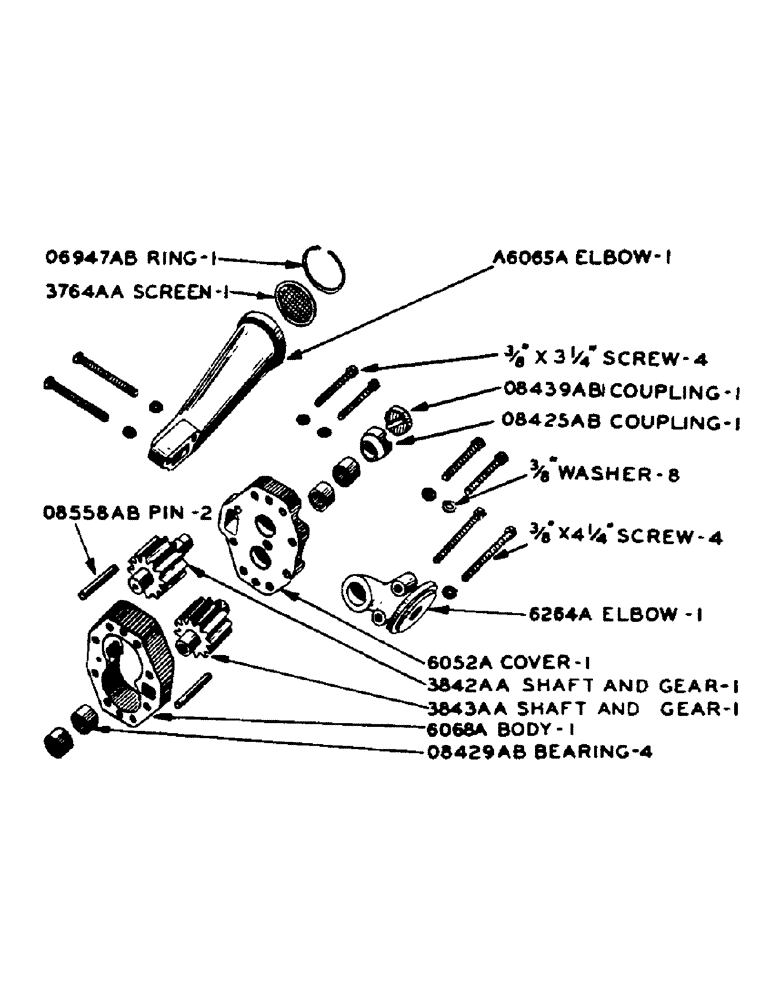

Запчасти Case IH DC-SERIES (153) - HYDRAULIC PUMP, 20 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

6052A

COVER - hydraulic pump body

1шт.

3/8" x 3-1/4" N.C. hex hd. cap screw w/lockwasher

4шт.

A6065A

ELBOW - hydraulic pump inlet

1шт.

3/8" x 4-1/2" N.C. hex hd. cap screw w/lockwasher

2шт.

6068A

X

BODY - hydraulic pump

1шт.

6264A

ELBOW - hydraulic pump filter

1шт.

3/8" x 4-1/4" N.C. hex hd. cap screw w/lockwasher

2шт.

O6947AB

X

SNAP RING - hydraulic pump screen retainer

1шт.

O8425AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O8429AB

NEEDLE BEARING,0.875" ID x 1.125" OD x 0.75"

BEARING - hydraulic pump shaft (Torrington no. GB-1412X)

4шт.

O8439AB1

X

COUPLING - pump drive

1шт.

O8558AB

PIN - dowel, hydraulic pump body

2шт.

3764AA

X

SCREEN - hydraulic pump intake, assembly

1шт.

3842AA

GEAR - drive, and shaft

1шт.

3843AA

GEAR - idler, and shaft

1шт.
