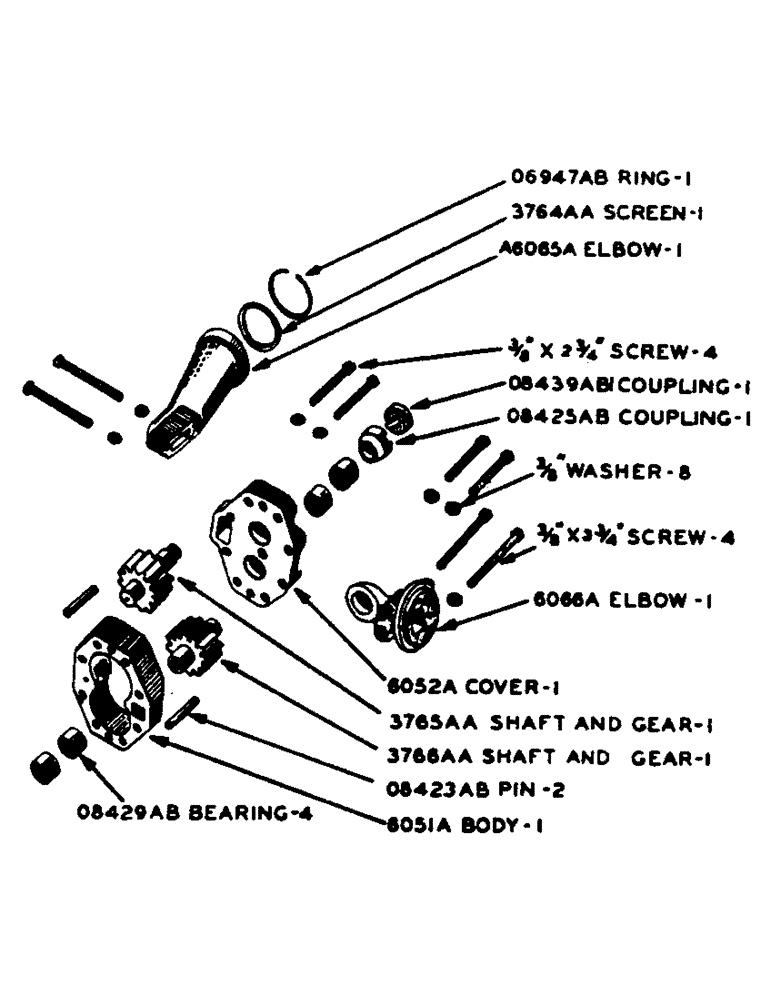

Запчасти Case IH DC-SERIES (152) - HYDRAULIC PUMP, 15 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

6051A

X

BODY - hydraulic pump

1шт.

6052A

COVER - hydraulic pump body

1шт.

SCREW - 3/8" x 2-3/4" hex hd. cap, N.C. thread

4шт.

WASHER - 3/8" std. lock

4шт.

A6065A

ELBOW - hydraulic pump inlet

1шт.

SCREW - 3/8" x 3-3/4" hex hd. cap, N.C. thread

2шт.

WASHER - 3/8" std. lock

2шт.

6066A

ELBOW - hydraulic pump filter

1шт.

SCREW - 3/8" x 3-3/4" hex hd. cap, N.C. thread

2шт.

WASHER - 3/8" std. lock

2шт.

O6947AB

X

SNAP RING - hydraulic pump screen retainer

1шт.

O8423AB

PIN - dowel, hydraulic pump body

2шт.

O8425AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O8429AB

NEEDLE BEARING,0.875" ID x 1.125" OD x 0.75"

BEARING - hydraulic pump shaft (Torrington no. GB1412X)

4шт.

O8439AB1

X

COUPLING - pump drive

1шт.

3764AA

X

SCREEN - hydraulic pump intake, assembly

1шт.

3765AA

DRIVE SHAFT AND GEAR - hydraulic pump

1шт.

3766AA

IDLER SHAFT AND GEAR - hydraulic pump

1шт.
