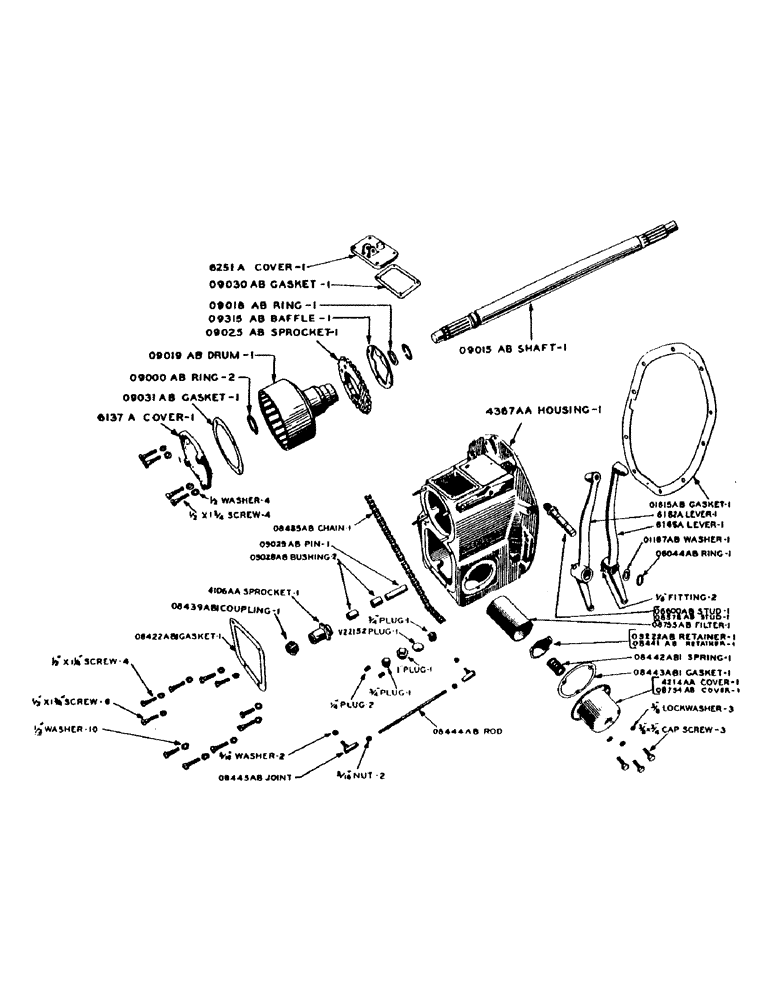

Запчасти Case IH DC-SERIES (148) - HYD. SINGLE & DUAL CONTROL UNIT, MAIN HOUSING & PUMP DRIVE- FOR SINGLE VALVE D, DC-3, DC-4, DO, DV (06) - POWER TRAIN

B12475

CHAIN (AG)

CHAIN - 20 links of no. 50 roller chain

2шт.

B12505

LINK

- connecting, for B12475 roller chain

1шт.

B12506

LINK

- offset, for B12475 roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, for B12475 roller chain

1шт.

6084A

LEVER - (Use 6211A)

1шт.

6135A

HOUSING - (Use 4367AA)

1шт.

6136A

COVER - (Use 6251A)

1шт.

6137A

COVER - PTO shaft opening

1шт.

1/2" x 1-3/4" N.C. hex hd. cap screw with lockwasher

4шт.

6148A

COVER - (Use A6148A)

1шт.

A6148A

COVER - hydraulic pump opening (D, DO, DV)

1шт.

1/2" x 1-1/2" N.C. hex hd. cap screw w/lockwasher (D, DO, DV)

4шт.

6165A

LEVER - hand, valve control, outer (D, DC-3, DC-4)

1шт.

1/8" str. Lincoln fitting no. 5000 (D, DC-3, DC-4)

1шт.

6211A

LEVER - hand, valve control, outer (DO, DV)

1шт.

1/8" str. Lincoln fitting no. 5000 (DO, DV)

1шт.

6251A

COVER - main housing top

1шт.

1/2" x 1-1/4" N.C. hex hd. cap screw w/lockwasher

4шт.

O1167AB

X

WASHER - hand lever stud

1шт.

O1615AB

X

GASKET - hydraulic main housing

1шт.

O6044AB

X

SNAP RING - hand lever stud

1шт.

O6600AB

STUD - valve control hand lever

1шт.

3/4" std. lockwasher

1шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8435AB

X

CHAIN - hydraulic pump drive (Use 2 - B12475 chains)

1шт.

O8439AB1

X

COUPLING - pump drive

1шт.

O8441AB

X

RETAINER - hydraulic pump filter (For tractors without Eagle hitch) (See O9222AB) (D, DC-4, DO, DV)

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8443AB1

X

GASKET - hydraulic pump filter cover

1шт.

O8444AB

ROD - hydraulic valve control

1шт.

5/16" N.F. hex jam nut

2шт.

O8445AB

X

JOINT - ball, hydraulic valve control rod

2шт.

5/16" std. lockwasher

2шт.

O8754AB

COVER - hydraulic pump filter (For tractors without Eagle hitch) (See 4214AA) (D, DC-4, DO, DV)

1шт.

3/8" x 3/4" N.C. hex hd. cap screw (D, DC-4, DO, DV)

3шт.

3/8" Shakeproof lockwasher, #1220 internal tooth (D, DC-4, DO, DV)

3шт.

O8755AB

X

FILTER - oil, hydraulic pump (3" O.D. x 4-1/4" long)

1шт.

O9025AB

SPROCKET - hydraulic pump drive

1шт.

3/8" x 3/4" N.F. hex hd. cap screw with lockwasher

4шт.

O9028AB

X

BUSHING - for 4106Aa sprocket

2шт.

O9029AB

X

PIN - hydraulic pump driven sprocket bearing

1шт.

O9030AB

X

GASKET - main housing top cover

1шт.

O9031AB

X

GASKET - PTO shaft opening cover

1шт.

O9222AB

X

RETAINER - hydraulic pump filter (For tractors with Eagle hitch) (See O8441AB) (D, DC-3, DC-4)

1шт.

O9223AB

HOSE - hydraulic valve to filter cover (3/8" I.D. x 13" long) (For tractors with Eagle hitch) (D, DC-3, DC-4)

1шт.

V22152

CAP

PLUG - hydraulic pump housing (1-1/2" dia.)

1шт.

VT3399

PLUG - hydraulic pump housing (1" dia.)

2шт.

4106AA

X

SPROCKET - hydraulic pump driven, with O9028AB bushings

1шт.

4214AA

COVER - hydraulic pump filter, with tube and elbow (For tractors with Eagle hitch) (See O8754AB) (D, DC-3, DC-4)

1шт.

3/8" x 3/4" N.C. hex hd. cap screw (D, DC-3, DC-4)

3шт.

3/8" Shakeproof lockwasher, #1220 internal tooth (D, DC-3, DC-4)

3шт.

4367AA

HOUSING - PTO and hydraulic pump (Includes housing with 1 - O9029AB pin, 2 - 1/4" sq. hd., 1 - 1/2" sq. hd., 1 - 3/4" sq. hd. and 1 - 1" sq. hd. pipe plugs, 1 - 3/4" magnetic plug and 2 - VT3399 plugs)

1шт.

1/2" x 1-1/4" N.C. hex hd. cap screw with lockwasher

4шт.

1/2" x 1-1/34" N.C. hex hd. cap screw with lockwasher

6шт.

1/8" - 45 degree Lincoln fitting no. 5200

1шт.

1/2" - 45 degree street elbow

1шт.

B12475

CHAIN (AG)

CHAIN - 20 links of no. 50 roller chain

2шт.

B12505

LINK

- connecting, for B12475 roller chain

1шт.

B12506

LINK

- offset, for B12475 roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, for B12475 roller chain

1шт.

6084A

LEVER - (Use 6211A)

1шт.

6135A

HOUSING - (Use 4367AA)

1шт.

6136A

COVER - (Use 6251A)

1шт.

6137A

COVER - PTO shaft opening

1шт.

1/2" x 1-3/4" hex hd. cap screw with lockwasher

4шт.

6148A

COVER - (Use A6148A)

1шт.

A6148A

COVER - hydraulic pump opening (D, DO, DV)

1шт.

1/2" x 1-1/2" N.C. hex hd. cap screw w/lockwasher (D, DO, DV)

4шт.

6165A

LEVER - hand, valve control, outer (D, DC-3, DC-4)

1шт.

1/8" str. Lincoln fitting no. 5000 (D, DC-3, DC-4)

1шт.

6182A

LEVER - hand, valve control, inner (D, DC-3, DC-4)

1шт.

1/8" str. Lincoln fitting no. 5000 (D, DC-3, DC-4)

1шт.

6211A

LEVER - hand, valve control, outer (DO, DV)

1шт.

1/8" str. Lincoln fitting no. 5000 (DO, DV)

1шт.

6212A

LEVER - hand, valve control, inner (DO, DV)

1шт.

1/8" str. Lincoln fitting no. 5000 (DO, DV)

1шт.

6251A

COVER - main housing top

1шт.

1/2" x 1-1/4" N.C. hex hd. cap screw w/lockwasher

4шт.

O1167AB

X

WASHER - for O8578AB stud (See O9639AB)

1шт.

O1615AB

X

GASKET - hydraulic main housing

1шт.

O6044AB

X

SNAP RING - for O8578AB stud (See O9639AB)

1шт.

O8422AB1

X

GASKET - hydraulic valve body

1шт.

O8435AB

X

CHAIN - hydraulic pump drive (Use 2 - B12475 chains)

1шт.

O8439AB1

X

COUPLING - pump drive

1шт.

O8441AB

X

RETAINER - hydraulic pump filter (For tractors without Eagle hitch) (See O9222AB) (D, DC-4, DO, DV)

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8443AB1

X

GASKET - hydraulic pump filter cover

1шт.

O8444AB

ROD - hydraulic valve control

2шт.

5/16" N.F. hex jam nut

4шт.

O8445AB

X

JOINT - ball, valve control rod

4шт.

5/16" std. lockwasher

4шт.

O8578AB

STUD - (Use 1 - O8578AB1 and 1 - O9639AB "E" ring)

1шт.

O8578AB1

STUD - dual valve control hand lever

1шт.

3/4" std. lockwasher

1шт.

O8754AB

COVER - hydraulic pump filter (For tractors without Eagle hitch) (See 4214AA) (D, DC-4, DO, DV)

1шт.

3/8" x 3/4" N.C. hex hd. cap screw (D, DC-4, DO, DV)

3шт.

3/8" Shakeproof lockwasher, #1220 internal tooth (D, DC-4, DO, DV)

3шт.

O8755AB

X

FILTER - oil hydraulic pump (3" O.D. x 4-1/4" long)

1шт.

O9025AB

SPROCKET - hydraulic pump drive

1шт.

3/8" x 3/4" N.F. hex hd. cap screw with lockwasher

4шт.

O9028AB

X

BUSHING - for 4106AA and 4507AA sprockets

2шт.

O9029AB

X

PIN - driven sprocket bearing

1шт.

O9030AB

X

GASKET - main housing top cover

1шт.

O9031AB

X

GASKET - PTO shaft opening cover

1шт.

O9222AB

X

RETAINER - hydraulic pump filter (For tractors with Eagle hitch) (See O8441AB) (D, DC-3, DC-4)

1шт.

O9223AB

HOSE - hydraulic valve to filter cover (3/8" I.D. x 13" long) (For tractors with Eagle hitch) (D, DC-3, DC-4)

1шт.

O9639AB

X

"E" RING - retaining, for O8578AB1 stud

1шт.

V22152

CAP

PLUG - hydraulic pump housing (1-1/2" dia.)

1шт.

VT3399

PLUG - hydraulic pump housing (1" dia.)

2шт.

4106AA

X

SPROCKET - driven, with 2 - O9028AB bushings, for 15 gal. per min. hydraulic pump (See 4507AA)

1шт.

4214AA

COVER - hydraulic pump filter, with tube and elbow (For tractors with Eagle hitch) (See O8754AB) (D, DC-3, DC-4)

1шт.

3/8" x 3/4" N.C. hex hd. cap screw (D, DC-3, DC-4)

3шт.

3/8" Shakeproof lockwasher, #1220 internal tooth (D, DC-3, DC-4)

3шт.

4367AA

HOUSING - PTO and hydraulic pump (Includes housing with 1 - O9029AB pin, 2 - 1/4", 1 - 1/2", 1 - 3/4" and 1 - 1" sq. hd. pipe plugs, 1 - 3/4" magnetic plug and 2 - VT3399 plugs)

1шт.

1/2" x 1-1/4" N.C. hex hd. cap screw with lockwasher

4шт.

1/2" x 1-3/4" N.C. hex hd. cap screw with lockwasher

6шт.

1/8" - 45 degree Lincoln fitting no. 5200

1шт.

1/2" - 45 degree street elbow

1шт.

4507AA

SPROCKET - driven, with 2 - O9028AB bushings, for 20 gal. per min. hydraulic pump (See 4106AA)

1шт.
