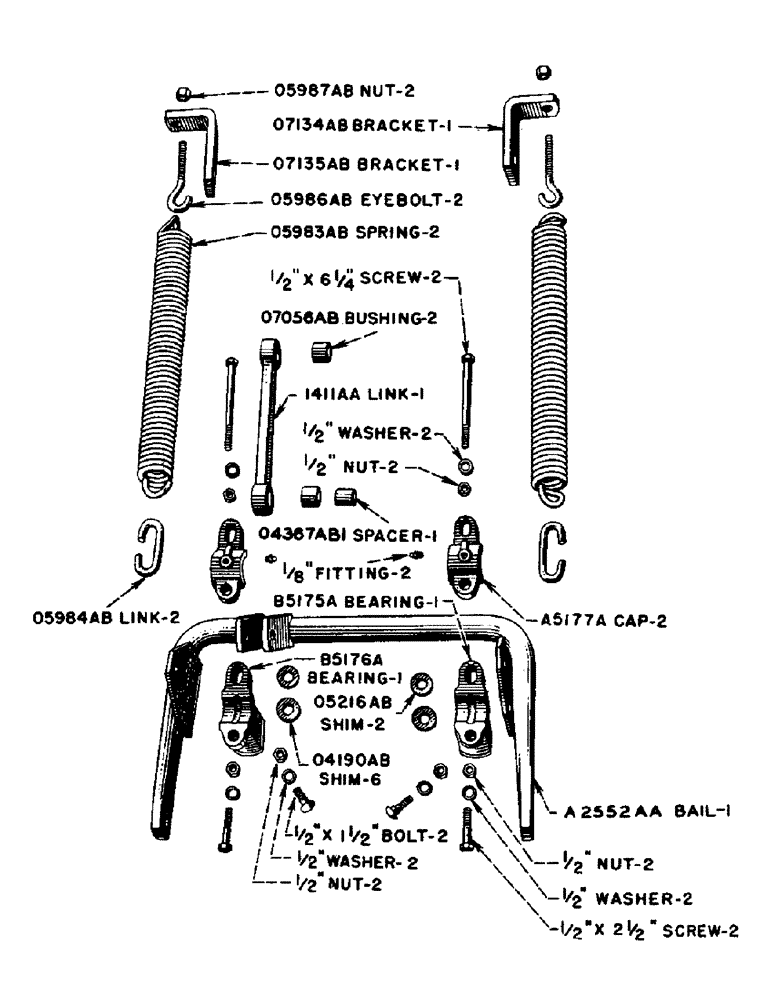

Запчасти Case IH DC-SERIES (144) - RAISING BAIL, FOR "DC" AND "DO" TRACTORS (06) - POWER TRAIN

A5175A

BEARING, raising bail, R.H., use B5175A

1шт.

B5175A

BEARING, raising bail, R.H.

1шт.

BOLT, 1/2" x 1-1/2" carriage

1шт.

WASHER, 1/2" standard lock

1шт.

A5176A

BEARING, raising bail, L.H., use B5176A

1шт.

B5176A

BEARING, raising bail, L.H.

1шт.

BOLT, 1/2" x 1-1/2" carriage

1шт.

WASHER, 1/2" standard lock

1шт.

A5177A

CAP, raising bail bearing

2шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.F. thread

2шт.

SCREW, 1/2" x 6-1/4" hexagon head cap, N.F. thread

2шт.

NUT, 1/2" hexagon, light, N.F. thread

4шт.

WASHER, 1/2" standard lock

4шт.

WASHER, 1/2" standard plain

2шт.

FITTING, 1/8" straight Lincoln, no. 5000

2шт.

O3816AB

SPACER, connecting link, prior to tractor no. 4904625 - see O4367AB1 (DC)

1шт.

O3817AB

X

BUSHING, connection link, prior to tractor no. 4904625 - use O7056AB (DC)

2шт.

O4190AB

SHIM, raising bail bearing, no. 22 gauge

6шт.

O4367AB1

SPACER, raising bail connecting link, tractor no. 4904625 and after - see O3816AB

1шт.

SCREW, 3/4" x 3" hexagon head cap, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

O4831AB

SPRING, raising bail, prior to tractor no. 4800000 - see O5983AB (DC)

2шт.

O5216AB

SHIM, raising bail bearing, 3/16" thick

2шт.

O5983AB

SPRING, raising bail, tractor no. 4800000 and after - see O4831AB

2шт.

O5984AB

LINK, raising bail spring

2шт.

O5986AB

EYEBOLT, raising bail spring

2шт.

O5987AB

NUT, eyebolt

2шт.

O7056AB

X

BUSHING, connecting link, tractor no. 4904625 and after - see O3817AB

2шт.

O7134AB

BRACKET, raising bail spring, R.H.

1шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.F. thread (With nut)

1шт.

O7135AB

BRACKET, raising bail spring, L.H.

1шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.F. thread (With nut)

1шт.

1411AA

LINK, connecting, with bushings (DC)

1шт.

2552AA

BAIL, raising, prior to tractor no. 4904625. Use 3466AA (DC)

1шт.

A2552AA

BAIL, raising, tractor no. 4904625 and after

1шт.

3446AA

BAIL, raising, with parts - furnished when 2552AA is ordered for repairs, prior to tractor no. 4904625 (Consists of: 1 - A2552AA bail, 1 - O4367AB1 spacer, 1 - 3/4" x 3" cap screw, 1 - 3/4" hex. nut, 1 - 3/4" lockwasher) (DC)

1шт.
