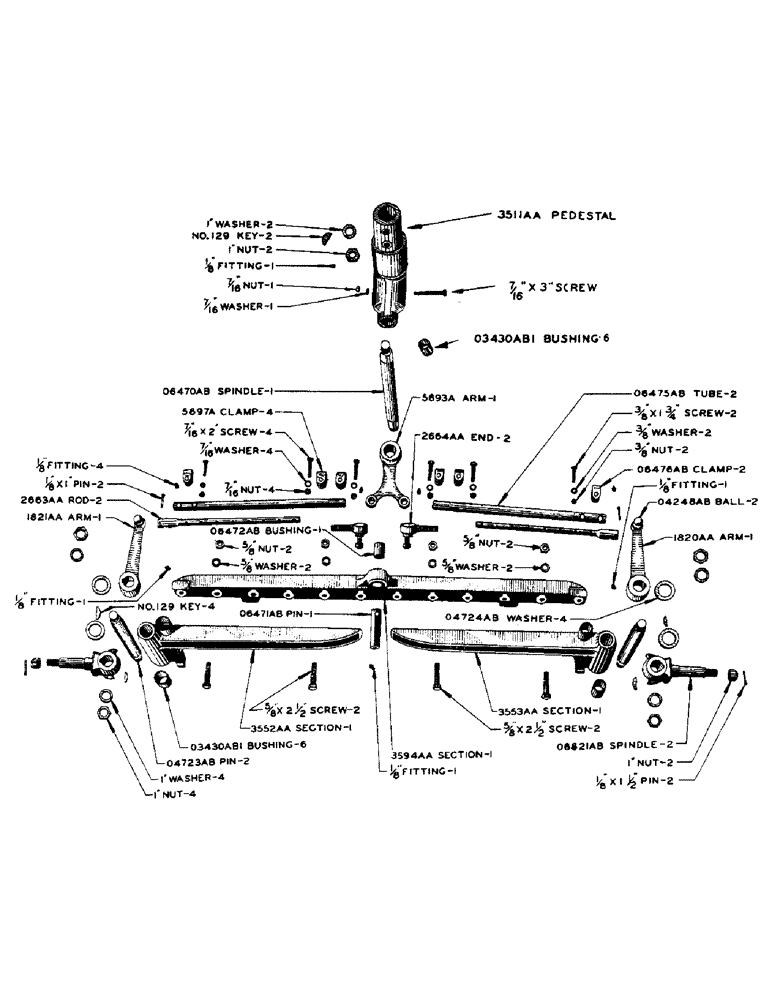

Запчасти Case IH DC-SERIES (118) - ADJUSTABLE FRONT AXLE, FOR "DC" TRACTOR (06) - POWER TRAIN

D4591A

BRACKET, front axle and radiator. Use 2887AA

1шт.

5306A

GOOSENECK. See A6146A. Use A4130AA

1шт.

5338A

ARM, front wheel spindle, L.H. Use 1820AA

1шт.

5339A

ARM, front wheel spindle, R.H. Use 1821AA

1шт.

5574A

ARM, upright steering spindle. Use 2865AA

1шт.

5688A

AXLE, front, outer section, R.H. Use 3552AA

1шт.

5689A

AXLE, front, outer section, L.H. Use 3553AA

1шт.

5690A

AXLE, front, center section. Use 3594AA

1шт.

5691A

PEDESTAL, front axle adjustable. Use 3511AA

1шт.

5692A

SPINDLE, front wheel. Use O6621AB

1шт.

5693A

ARM, front axle steering spindle, lower

1шт.

5694A

BRACKET, radius rod pivot. Use 4672AA

1шт.

RIVET, 1/2" x 2-1/4" round head

3шт.

5697A

X

CLAMP, front axle tie rod

4шт.

SCREW, 7/16" x 2" hexagon head cap, light, N.F. thread

4шт.

WASHER, 7/16" standard lock

4шт.

NUT, 7/16" hexagon, light, N.F. thread

4шт.

A6146A

GOOSENECK. See 5306A. Use A4130AB

1шт.

O906AB

WASHER, front axle pivot pin

4шт.

O1241AB

BALL, upright steering spindle arm

1шт.

O1670AB

PIN, front axle pivot, for C4591A bracket. Prior to tractor no. 4607924. See O7055AB

1шт.

PIN, 3/8" x 2" cotter

1шт.

O3017AB

SCREW, set, front axle pedestal

1шт.

NUT, 5/8" hexagon jam, N.C. thread

1шт.

O3430AB1

BUSHING, front axle king pin

6шт.

O4248AB

BALL, for 1820AA and 1821AA steering spindle arm

2шт.

O4252AB

SHIM, steering spindle adjusting

8шт.

O4723AB

PIN, front axle king

2шт.

KING, no. 129 Woodruff

4шт.

NUT, 1" hexagon jam, light, N.F. thread

4шт.

WASHER, 1" standard lock

4шт.

O4724AB

X

WASHER, thrust, front axle king pin

4шт.

O5696AB

BUSHING, front axle radius rod pivot pin

1шт.

O5818AB

X

STUD, front axle gooseneck clamp

4шт.

NUT, 3/4" hexagon, light, N.C. thread

4шт.

WASHER, 3/4" standard lock

4шт.

O6470AB

SPINDLE, front axle steering

1шт.

KEY, no. 129 Woodruff

2шт.

NUT, 1" hexagon jam, light, N.F. thread

2шт.

WASHER, 1" standard lock

2шт.

O6471AB1

PIN, front axle pivot

1шт.

FITTING, 1/8" straight, Lincoln no. 5000

1шт.

O6472AB

X

BUSHING, pivot pin

1шт.

O6475AB

TUBE, front axle tie rod

2шт.

O6476AB

X

CLAMP, front axle tie rod tube

2шт.

O6621AB

SPINDLE, front wheel. Prior to tractor no. 5313320. Use O8527AB with O1456AB cone, O8509AB cup, O8513AB seal and 3801AA retainer

2шт.

O7055AB1

PIN, front axle radius rod pivot, for D4591A bracket. See O1670AB

1шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.

O8527AB

SPINDLE, front wheel. Tractor no. 5313320 and after. See O6621AB

2шт.

NUT, 1" castle, light, N.F. thread

2шт.

PIN, 1/8" x 1-1/2" cotter

2шт.

1706AA

BRACKET, with guide, starting crank

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

1820AA

ARM, with ball, front wheel spindle, L.H.

1шт.

1821AA

ARM, with ball, front wheel spindle, R.H.

1шт.

2663AA

ROD, adjustable front axle notched tie

2шт.

FITTING, 1/8" straight Lincoln no. 5000

2шт.

2664AA

X

END, front axle tie rod tube

2шт.

FITTING, 1/8" straight Lincoln no. 5000

2шт.

PIN, 1/8" x 1" cotter

2шт.

A2852AA

ROD, front axle radius, with pivot bracket

1шт.

SCREW, 5/8" x 4" hexagon head cap, N.F. thread

2шт.

WASHER, 5/8" standard lock

2шт.

NUT, 5/8" hexagon, light, N.F. thread

2шт.

2865AA

ARM, upright steering spindle, with ball

1шт.

2887AA

BRACKET - front axle and radiator, with O7055AB pivot pin

1шт.

3511AA

PEDESTAL WITH BUSHIN FOR ADJUSTABLE FRONT AXLE

1шт.

NUT, 7/16" hexagon, light, N.F. thread

1шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.

SCREW, 7/16" x 3" hexagon head cap, light, N.F. thread

1шт.

WASHER, 7/16" standard lock

1шт.

3552AA

SECTION, front axle outer, R.H., with bushings

1шт.

SCREW, 5/8" x 2-1/2" hexagon head cap, N.F. thread

2шт.

NUT, 5/8" hexagon, light, N.F. thread

2шт.

WASHER, 5/8" standard lock

2шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.

3553AA

SECTION, front axle outer, L.H., with bushings

1шт.

SCREW, 5/8" x 2-1/2" hexagon head cap, N.F. thread

2шт.

NUT, 5/8" hexagon, light, N.F. thread

2шт.

WASHER, 5/8" standard lock

2шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.

3594AA

SECTION, front axle center, with bushings

1шт.

A4130AA

GOOSENECK WITH BUSHING FOR ADJUSTABLE FRONT AXLE

1шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.

4672AA

BRACKET - radius rod pivot, with O5696AB bushing

1шт.
