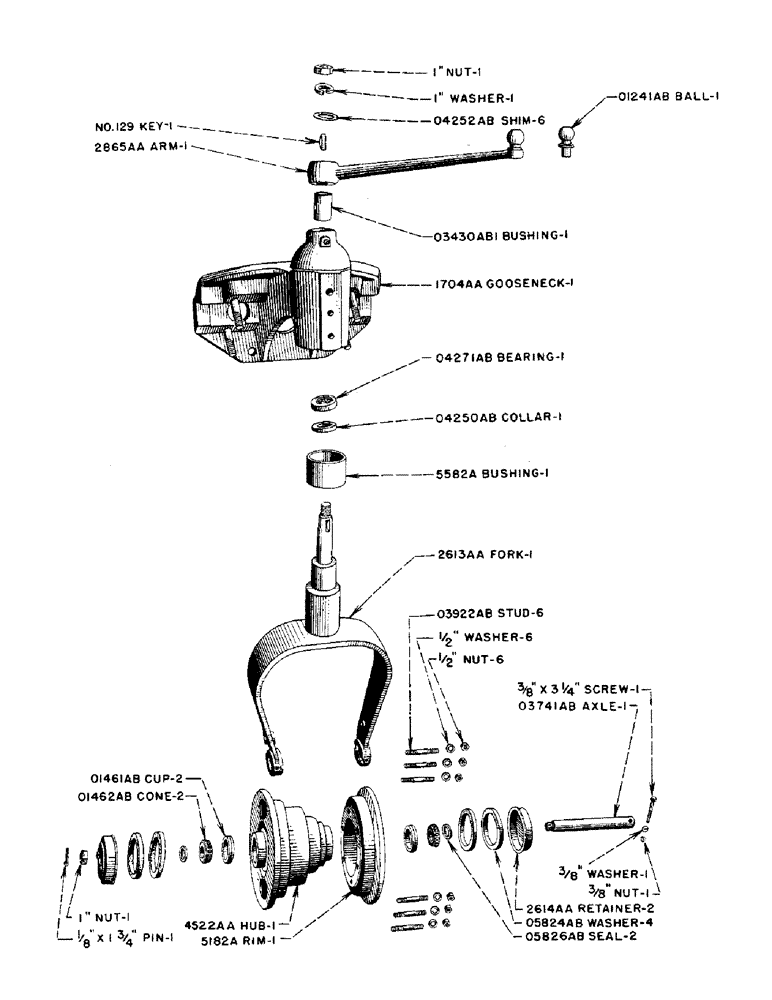

Запчасти Case IH DC-SERIES (106) - SINGLE FRONT WHEEL FOR "DC" TRACTOR, SINGLE FRONT WHEEL FORK AND SPINDLE FOR "DC" TRACTOR (06) - POWER TRAIN

5306A

GOOSENECK, front wheel. Use 1704AA

1шт.

FITTING, 1/8" straight, Lincoln no. 5000

1шт.

5574A

ARM, steering spindle. Use 2865AA

1шт.

5582A

BUSHING, gooseneck, lower

1шт.

5645A

FORK, front wheel. Use 2613AA

1шт.

SCREW, 3/8" x 3-1/4" hexagon head cap, N.F. thread

1шт.

NUT, 3/8" hexagon, light, N.F. thread

1шт.

WASHER, 3/8" standard lock

1шт.

O1241AB

BALL, steering arm

1шт.

O1461AB

X

CUP, bearing, front wheel. Timken no. 14274

2шт.

O1462AB

X

CONE, bearing, front wheel. Timken no. 14125

2шт.

O3430AB1

BUSHING, gooseneck, upper

1шт.

O3741AB

AXLE, front wheel

1шт.

NUT, 1" slotted shear, N.F. thread

1шт.

PIN, 1/8" x 1-3/4" cotter

1шт.

O4250AB

COLLAR, bearing, steering spindle

1шт.

O4252AB

SHIM, adjusting, steering spindle

6шт.

O4271AB

X

BEARING, thrust, steering spindle. Timken T-139

1шт.

O5824AB

FELT

WASHER, felt, front wheel hub

4шт.

O5826AB

SEAL

axle shaft

2шт.

1704AA

GOOSENECK, with bushings

1шт.

1706AA

BRACKET, starting crank, and guide

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

2613AA

FORK, with spindle

1шт.

KEY, no. 129 Woodruff

1шт.

NUT, 1" hexagon jam, N.F. thread

1шт.

WASHER, 1" standard lock

1шт.

WASHER, 1" plain

1шт.

2614AA

RETAINER, felt

2шт.

2865AA

ARM, steering sprindle, with ball

1шт.

5182A

RIM, front wheel

1шт.

5646A

HUB, front wheel. Use 4522AA

1шт.

O1461AB

X

CUP, front wheel inner and outer bearing

2шт.

O3922AB

STUD, front wheel

6шт.

NUT, 1/2" hexagon, light, N.F. thread

6шт.

WASHER, 1/2" standard lock

6шт.

O5824AB

FELT

WASHER, felt, front wheel hub

4шт.

A1407AA

WHEEL, front, complete, for 7.50 x 10 pneumatic tire. Consists of: 1 - 2611AA, 2 - 2614AA, 4 - O5824AB, and 1 - 1/8" straight Lincoln fitting no. 5000

1шт.

4522AA

HUB, with bearing cups. Consists of: 1 - 5646A, 2 - O1461AB, 6 - O3922AB, 6 - 1/2" standard hexagon nut, light, N.F. thread, and 6 - 1/2" standard lockwashers

1шт.

2614AA

RETAINER, felt

2шт.

5647A

WHEEL, cast front. Use 2612AA

1шт.

FITTING, 1/8" straight Lincoln, no. 5000

1шт.

O1461AB

X

CUP, front wheel inner and outer bearing

2шт.

O5824AB

FELT

WASHER, felt, front wheel hub

4шт.

2612AA

WHEEL, with bearing cups. Consists of: 1 - 5647A and 2 - O1461AB

1шт.

2614AA

RETAINER, felt

2шт.
