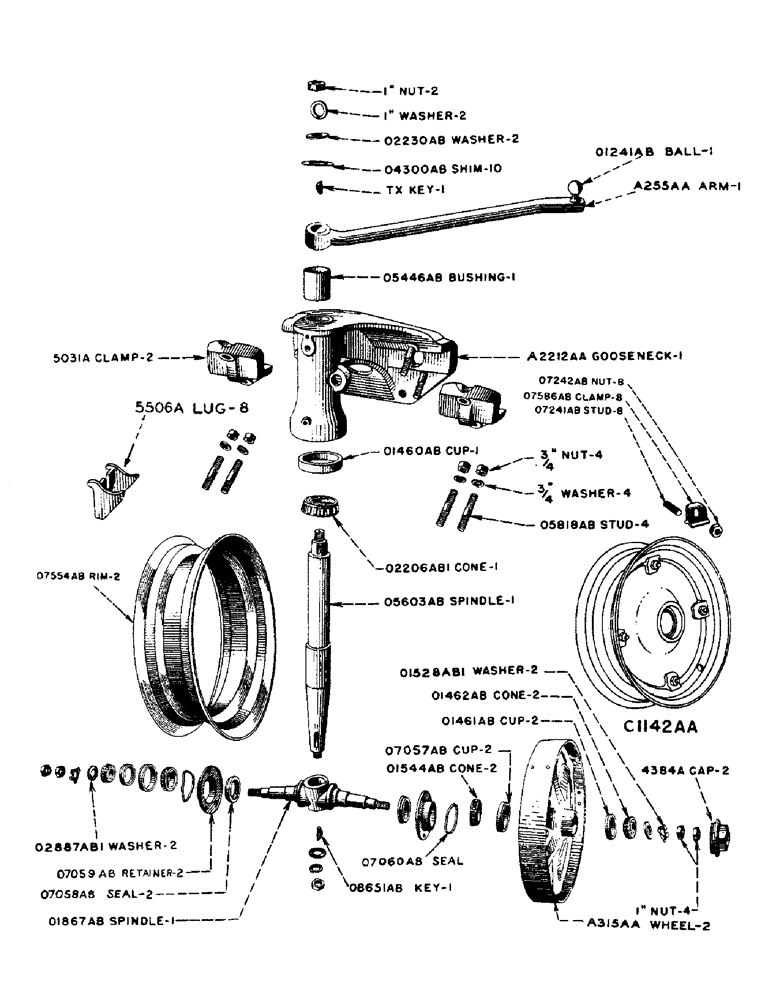

Запчасти Case IH DC-SERIES (102) - DUAL FRONT WHEEL AND SPINDLE, FOR "DC" TRACTOR (06) - POWER TRAIN

4384A

X

CAP, front wheel hub

2шт.

C4691A

GOOSENECK, front axle. Use A2212AA

1шт.

5031A

CLAMP, gooseneck

2шт.

O1241AB

BALL, steering arm

1шт.

O1460AB

BEARING, CUP

CUP, gooseneck bearing, Timken no. 453A

1шт.

O1462AB

X

CONE, front wheel outer bearing, Timken no. 14125

2шт.

O1528AB1

X

WASHER, lock, steering spindle nut

2шт.

O1544AB

X

CONE, front wheel inner bearing, Timken no. 358

2шт.

O1867AB

SPINDLE, front wheel

1шт.

NUT, 1" hexagon jam, light, N.F. thread

4шт.

O2159AB1

COLLAR, steering spindle

1шт.

O2206AB1

CONE

gooseneck bearing, Timken no. 462

1шт.

O2230AB

WASHER, steering spindle

2шт.

O2887AB1

X

WASHER, front wheel spindle

2шт.

O4300AB

SHIM, steering spindle, between steering spindle arm and gooseneck

10шт.

O5446AB

X

BUSHING, gooseneck

1шт.

O5603AB

SPINDLE, front wheel steering

1шт.

KEY, no. TX Woodruff

1шт.

NUT, 1" hexagon, jam, N.F. thread

2шт.

WASHER, 1" standard lock

2шт.

O5818AB

X

STUD, gooseneck clamp

4шт.

NUT, 3/4" hexagon, light, N.F. thread

4шт.

WASHER, 3/4" standard lock

4шт.

O7058AB

X

SEAL, front wheel

2шт.

O7059AB

X

RETAINER, front wheel seal

2шт.

SCREW, 1/4" x 5/8" flat head machine

10шт.

O7060AB

X

SEAL, front wheel retainer

2шт.

O8651AB

X

KEY, Woodruff, for O5603AB spindle

1шт.

A255AA

ARM, steering, with ball

1шт.

A2212AA

GOOSENECK, front axle, with bushing

1шт.

SCREW, 5/8" x 3/4" hexagon head cap, N.C. thread

1шт.

SCREW, 5/8" x 1-3/4" hexagon head cap, N.C. thread

2шт.

SCREW, 3/4" x 2" hexagon head cap, N.C. thread

2шт.

WASHER, 5/8" standard lock

1шт.

WASHER, 3/4" standard lock

2шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.
