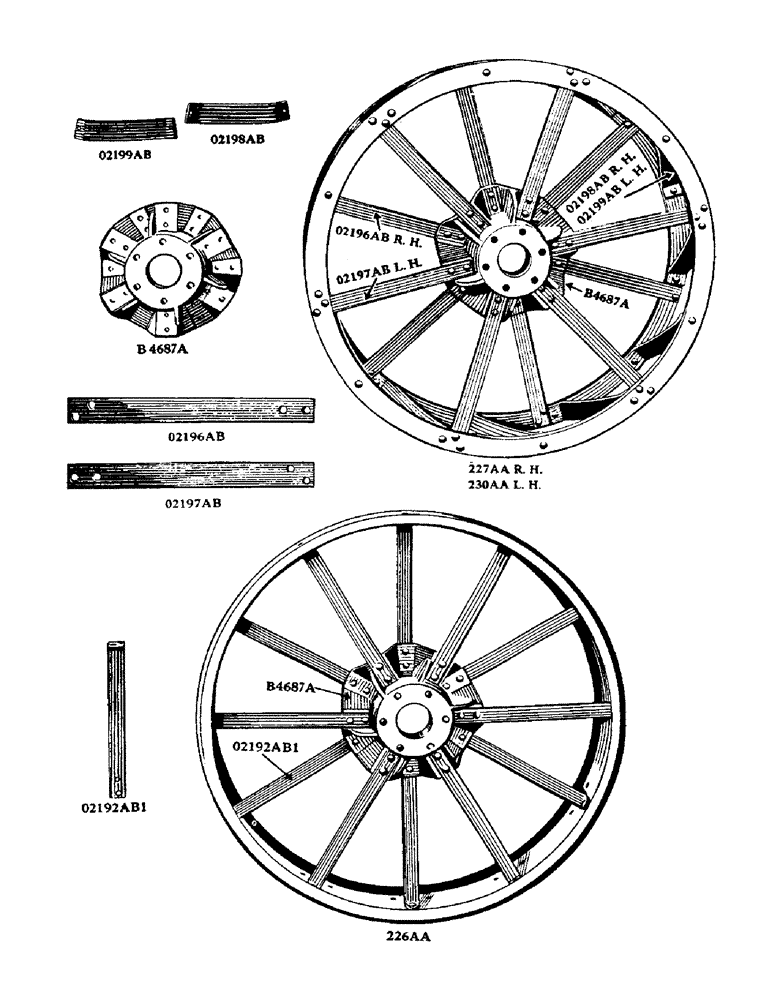

Запчасти Case IH DC-SERIES (087) - SOLID TYPE AND OPEN TYPE STEEL REAR WHEELS, FOR "DC" TRACTORS, PRIOR TO NUMBER 4607033 (06) - POWER TRAIN

B4687A

HUB, rear wheel

2шт.

O2191AB

TIRE, rear wheel, for solid type wheel

2шт.

O2192AB1

SPOKE, solid type rear wheel

24шт.

RIVET, 1/2" x 2-1/8" round head

48шт.

RIVET, 1/2" x 1-1/8" round head

48шт.

O2196AB

SPOKE, open type rear wheel, R.H.

12шт.

RIVET, 1/2" x 1-7/8" round head

24шт.

RIVET, 1/2" x 2-1/8" round head

24шт.

O2197AB

SPOKE, open type rear wheel, L.H.

12шт.

RIVET, 1/2" x 1-7/8" round head

24шт.

RIVET, 1/2" x 2-1/8" round head

24шт.

O2198AB

BRACE, open type rear wheel, R.H.

12шт.

RIVET, 1/2" x 2-1/8" round head

24шт.

O2199AB

BRACE, open type rear wheel, L.H.

12шт.

RIVET, 1/2" x 2-1/8" round head

24шт.

226AA

WHEEL, rear, solid type

2шт.

227AA

WHEEL, rear, open type, R.H.

1шт.

230AA

WHEEL, rear, open type, L.H.

1шт.

A20331

KIT

BOLT, w/hex. nut and lockwasher

8шт.

5557A

CAP, rear, wheel hub

2шт.

5835A

HUB, rear wheel, use 3044AA

1шт.

O2191AB

TIRE, rear wheel

2шт.

O2192AB1

SPOKE, rear wheel

24шт.

RIVET, 1/2" x 1-1/8" round head

48шт.

RIVET, 1/2" x 2-1/8" round head

48шт.

3044AA

HUB, rear wheel

2шт.

3052AA

WHEEL, sliding type 8" x 48" steel rear

2шт.
