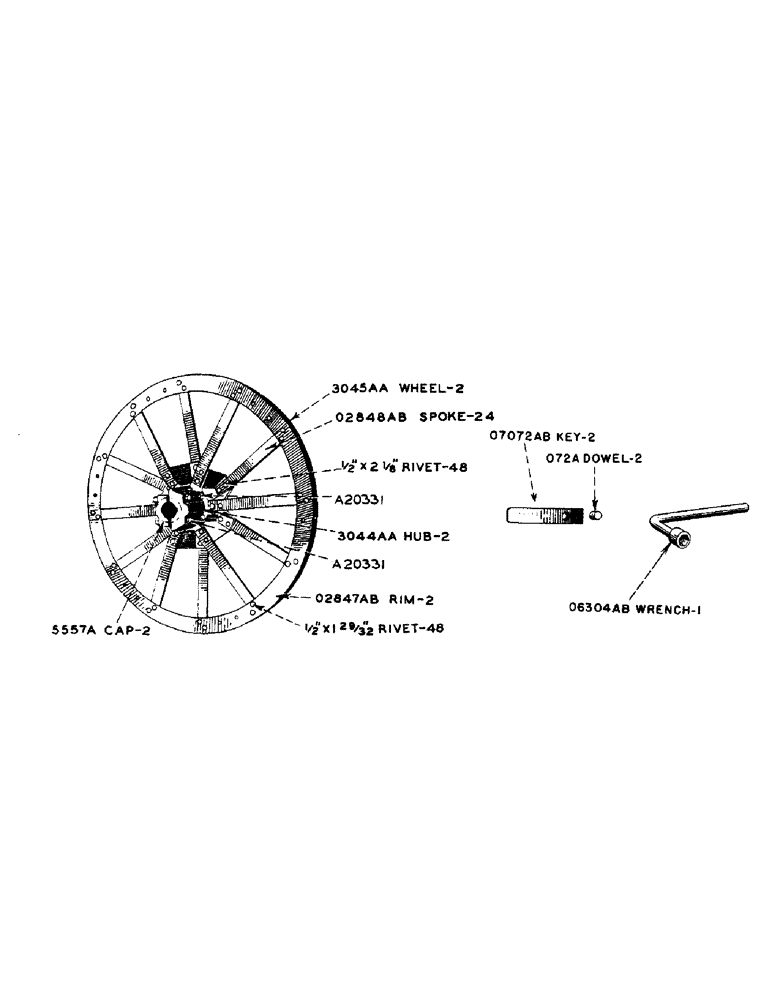

Запчасти Case IH DC-SERIES (086) - STEEL REAR WHEELS, FOR "DC" TRACTOR NUMBER 4607033 AND AFTER (06) - POWER TRAIN

A20331

KIT

BOLT, with hex. nut and lockwasher

8шт.

5557A

CAP, rear wheel hub

2шт.

5835A

HUB, rear wheel, use 3044AA

1шт.

O72A

DOWEL, rear axle hub key

2шт.

O2847AB

RIM, rear wheel

2шт.

O2848AB

SPOKE, rear wheel

24шт.

RIVET, 1/2" x 1-29/32" round pointed

48шт.

RIVET, 1/2" x 2-1/8" round head

48шт.

O6304AB

WRENCH, rear wheel hub socket

1шт.

O7072AB

KEY, rear wheel hub

2шт.

O7158AB

X

RING, snap, for wheel on rear axle shaft

2шт.

3044AA

HUB, rear wheel, with cap and bolts

2шт.

3045AA

PLATE

WHEEL COMPLETE, narrow rim type, rear

2шт.
