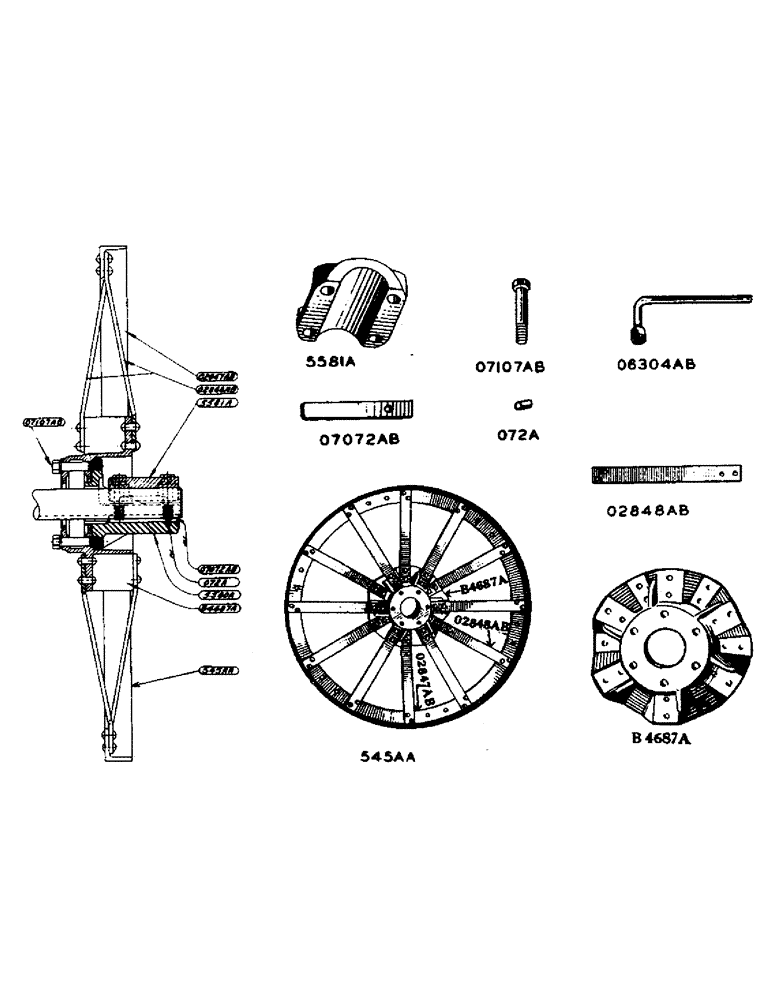

Запчасти Case IH DC-SERIES (085) - STEEL REAR WHEELS, FOR "DC" TRACTOR PRIOR TO NUMBER 4607033 (06) - POWER TRAIN

B4687A

HUB, rear wheel

2шт.

5580A

HUB, sliding steel wheel adapter - Use 2875AA

1шт.

5581A

CAP, sliding steel wheel adapter hub, see 2875AA

2шт.

SCREW, 7/8" x 3-1/2" hexagon head cap, N.F. thread

8шт.

WASHER, 7/8" standard lock

8шт.

O72A

DOWEL, rear wheel hub key

2шт.

O2847AB

RIM, narrow type rear wheel

2шт.

O2848AB

SPOKE, narrow type rear wheel

24шт.

RIVET, 1/2" x 1-29/32" round head pointed

48шт.

RIVET, 1/2" x 2-1/8" round head

48шт.

O6304AB

WRENCH, for O7107AB screw

1шт.

O7072AB

KEY, rear wheel hub

2шт.

O7107AB

SCREW, steel wheel adapter hub flange

12шт.

WASHER, 3/4" lock

12шт.

O7108AB

WRENCH, for 7/8" x 3-1/2" screw in 5580A hub

1шт.

545AA

WHEEL, rear, narrow rim type

2шт.

2875AA

HUB, sliding steel wheel adapter, with cap and bolts

2шт.
