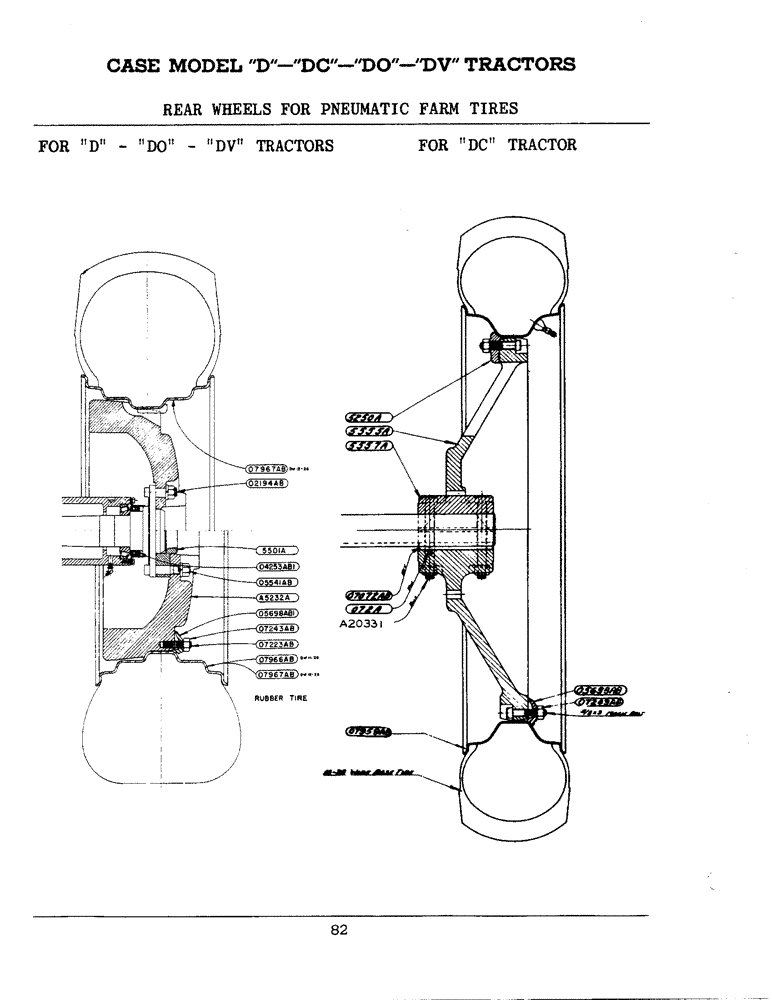

Запчасти Case IH DC-SERIES (082) - REAR WHEELS FOR PNEUMATIC FARM TIRES, FOR "DC" TRACTOR (06) - POWER TRAIN

A20331

KIT

BOLT - rear wheel hub, with 3/4" N.F. hex nut and lockwasher

8шт.

5250A

LUG - locating, for rear wheel

12шт.

5555A

WHEEL - rear, spoke type (Use A2856AA)

1шт.

A5555A

WHEEL - rear (Use A2856AA)

1шт.

5557A

CAP - rear wheel hub for 5555A wheel

2шт.

6242A

CAP - hub for A5555A wheel

2шт.

O5698AB1

X

CLAMP - rear wheel rim

12шт.

O7243AB

X

NUT - rear wheel rim stud

24шт.

O7958AB

RIM - rear wheel (DW8-38 Goodyear wide base deep well rim, with drivers) For 9-38 tires

2шт.

O7959AB

RIM - rear wheel (DW9-38 Goodyear wide base rim, with drivers) For 10-38 tires

2шт.

O7960AB

RIM - rear wheel (DW10-38 Goodyear wide base rim, with drivers) For 11-38 tires

2шт.

O8203AB

RIM - rear wheel (DW11-38 Goodyear wide base rim, with drivers) For 12-38 tires

2шт.

A2856AA

WHEEL - rear, with hub cap, less rim

2шт.

BOLT - 5/8" x 3" machine, less nut

24шт.

A5232A

WHEEL - rear (Not bored for brakes)

2шт.

5354A

WHEEL - rear (Bored for brakes) (D)

2шт.

O2194AB

BOLT - wheel flange (See O5541AB and O8819AB) (D, DO)

12шт.

NUT - 3/4" hex., light, N.F. thrd. w/lockwasher (D, DO)

12шт.

O5541AB

BOLT - wheel flange (Used with A5232A wheels when 5501A extension hub is used) (See O8819AB)

12шт.

NUT - 3/4" hex., light, N.F. thrd. w/lockwasher

12шт.

O5698AB1

X

CLAMP - wheel rim

12шт.

O7223AB

X

STUD - wheel rim

12шт.

O7243AB

X

NUT - wheel rim stud

12шт.

O7965AB

RIM - wheel (DW10-26 Goodyear wide base rim, with drivers) For A5232A rear wheel (D, DO)

2шт.

O7966AB

RIM - wheel (DW11-26 Goodyear wide base deep well rim, with drivers) For A5232A rear wheel (D, DV)

2шт.

O7967AB

RIM - wheel (DW12-26 Goodyear wide base deep well rim, with drivers) For A5232A or 5354A rear wheel

2шт.

O8819AB

BOLT - wheel flange (Used with A5232A wheels when A4825A extension hub is used) (D)

12шт.

NUT - 3/4" hex., light, N.F. thrd. w/lockwasher (D)

12шт.
