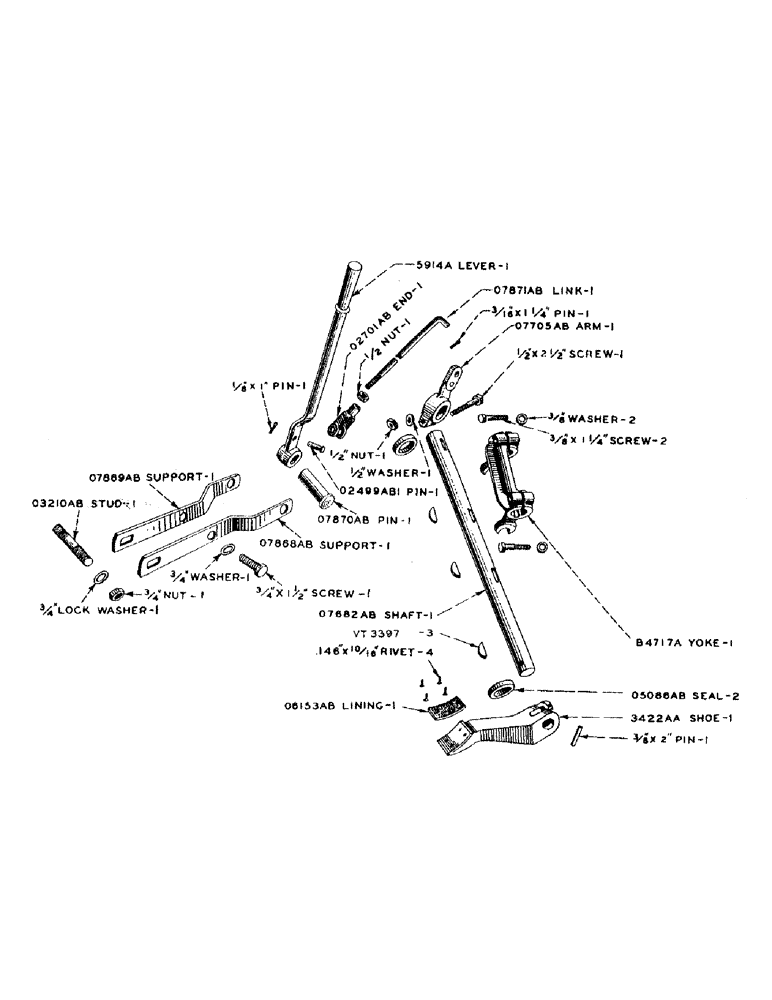

Запчасти Case IH DC-SERIES (053) - CLUTCH THROWOUT PARTS, FOR "DC" TRACTOR NUMBER 481099 AND AFTER (06) - POWER TRAIN

A21104

LINING

S - set of, with rivets

1шт.

4717A

X

YOKE, clutch throwout - Use B4717A

1шт.

A4717A

X

YOKE, clutch throwout - Use B4717A

1шт.

B4717A

X

YOKE, clutch throwout

1шт.

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

5566A

LEVER, clutch throwout hand. Prior to tractor no. 4818099. See 5914A

1шт.

FITTING, 1/8" straight Lincoln, no. 5000

1шт.

5569A

SHOE, belt pulley brake - Use 2848AA

1шт.

5914A

LEVER, clutch throwout hand. Tractor no. 4818099 and after, See 5566A

1шт.

FITTING, 1/8" straight Lincoln, no. 5000

1шт.

5916A

SHOE BELT PULLEY BRAKE - Use 3422AA

1шт.

O2499AB1

X

PIN, throwout link yoke end

1шт.

PIN, 1/8" x 1" cotter

1шт.

O2701AB

X

END, throwout link yoke

1шт.

O3210AB

STUD, clutch hand lever bearing support, rear end. Tractor no. 4818099 and after

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

O5086AB

X

SEAL, oil, clutch throwout shaft

2шт.

O6148AB

ARM, clutch throwout. Prior to tractor no. 4818099 - Use O7705AB

1шт.

O6152AB

RING, snap, for O7088AB hand lever stud. Prior to tractor no. 4818099

1шт.

O6153AB

X

LINING, belt pulley brake shoe - Use A21104

1шт.

RIVET, .146 x 10/16" brass tubular countersunk No. 2561

4шт.

O7087AB

SHAFT, clutch throwout. Prior to tractor no. 4818099 - See O7682AB

1шт.

PIN, 3/8" x 2" type 5 groove

1шт.

O7088AB

X

STUD, clutch throwout hand lever. Prior to tractor no. 4818099 - See O7870AB

1шт.

O7089AB

LINK, clutch throwout. Prior to tractor no. 4818099 - See O7871AB

1шт.

NUT, 1/2" hexagon, light, jam, N.F. thread

1шт.

PIN, 3/16" x 1-1/4" cotter

1шт.

O7682AB

SHAFT, clutch throwout. Tractor no. 4818099 and after - See O7087AB

1шт.

KEY, no. 15 Woodruff

3шт.

PIN, 3/8" x 2" type 5 groove

1шт.

O7705AB

ARM, clutch throwout. Tractor no. 4818099 and after - See O6148AB

1шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.F. thread

1шт.

NUT, 1/2" hexagon, light, N.F. thread

1шт.

WASHER, 1/2" standard lock

1шт.

O7868AB

SUPPORT, bearing, clutch throwout hand lever; R.H.

1шт.

SCREW, 3/4" x 1-1/2" hexagon head cap, N.C. thread

1шт.

WASHER, 3/4" standard lock

1шт.

O7869AB

SUPPORT, bearing, clutch throwout hand lever; L.H.

1шт.

O7870AB

PIN, clutch throwout hand lever bearing tractor no. 4818099 and after - See O7088AB

1шт.

O7871AB

LINK, clutch throwout. Tractor no. 4818099 and after - See O7089AB

1шт.

NUT, 1/2" hexagon, light, jam, N.F. thread

1шт.

PIN, 3/16" x 1-1/4" cotter

1шт.

VT3397

KEY, no. 15 Woodruff for O7087AB shaft

3шт.

2848AA

SHOE, belt pulley brake, with lining. Prior to tractor no. 4818099 - See 3422AA

1шт.

SCREW, 3/8" x 1-1/2" flat point set

2шт.

NUT, 3/8" hexagon, jam, N.C. thread

2шт.

3422AA

SHOE, belt pulley brake, with lining. Tractor no. 4818099 and after - See 2848AA

1шт.

SCREW, 3/8" x 1-1/2" flat point set

2шт.

NUT, 3/8" hexagon, jam, N.C. thread

2шт.

3439AA

SET OF PARTS USED AS FIELD CHANGE, to change stud that fastens clutch throwout hand lever to late style. Tractor no. 4818099 to no. 4906109 inclusive Consists of

1шт.

O3210AB

STUD

1шт.

O7870AB

PIN

1шт.

O7871AB

LINK

1шт.

O7868AB

SUPPORT

1шт.

O7869AB

SUPPORT

1шт.

SCREW, 3/4" x 1-1/2" hexagon head cap, N.C. thread

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.
