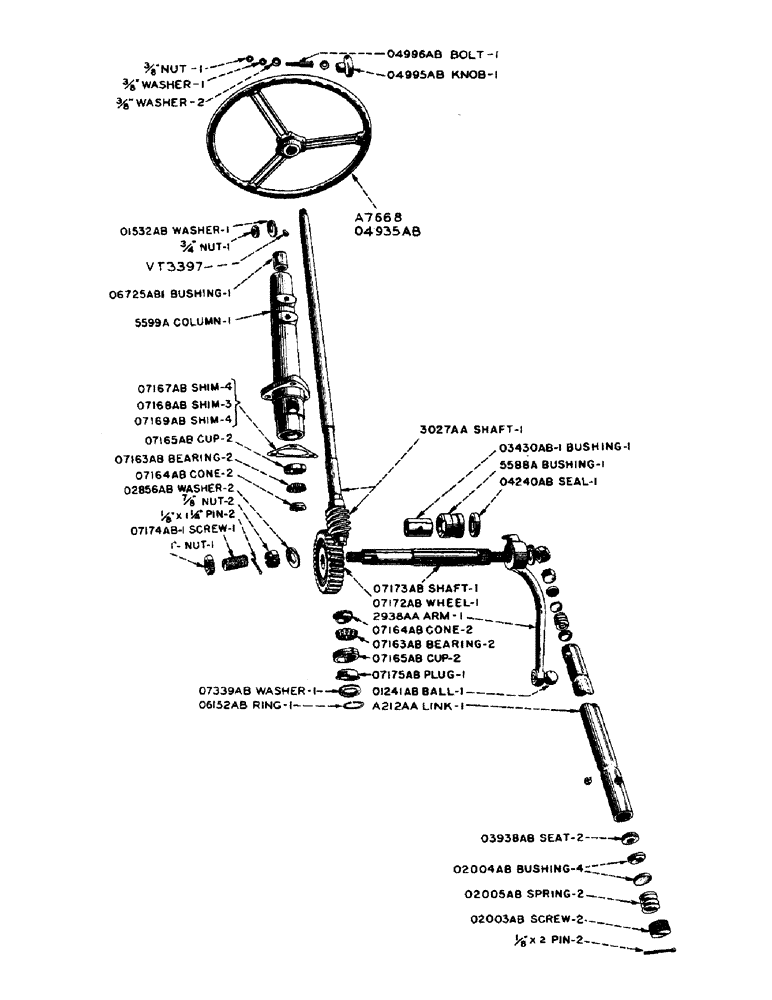

Запчасти Case IH DC-SERIES (132) - STEERING GEAR, FOR "DC" TRACTORS NUMBER 4607033 AND AFTER (05) - STEERING

A7668

WHEEL

steering

1шт.

5588A

BUSHING, outer; steering drop arm shaft

1шт.

5599A

COLUMN, steering shaft

1шт.

SCREW, 1/2" x 3/4" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

3шт.

O1241AB

BALL, steering arm

1шт.

O1532AB

WASHER, steering shaft

1шт.

O2003AB

X

SCREW, adjusting, steering gear drag link

2шт.

PIN, 1/8" x 2" cotter

1шт.

O2004AB

BEARING, steering gear drag link

4шт.

O2005AB

X

SPRING, steering gear drag link

2шт.

O2856AB

WASHER, steering worm sheel shaft

2шт.

O3430AB1

BUSHING, steering worm shaft, inner

1шт.

O3938AB

X

SEAT AND SPACER, drag link

2шт.

O4240AB

X

SEAL, oil, steering drop arm shaft

1шт.

O4935AB

X

WHEEL, steering. Use A7668

1шт.

O4995AB

X

KNOB, for O4935AB steering wheel

1шт.

O4996AB

BOLT, for O4495AB knob

1шт.

NUT, 3/8" hexagon, regular, jam, N.C. thread

1шт.

WASHER, 3/8" standard lock

1шт.

WASHER, 3/8" plain

2шт.

O6152AB

RING, snap, steering worm bearing retainer washer

1шт.

O6725AB1

X

BUSHING, steering shaft column

1шт.

FITTING, 1/8" straight Lincoln

1шт.

O7163AB

X

ROLLER ASSEMBLY, steering gear bearing, Timken no. 11BC

2шт.

O7164AB

X

CONE, steering gear bearing, Timken no. 12CB

2шт.

O7165AB

X

CUP, steering gear bearing, Timken no. 13C

2шт.

O7167AB

SHIM, steering column, .003" thick

4шт.

O7168AB

SHIM, steering column, .005" thick

3шт.

O7169AB

SHIM, steering column, no. 30 gauge thickness

4шт.

O7172AB

WHEEL, steering worm

1шт.

O7173AB

SHAFT, steering drop arm

1шт.

NUT, 7/8" hexagon, castle, light, N.F. thread

2шт.

PIN, 1/8" x 1-1/4" cotter

2шт.

O7174AB1

SCREW, adjusting, steering drop arm shaft

1шт.

NUT, 1" hexagon, jam, light, N.F. thread

1шт.

O7175AB

PLUG, steering column end

1шт.

O7339AB

WASHER, steering worm bearing retainer

1шт.

VT3397

KEY - Woodruff, steering, Serial Range: wheel-shaft

1шт.

A212AA

LINK, steering drag DC3

1шт.

FITTING, 1/8" straight Lincoln, no. 5000

2шт.

2844AA

LINK, steering drag DC4

1шт.

2851AA

ARM, steering drop, with ball DC4

1шт.

2938AA

ARM, steering drop, with ball DC3

1шт.

3027AA

SHAFT AND WORM, steering wheel

1шт.

NUT, 3/4" hexagon, jam, light, N.F. thread

1шт.
