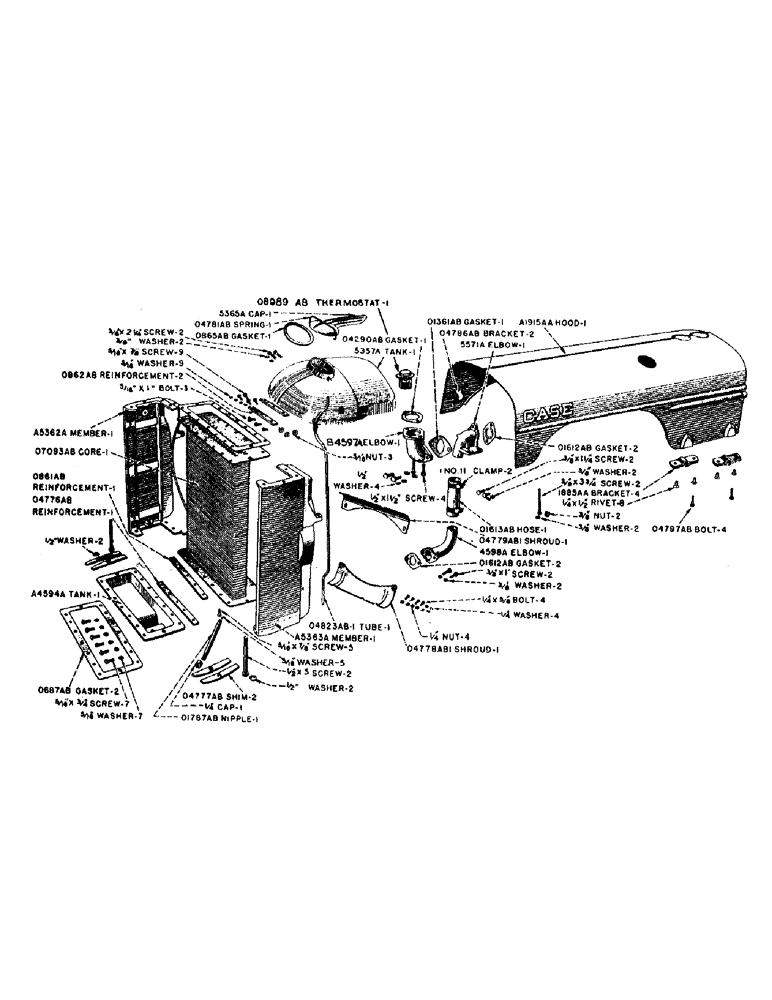

Запчасти Case IH DC-SERIES (040) - RADIATOR AND HOOD, D, DC, DO, DV (02) - ENGINE

A4594A

TANK, radiator, lower

1шт.

SCREW - 5/16" x 3/4" hex. hd. cap, N.C. thread with lockwasher

7шт.

SCREW - 1/2" x 5" hexagon head cap, N.C. thread with lockwasher

2шт.

B4597A

X

ELBOW, radiator inlet (Will accomodate thermostat)

1шт.

SCREW - 1/2" x 1-1/2" hex. hd. cap, N.C. thread with lockwasher

4шт.

4598A

ELBOW, radiator outlet

1шт.

SCREW - 3/8" x 1" hex. hd. cap, N.C. thread with lockwasher

2шт.

5357A

TANK, top radiator

1шт.

SCREW, 3/8" x 2-1/4" round head machine with lockwasher

2шт.

A5362A

MEMBER, radiator side, R.H.

1шт.

BOLT, 5/16" x 1-1/4" machine with lockwasher

2шт.

SCREW - 5/16" x 7/8" hex. hd. cap, N.C. thread with lockwasher

3шт.

A5363A

MEMBER, radiator side, L.H.

1шт.

BOLT, 5/16" x 1-1/4" machine with lockwasher

2шт.

SCREW - 5/16" x 7/8" hex. hd. cap, N.C. thread with lockwasher

3шт.

5365A

CAP, radiator

1шт.

A5414A

X

ELBOW, radiator inlet (Use B4597A)

1шт.

5571A

ELBOW, cylinder inlet

1шт.

SCREW - 3/8" x 1-1/4" hex. hd. cap, N.C. thread with lockwasher

2шт.

O687AB

GASKET

radiator header

2шт.

O861AB

REINFORCEMENT, radiator header, front

1шт.

SCREW - 5/16" x 7/8" hex. hd. cap, N.C. thread with lockwasher

5шт.

O862AB

REINFORCEMENT, radiator header, rear

2шт.

BOLT - 5/16" x 1" machine with lockwasher

3шт.

SCREW - 5/16" x 7/8" hex. hd. cap, N.C. thread with lockwasher

3шт.

O865AB

GASKET

radiator cap

1шт.

O866AB1

CONNECTOR, overflow tube

1шт.

O1361AB

GASKET

lower radiator inlet elbow

1шт.

O1612AB

GASKET

cylinder inlet and radiator outlet elbow

2шт.

O1613AB

X

HOSE, radiator, 1-1/2" x 5-1/2" long

1шт.

CLAMP, no. 11 hose

2шт.

O1787AB

NIPPLE, radiator drain

1шт.

CAP, 1/4" hexagon head pipe

1шт.

O4290AB

GASKET

upper radiator inlet elbow

1шт.

O4776AB

REINFORCEMENT, radiator header bottom front

1шт.

O4777AB

SHIM

Radiator

2шт.

O4778AB1

SHROUD, radiator lower

1шт.

BOLT, 1/4" x 5/8" round head stove with lockwasher

2шт.

O4779AB1

SHROUD, radiator upper

1шт.

BOLT, 1/4" x 5/8" round head stove with lockwasher

2шт.

O4781AB

SPRING

radiator cap

1шт.

O4786AB

BRACKET, hood clamp front

2шт.

SCREW, 3/8" x 3-3/4" fillister head cap with sq. nut and lockwasher

2шт.

O4797AB

BOLT, hood tie, rear

4шт.

O4823AB1

TUBE, radiator overlow with connector

1шт.

O5669AB1

CORE WITH HEADER FOR FOUR ROW TUBE RADIATOR. Special prior to tractor no. 5313086. Regular for tractors no. 5313086 and after. See O7093AB

1шт.

O7093AB

CORE WITH HEADER FOR 3 ROW TUBE RADIATOR. Prior to tractor no. 5313086. Use O5669AB1

1шт.

O8989AB

X

THERMOSTAT (175 degree opening)

1шт.

1885AA

BRACKET, hood clamp, rear

4шт.

RIVETS, 1/4" x 1/2" wagon box head

8шт.

A1915AA

HOOD, complete (D, DC)

1шт.

A1915AA

HOOD, complete, prior to tractor no. 4611005 - See 3490AA (DO)

1шт.

B2008AA

RADIATOR, complete with O5669AB four row core

1шт.

3018AA

SCREEN, air intake, for 3490AA hood (DO, DV)

1шт.

SCREW, no. 10 x 1/4" Parker-Kalon self tapping round head sheet metal type Z (DO, DV)

3шт.

3490AA

HOOD WITH AIR INTAKE HOOD AND SCREEN. Tractor no. 4611005 and after. See A1915AA (DO, DV)

1шт.
