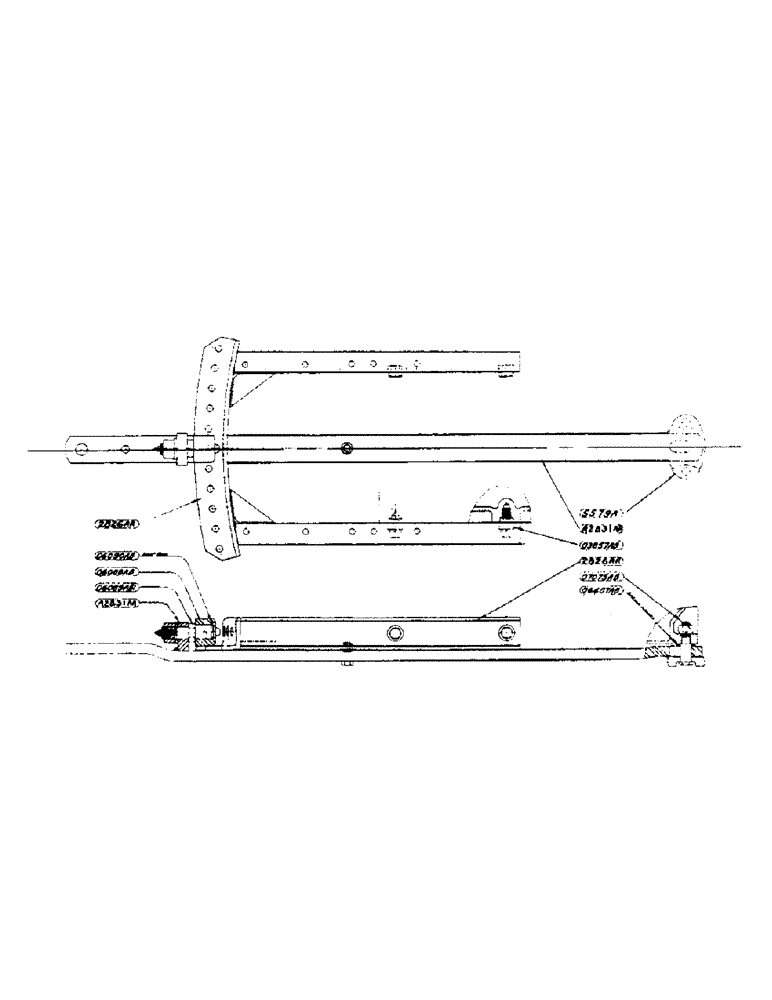

Запчасти Case IH DC-SERIES (172) - DRAW BAR, FOR "DC" TRACTOR NUMBER 4800000 AND AFTER, PLATFORM (09) - CHASSIS

5579A

X

BRACKET, draw bar pivot

1шт.

SCREW, 3/4" x 3-1/2" hexagon head cap, N.F. thread

2шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O3857AB

BUSHING, draw bar support

4шт.

SCREW, 3/4" x 2" hexagon head cap, N.C. thread

4шт.

WASHER, 3/4" standard lock

4шт.

O6088AB

X

ROLLER, draw bar

1шт.

O6089AB1

X

BOLT, draw bar roller

1шт.

FITTING, 1/8" straight Lincoln, no. 5000

1шт.

NUT, 1-1/8" hexagon, light, N.F. thread

1шт.

WASHER, 1-1/8" standard lock

2шт.

O6090AB

X

RING, snap, draw bar roller bolt

1шт.

O6407AB

WASHER, draw bar spring

1шт.

O7075AB

X

BOLT, draw bar pivot

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

2826AA

GUIDE ANGLE WITH SUPPORT FOR DRAW BAR

1шт.

A2831AA

BAR, draw, with roller and bolt (Use 4429AA)

1шт.

4429AA

BAR - draw, complete

1шт.

O5932AB

PLATE, platform, R.H.

1шт.

BOLT, 3/8" x 1" carriage (With hexagon nut)

2шт.

BOLT, 3/8" x 1-1/2" carriage (With hexagon nut)

2шт.

WASHER, 3/8" standard lock

4шт.

O5933AB

PLATE, platform, L.H.

1шт.

BOLT, 3/8" x 1" carriage (With hexagon nut)

2шт.

BOLT, 3/8" x 1-1/2" carriage (With hexagon nut)

2шт.

WASHER, 3/8" standard lock

4шт.

O5936AB

SPACER, platform brace

1шт.

A2549AA

BRACE, platform, with gusset

1шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.C. thread

2шт.

2884AA

BOX, tool

1шт.

2885AA

BOX, tool, with support

1шт.
