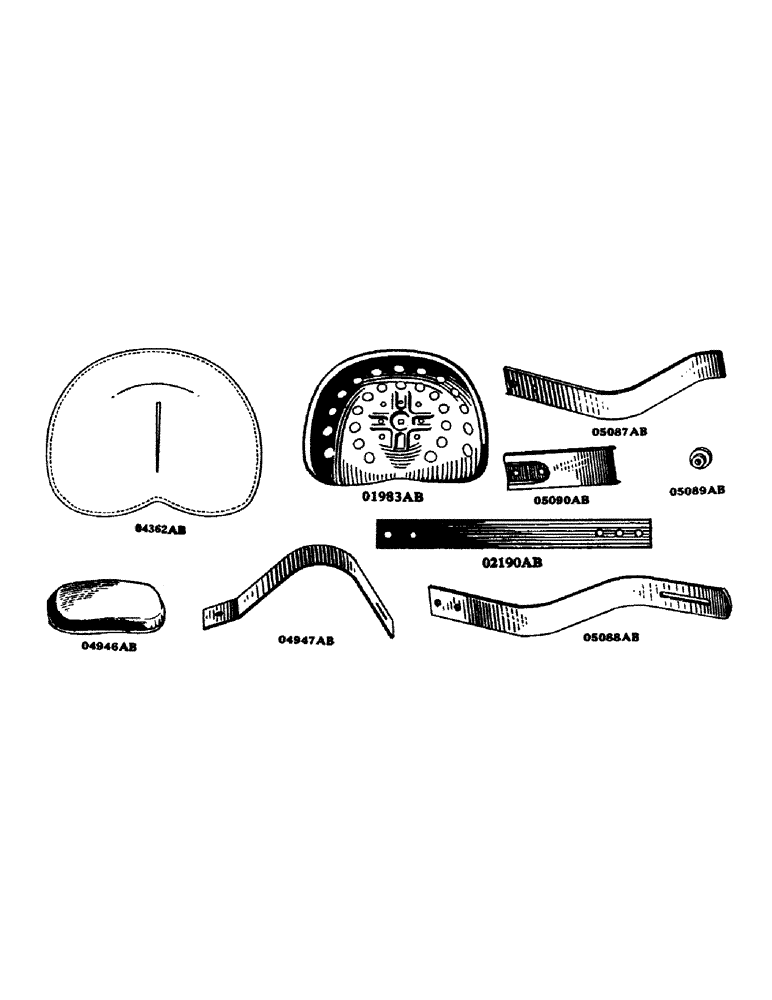

Запчасти Case IH D-SERIES (133) - OPERATORS SEAT, D, DC, DH, DO, DV (09) - CHASSIS

o1983ab

O1983AB

SEAT, operators

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-3/4" carriage, less nut (DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/4" carriage, with nut (D, DO, DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DC, DH)

1шт.

o2190ab

O2190AB

SPRING, seat, long (DO, DV)

1шт.

o2190ab

O2190AB

SPRING, seat, long, Tractor no. 4402685 and after. See O5088AB (D)

1шт.

o4362ab

O4362AB

CUSHION, operator's seat (Special)

1шт.

o4946ab

O4946AB

REST, back, for operator's seat (Special)

1шт.

o4947ab

O4947AB

SPRING, for back rest (Special)

1шт.

o5087ab

O5087AB

SPRING, seat, short (DC, DH)

1шт.

o5087ab

O5087AB

SPRING, seat, short. Prior to tractor no. 4402685. See O5290AB (D)

1шт.

o5088ab

O5088AB

SPRING, seat, long (DC, DH)

1шт.

o5088ab

O5088AB

SPRING, seat, long. Prior to tractor no. 4402685. See O2190AB (D)

1шт.

o5089ab

O5089AB

NUT, clamp, for seat (DC, DH)

1шт.

o5089ab

O5089AB

NUT, clamp, for seat. Prior to tractor no. 4402685 (D)

1шт.

o5090ab

O5090AB

GUARD, seat spring

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/8" x 2" hexagon head cap, N.C. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

2шт.

o5290ab

O5290AB

SPRING, seat, short (DO, DV)

1шт.

o5290ab

O5290AB

SPRING, seat, short. Tractor no. 4402685 and after. See O5087AB (D)

1шт.

o5637ab

O5637AB

SUPPORT, seat spring (Used with O5087AB and O5088AB) (DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/8" x 1-3/4" hexagon head cap, N.C. thread (DC, DH)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock (DC, DH)

1шт.
