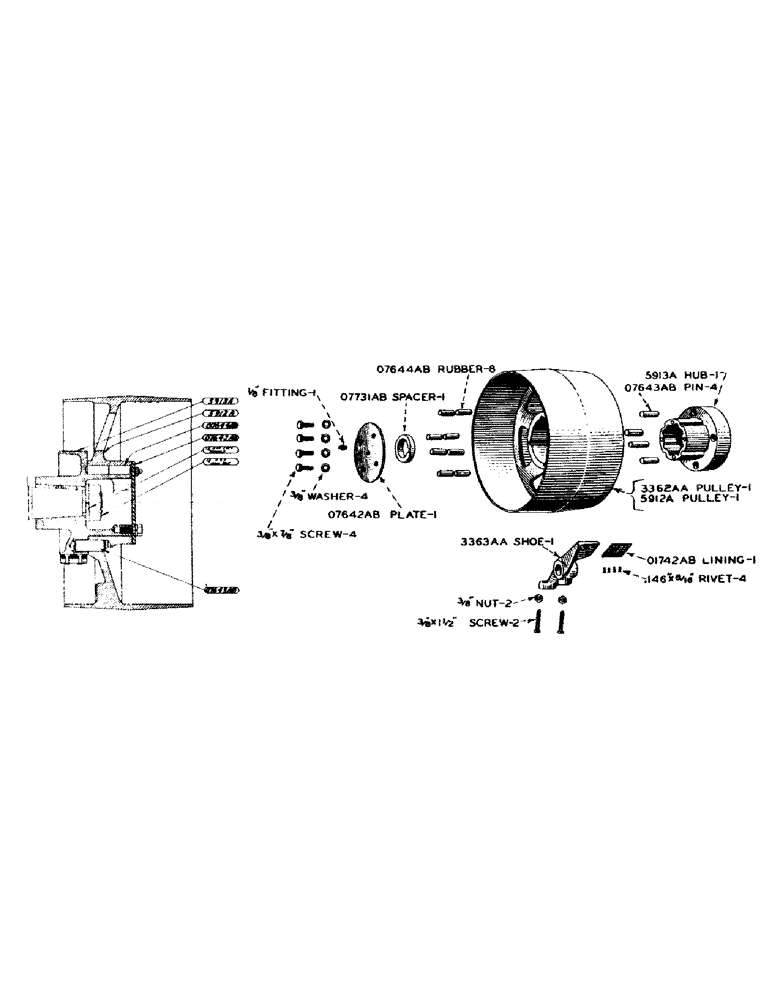

Запчасти Case IH D-SERIES (058[A]) - PARTS TO INSTALL A 5912A RESILIENT BELT PULLEY ON MODEL "D" TRACTOR EQUIPPED WITH OVERSIZE RUBBER TIRES (06) - POWER TRAIN

5912a

5912A

PULLEY, belt (12-14" diameter x 7-1/4" face). See 3362AA

1шт.

5913a

5913A

HUB, belt pulley

1шт.

5921a

5921A

SHOE, belt pulley brake. Use 3363AA

1шт.

o1742ab

O1742AB

LINING, belt pulley brake shoe

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, .146" x 8/16" steel tubular, no. 1586

4шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, .146" x 8/16" steel tubular, no. 1586

4шт.

o7642ab

O7642AB

PLATE, belt pulley

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight - Lincoln no. 5000

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/8" x 7/8" hexagon head cap, N.C. thread

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock

4шт.

o7643ab

O7643AB

PIN, belt pulley driving

4шт.

o7644ab

O7644AB

RUBBER, belt pulley

8шт.

o7731ab

O7731AB

SPACER, belt pulley shaft

1шт.

3362aa

3362AA

PULLEY, resilient belt, complete. Consists of 1 - 5912A pulley, 1 - 5913A hub, 1 - O7642AB plate, 4 - O7643AB pins, 8 - O7644AB rubbers, 1/8" fitting, 4-3/4" x 7/8" cap screws and 4-3/8" lockwashers

1шт.

3363aa

3363AA

SHOE, belt pulley brake, with lining

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/8" hexagon, N.C. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/8" x 1-1/2" square head cup point set

2шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 3/8" x 2" type 5, groove

1шт.

5501a

5501A

HUB, rear wheel extension

2шт.

o5541ab

O5541AB

BOLT, rear wheel flange

12шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/4" hexagon, light, N.F. thread

12шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" standard lock

12шт.

3402aa

3402AA

SPACERS, set of wheel (1-1/4" extension hubs) to provide clearance between belt pulley and tire, for tractors equipped with oversize rubber tires. Consists of 2 - 5501A, 12 - O5541AB, 12 - 3/4" hex nuts and 12 - 3/4" lockwashers

1шт.
