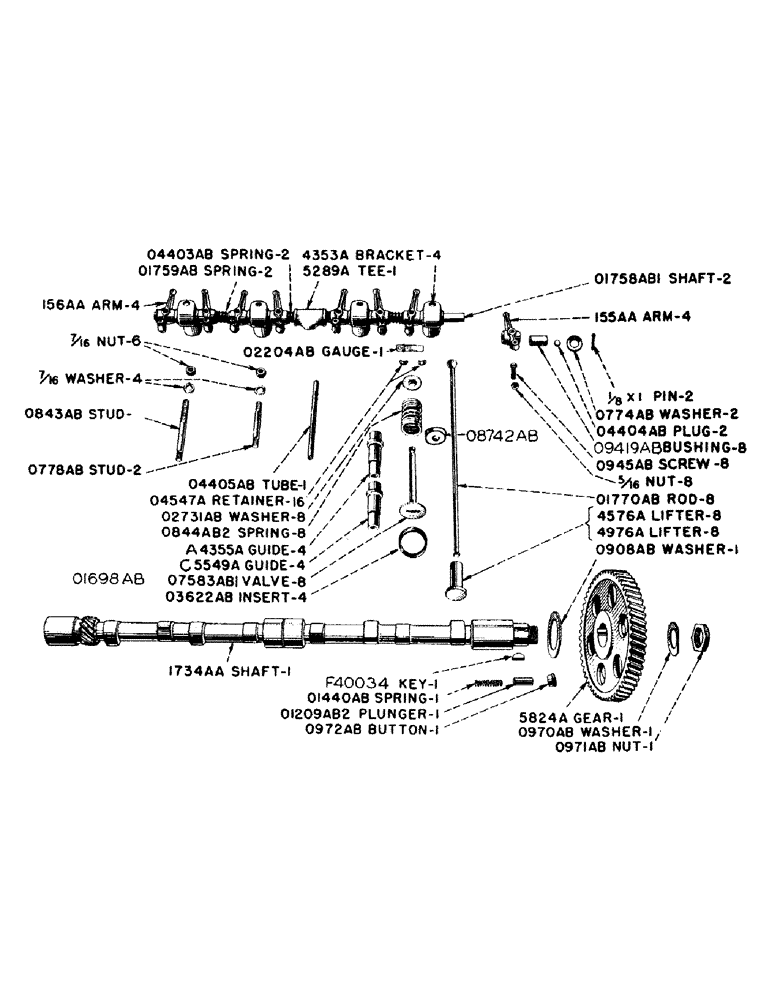

Запчасти Case IH D-SERIES (010) - VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

f40034

F40034

KEY

- Woodruff (On 1734AA camshaft)

1шт.

4337a

4337A

EXCITER

GEAR - camshaft (Use 5824A)

1шт.

4353a

4353A

BRACKET - valve rocker arm shaft

4шт.

4355a

4355A

GUIDE - intake valve (Use A4355A and O8742AB)

1шт.

a4355a

A4355A

GUIDE - intake valve

4шт.

4576a

4576A

LIFTER - push rod (See 4976A)

8шт.

4976a

4976A

LIFTER - push rod (.010" oversize) (See 4576A)

8шт.

5289a

5289A

TEE - valve rocker arm oil supply

1шт.

a5549a

A5549A

X

GUIDE - exhaust valve (Use C5549A and O8742AB)

1шт.

b5549a

B5549A

X

GUIDE - exhaust valve (Use C5549A and O8742AB)

1шт.

a26106

A26106

GUIDE

- exhaust valve (Replaces C5549A)

4шт.

5824a

5824A

GEAR - camshaft

1шт.

o4547a

O4547A

RETAINER - valve spring, for O1698AB1 and O7583AB1 valves (See O8974AB)

16шт.

o774ab

O774AB

X

WASHER - valve rocker arm shaft

2шт.

o778ab

O778AB

STUD - valve rocker arm bracket, short

2шт.

nss

NSS

NOT SOLD SEPARAT

7/16" N.F. HEX NUT W/LOCKWASHER

2шт.

o843ab

O843AB

X

STUD - valve rocker arm bracket, long

2шт.

nss

NSS

NOT SOLD SEPARAT

7/16" N.F. HEX NUT

4шт.

nss

NSS

NOT SOLD SEPARAT

7/16" STD. LOCKWASHER

2шт.

o844ab2

O844AB2

SPRING - inlet and exhaust valve

8шт.

o908ab

O908AB

X

WASHER - thrust, camshaft

1шт.

o945ab

O945AB

X

SCREW - push rod adjusting

8шт.

nss

NSS

NOT SOLD SEPARAT

5/16" SEMI-FINISH JAM NUT

8шт.

o970ab

O970AB

X

WASHER - lock, camshaft nut

1шт.

o971ab

O971AB

X

NUT - camshaft, 1-1/8" - 12 hex

1шт.

o972ab

O972AB

BUTTON - thrust, camshaft

1шт.

o1209ab2

O1209AB2

PLUNGER - thrust, camshaft

1шт.

o1440ab

O1440AB

X

SPRING - camshaft thrust plunger

1шт.

o1698ab1

O1698AB1

VALVE - inlet, for A2399AA and A2873AA cyl. heads (See O8971AB)

4шт.

o1758ab1

O1758AB1

SHAFT - valve rocker arm

2шт.

nss

NSS

NOT SOLD SEPARAT

1/8" X 1" COTTER PIN

2шт.

o1759ab

O1759AB

X

SPRING - rocker arm shaft, long (See O4403AB)

2шт.

o1770ab

O1770AB

X

ROD - push

8шт.

o2731ab

O2731AB

X

WASHER - valve spring retainer, for O1698AB1 valve (See O8973AB)

8шт.

o3622ab

O3622AB

INSERT - exhaust valve seat (See O8975AB)

4шт.

o4403ab

O4403AB

X

SPRING - rocker arm shaft, short (See O1759AB)

2шт.

o4404ab

O4404AB

X

PLUG - valve rocker arm shaft

2шт.

o4405ab

O4405AB

TUBE - rocker arm oil feed

1шт.

o7583ab1

O7583AB1

VALVE - exhaust (See O8972AB)

4шт.

o8742ab

O8742AB

X

GUIDE - valve spring

8шт.

o8971ab

O8971AB

VALVE - inlet (Used with 4092AA cylinder head) (See O1698AB1)

4шт.

o8972ab

O8972AB

VALVE - exhaust (Used with 4092AA cylinder head) (See O7583AB1)

4шт.

o8973ab

O8973AB

WASHER - inlet valve spring retainer (For O8971AB valve) (See O2731AB)

4шт.

o8974ab

O8974AB

X

LOCK - valve spring retaining (For O8971AB and O8972AB valves) (See O4547A)

16шт.

o8975ab

O8975AB

INSERT - exhaust valve seat (Used with 4092AA cylinder head) (See O3622AB)

4шт.

o9419ab

O9419AB

BUSHING - valve rocker arm

8шт.

155aa

155AA

X

ARM - valve rocker, with bushing, R.H.

4шт.

156aa

156AA

ARM - valve rocker, with bushing, L.H.

4шт.

1734aa

1734AA

CAMSHAFT - with plunger and spring

1шт.

4533aa

4533AA

ROTOCAP - exhaust valve (Used with O7583AB1 valve) (See 4715AA)

4шт.

4715aa

4715AA

ROTOCAP - exhaust valve (Used with O8972AB valve) (See 4533AA)

4шт.
