(093) - 42" OPEN TYPE STEEL REAR WHEELS, FOR "D" TRACTORS ONLY

Запчасти Case IH D-SERIES (093) - 42" OPEN TYPE STEEL REAR WHEELS, FOR "D" TRACTORS ONLY (06) - POWER TRAIN

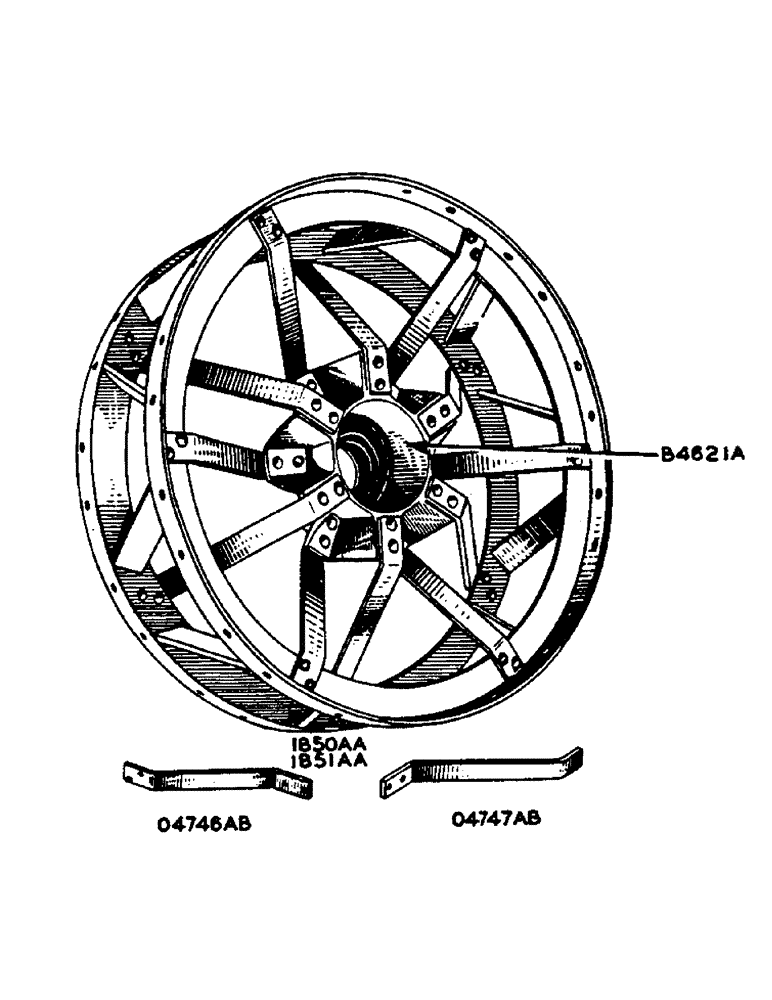

Схема запчастей Case IH D-SERIES - (093) - 42" OPEN TYPE STEEL REAR WHEELS, FOR "D" TRACTORS ONLY (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

B4621A

HUB - rear wheel

2шт.

O4746AB

SPOKE - rear wheel, inner

12шт.

RIVET - 1/2" x 2" rd. hd.

24шт.

RIVET - 1/2" x 2-1/4" rd. hd.

24шт.

O4747AB

SPOKE - rear wheel, outer

12шт.

RIVET - 1/2" x 2" rd. hd.

24шт.

RIVET - 1/2" x 2-1/4" rd. hd.

24шт.

1850AA

WHEEL - rear, complete, R.H.

1шт.

1851AA

WHEEL - rear, complete, L.H.

1шт.
