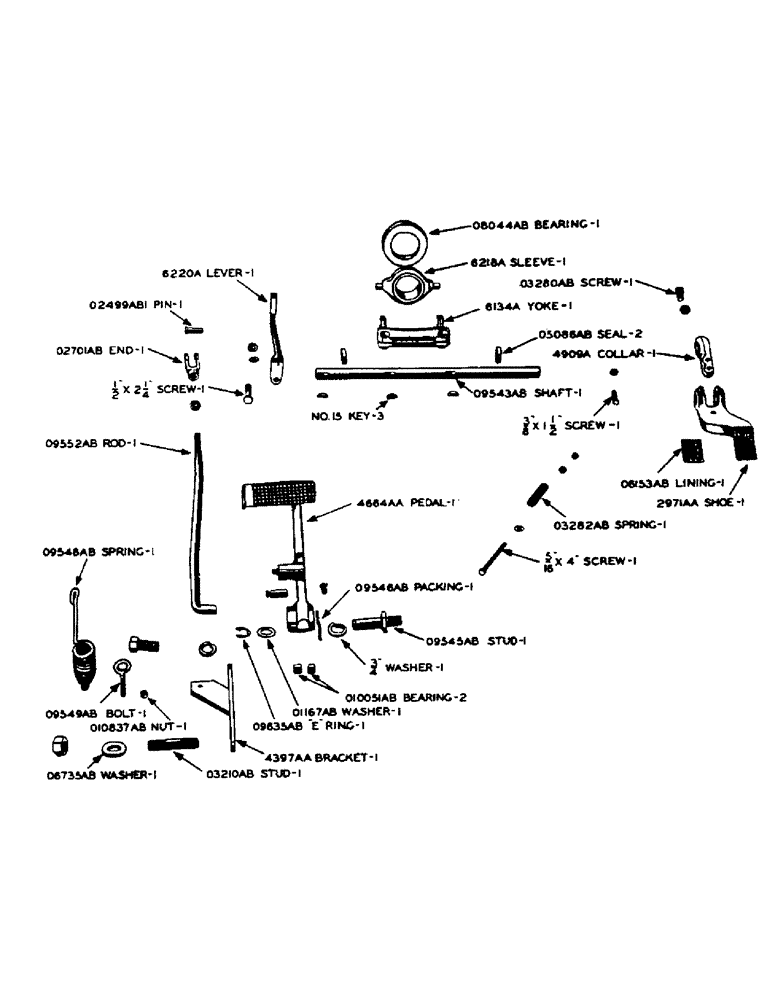

Запчасти Case IH D-SERIES (065) - FOOT CLUTCH THROWOUT PARTS, FOR D, DC-3, DC-4 TRACTORS NO. 8025740 AND AFTER (06) - POWER TRAIN

4909A

COLLAR - clutch brake adjusting

1шт.

5/16" x 4" N.F. hex hd. cap screw, w/dbl. hex nut and plain washer

1шт.

3/8" x 1-1/2" N.C. flat point set screw, w/hex jam nut

1шт.

5809A

SHOE - clutch brake (Use 2971AA)

1шт.

6134A

YOKE - clutch throwout

1шт.

3/8" x 1-1/4" N.C. hex hd. cap screw, w/lockwasher

2шт.

6218A

SLEEVE - clutch release bearing

1шт.

6220A

LEVER - clutch throwout shaft

1шт.

1/2" x 2-1/4" N.F. hex hd. cap screw, w/hex nut and lockwasher

1шт.

6241A

PEDAL - (Use 4664AA)

1шт.

O1167AB

X

WASHER - (1-1/4" O.D. x 49/64" I.D. #14 ga.) - for O9545AB stud

1шт.

O2499AB1

X

PIN - clutch throwout rod yoke end

1шт.

1/8" x 1" cotter pin

1шт.

O2701AB

X

YOKE END - clutch throwout rod

1шт.

O3210AB

STUD - for 4397AA bracket

1шт.

O3280AB

SET SCREW - clutch brake adjusting collar

1шт.

1/2" N.C. hex jam nut

1шт.

O3282AB

SPRING - clutch brake shoe

1шт.

O5086AB

X

OIL SEAL - clutch throwout shaft

2шт.

O6153AB

X

LINING - clutch brake shoe

1шт.

.146 x 10/16" brass tubular rivet #2561

4шт.

O6735AB

WASHER - (1-9/16" O.D. x 25/32" I.D. x 3/16") - for O3210AB stud

1шт.

O8044AB

BEARING - clutch release (Aetna no. A1511)

1шт.

O9543AB

SHAFT - clutch throwout

1шт.

No. 15 Woodruff key

3шт.

O9545AB

STUD - clutch pedal mounting

1шт.

3/4" std. lockwasher

1шт.

O9546AB

PACKING - felt, clutch pedal

1шт.

O9548AB

SPRING - clutch pedal assisting

1шт.

O9549AB

EYEBOLT - clutch pedal assisting spring

1шт.

O9552AB

ROD - clutch throwout

1шт.

3/16" x 1-1/4" cotter pin

1шт.

1/2" N.F. hex light nut

1шт.

O9635AB

X

"E" RING - retaining, for O9545AB mounting stud

1шт.

O10051AB

X

BEARING - needle, for clutch pedal (Torrington no. B128)

2шт.

O10837AB

STOP NUT - elastic, 5/16" - 24 thrd., for O9549AB eyebolt

1шт.

2971AA

SHOE - brake, with lining

1шт.

4397AA

BRACKET - clutch pedal assisting spring

1шт.

3/4" x 1-1/2" N.C. hex hd. cap screw, w/lockwasher

1шт.

4664AA

PEDAL - foot clutch, with 2-O10051AB bearings, 1/2" x 1-1/2" type 7 groove pin and 1/8" - 45 degree Lincoln fitting no. 5200

1шт.
