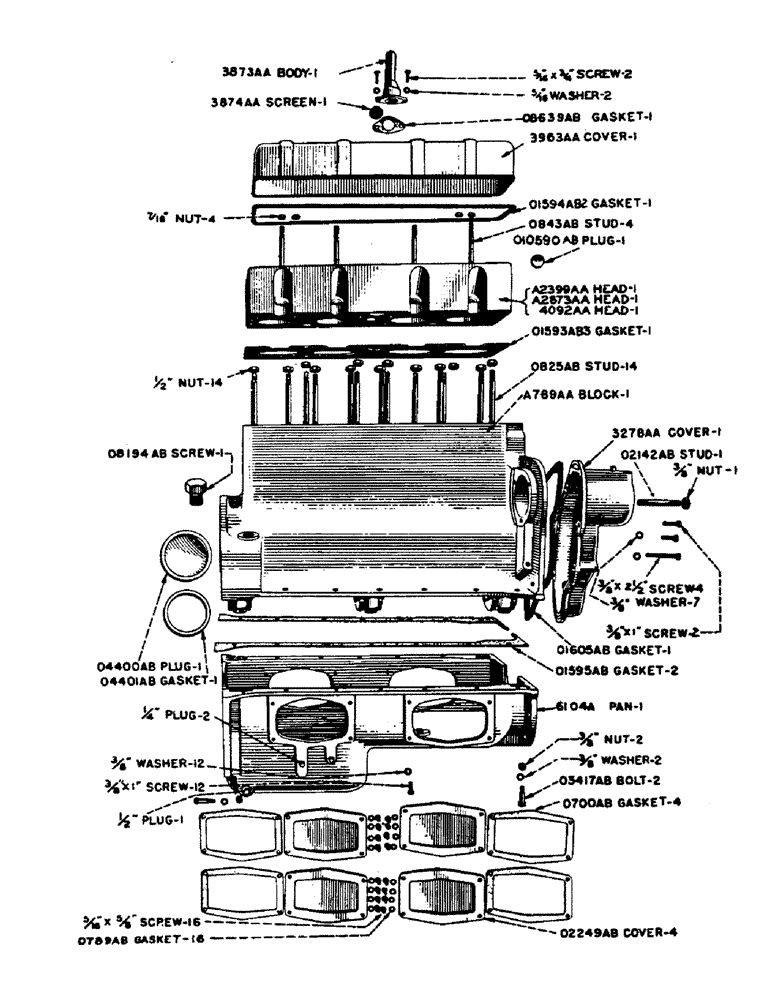

Запчасти Case IH D-SERIES (008) - CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN, CYLINDER HEAD, D, DC, DO, DV (02) - ENGINE

A5505A

BRACKET

HEAD - cylinder. (Use A2399AA)

1шт.

A5576A

HEAD - cylinder. (Use A2873AA)

1шт.

6128A

HEAD - cylinder. (Use 4092AA)

1шт.

O825AB

X

STUD - cylinder head

14шт.

NUT - 1/2" hex, light, N.F. thread

14шт.

O843AB

X

STUD - valve rocker arm

4шт.

NUT - 7/16" hex, light, N.F. thread

4шт.

A26561

GASKET

- cylinder head (Replaces O1593AB3)

1шт.

O1594AB2

X

GASKET - cylinder head cover

1шт.

O8639AB

X

GASKET - breather body

1шт.

O10590AB

X

PLUG - cylinder head (1-5/8" dia.)

1шт.

A2399AA

HEAD - cylinder, with valve guides and valve inserts (Gasoline) (See 4092AA)

1шт.

A2873AA

HEAD - cylinder, with valve guides and valve inserts (Low cost fuel) (See 4092AA)

1шт.

3873AA

BODY - breather

1шт.

SCREW - 5/16" x 3/4" hex hd. cap, N.C. thread

2шт.

WASHER - 5/16" std. lock

2шт.

3874AA

SCREEN - breather

1шт.

3963AA

COVER - cylinder head, with breather

1шт.

4092AA

HEAD - cylinder, with valve guides and valve inserts. (Used with LP-gas and high altitude with A7493 low cost fuel sleeve assembly) (See A2399AA and A2873AA)

1шт.

B4848A

BLOCK - cylinder. (Use A789AA)

1шт.

O4400AB

PLUG - starting motor opening, cylinder block

1шт.

O4401AB

GASKET - starting motor opening plug, cylinder block

1шт.

O8194AB

SCREW - cap, starting motor screw opening, cylinder block

1шт.

A789AA

BLOCK - cylinder, with bearing caps, liners, shims and screws, less cylinder sleeves

1шт.

BUSHING - 3/8" x 1/8" reducing, cylinder block

1шт.

PLUG - 1/8" sq. hd. pipe, cylinder block

1шт.

PLUG - 1/8" slotted hd. pipe, cylinder block

2шт.

PLUG - 1/4" sq. hd. pipe, cylinder block

1шт.

PLUG - 3/8" ctsk. hd. pipe, cylinder block

1шт.

6104A

PAN - engine oil

1шт.

PLUG - 1/4" sq. hd. pipe, oil pan

2шт.

PLUG - 1/2" sq. hd. pipe, oil pan

1шт.

SCREW - 3/8" x 1" hex hd. cap, N.C. thread, oil pan

12шт.

WASHER - 3/8" std. lock, oil pan

12шт.

O700AB

X

GASKET - oil pan hand hole cover

4шт.

O789AB

GASKET

- oil pan hand hole screw

16шт.

O1595AB

X

GASKET - oil pan to cylinder block

2шт.

O2249AB

COVER - oil pan hand hole

4шт.

SCREW - 5/16" x 5/8" hex hd. cap, N.C. thread, oil pan

16шт.

O2867AB

STUD - to plug holes in oil pan (DC)

3шт.

O3417AB

BOLT - dowel, oil pan to cylinder block

2шт.

NUT - 3/8" hex, light, N.F. thread, oil pan

2шт.

WASHER - 3/8" std. lock, oil pan

2шт.

A4584A

COVER - timing gear. (Use 3278AA)

1шт.

O1605AB

X

GASKET - timing gear cover

1шт.

O2142AB

STUD - timing gear cover

1шт.

NUT - 3/8" hex, N.C. thread, timing gear cover

1шт.

3278AA

COVER - timing gear, with camshaft thrust button

1шт.

SCREW - 3/8" x 2-1/2" hex hd. cap, N.C. thread, timing gear cover

4шт.

SCREW - 3/8" x 1" hex hd. cap, N.C. thread, timing gear cover

2шт.

WASHER - 3/8" std. lock, timing gear cover

7шт.

PLUG - 1/8" sq. hd. pipe, timing gear cover

1шт.

3596AA

GASKET KIT

1шт.

GASKETS - complete set of engine (Consists of: 4-O700AB, 16- O789AB, 1-O801AB, 1-O806AB1, 1-O865AB, 1-O889AB1, 2-O891AB, 1- O966AB, 1-O1116AB1, 1-O1189AB, 1-O1361AB, 1-O1593AB3, 1-O1594AB2, 2-O1595AB, 1-O1605AB, 2-O1612AB, 1-O1760AB, 3-O2846AB, 1-O3020AB, 1-O3272AB, 1-O3450AB, 1-O4290AB, 1-O5581AB, 1-O5586AB and 1-O7299AB)

1шт.

4056AA

GASKET

S - set of replacement after valve grinding job (Consists of: 2-O891AB, 1-O1361AB, 1-O1593AB3, 1-O1594AB2, 1-O4290AB)

1шт.
